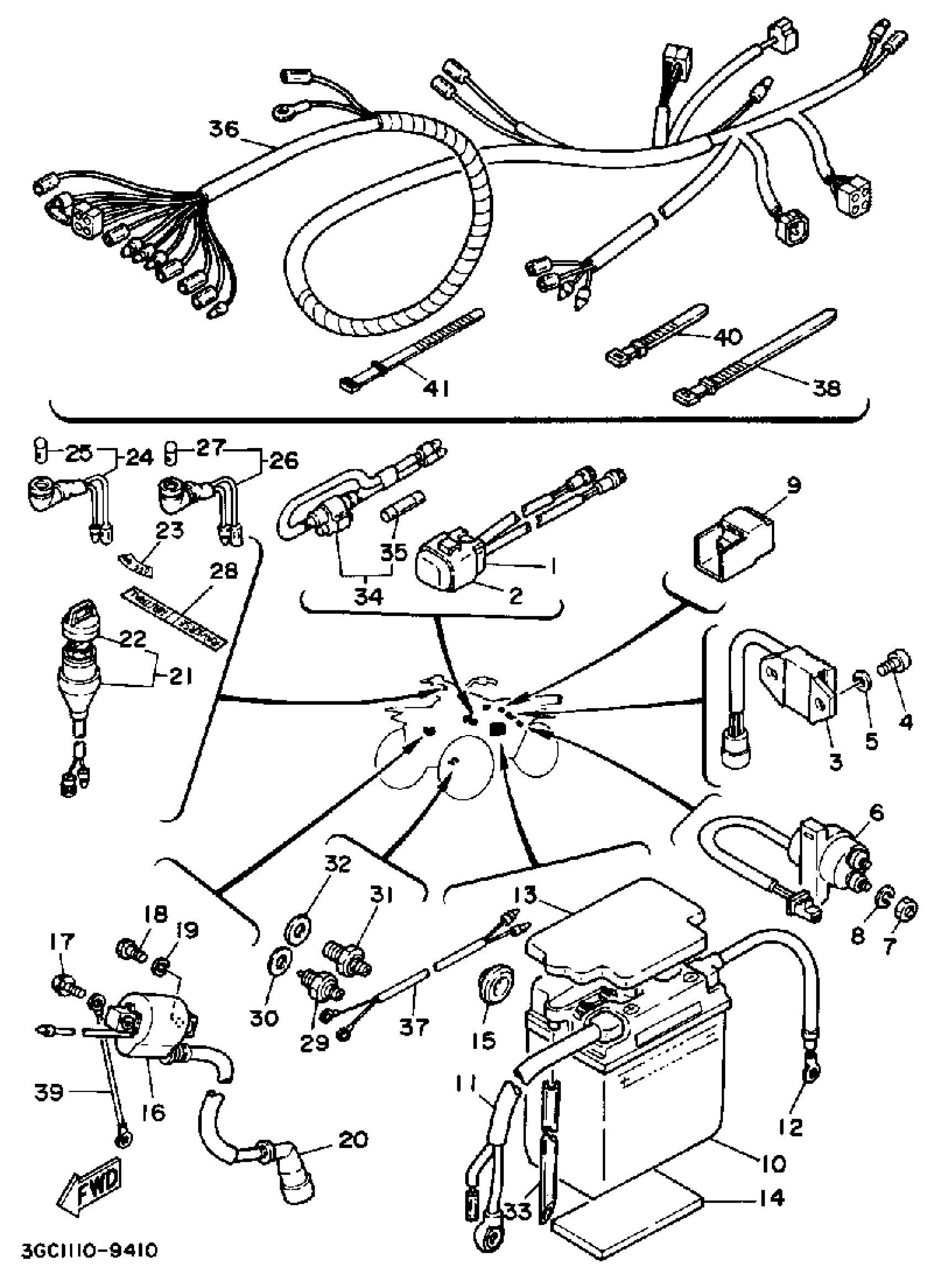

Yamaha YFM200DXW (MOTO-4) 1989 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
29U-85540-21-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
RECTIFIER/REG ASSEMBLYREGULATOR ASSEMBLY
3GC-81960-00-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
11
WIRE, PLUS LEAD
29U-82115-00-00
Unavailable
12
WIRE, MINUS LEAD
29U-82116-00-00
Unavailable
13
COVER, BATTERY
24W-82129-00-00
Unavailable
16
IGNITION COIL ASSY
1UY-82310-41-00
Unavailable
17
BOLT (21V)
90109-06723-00
Unavailable
18
BOLT, HEXAGON
97017-06020-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
PLUG CAP ASSY
3NS-82370-00-00
Unavailable
21
MAIN SWITCH ASSY
2FH-82510-09-00
Unavailable
22
CAP, KEY
24W-82579-00-00
Unavailable
23
LABEL
29U-83585-10-00
Unavailable
24
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
25
BULB (12V-3.4W)
123-83516-21-00
Unavailable
26
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
27
BULB (12V-3.4W)
123-83516-21-00
Unavailable
28
LABEL
52H-83585-00-00
Unavailable
29
NEUTRAL SWITCH ASSY
4GY-82540-10-00
Unavailable
30
GASKET (5R6)
90430-10171-00
Unavailable
31
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
32
WASHER, PLATE
90201-12790-00
Unavailable
33
PIPE, BREATHER
3L5-82112-00-00
Unavailable
34
FUSE HOLDER ASSY
29U-82150-00-00
Unavailable
35
FUSE (10A)
1E6-82151-00-00
Unavailable
36
WIRE HARNESS ASSEMBLY
3GC-82590-00-00
Unavailable
37
WIRE, LEAD
52G-82541-00-00
Unavailable
38
BAND, SWITCH CORD
437-83936-11-00
Unavailable
39
WIRE, MINUS LEAD
89H-82116-00-00
Unavailable
40
BAND, SWITCH CORD
437-83936-01-00
Unavailable
41
BAND, SWITCH CORD
437-83936-11-00
Unavailable
