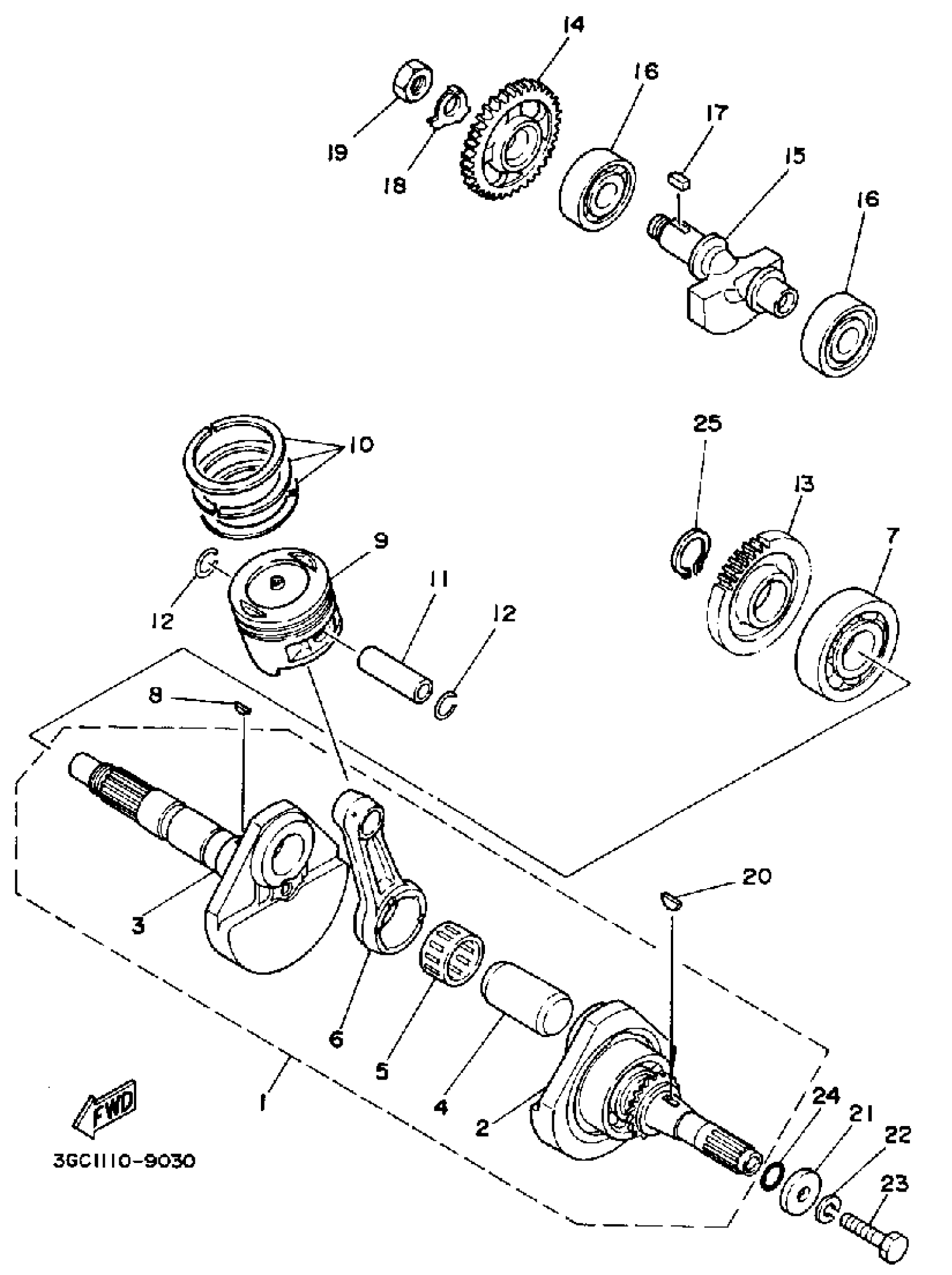

Yamaha YFM200DXW (MOTO-4) 1989 CRANKSHAFT-PISTON Diagram
#
Description
Price
1
. CRANKSHAFT ASSEMBLY
24W-11400-01-00
Unavailable
2
. CRANK 1
24W-W1141-00-00
Unavailable
3
CRANK 2
(21V-11422-01-00)
Unavailable
4
PIN, CRANK 1
5H0-11681-00-00
Unavailable
6
ROD, CONNECTING
15A-11651-00-00
Unavailable
9
PISTON (STD)
21V-11631-00-Y0
Unavailable
9
PISTON 2 O/S 0.50
21V-11636-00-00
Unavailable
9
PISTON 4 O/S 1.00
21V-11638-00-00
Unavailable
10
PISTON RING SET (1.00MM O/S)
15A-11607-00-00
Unavailable
12
CIRCLIP (1L9)
93450-17044-00
Unavailable
13
GEAR, DRIVE
2HT-11536-00-00
Unavailable
14
GEAR, BALANCE WT
5H0-11531-00-00
Unavailable
15
WEIGHT 1
15A-11454-00-00
Unavailable
16
BEARING
93306-30443-00
Unavailable
17
KEY, STRAIGHT(34K)
90282-05065-00
Unavailable
18
WASHER, LOCK (15Y)
90215-14205-00
Unavailable
19
NUT (5H0)
90170-14284-00
Unavailable
20
KEY, WOODRUFF
90280-05001-00
Unavailable
21
WASHER, PLATE
90201-10058-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
BOLT (21V)
90101-10568-00
Unavailable
24
O-RING (538)
93210-16290-00
Unavailable
25
CIRCLIP
99009-26400-00
Unavailable
