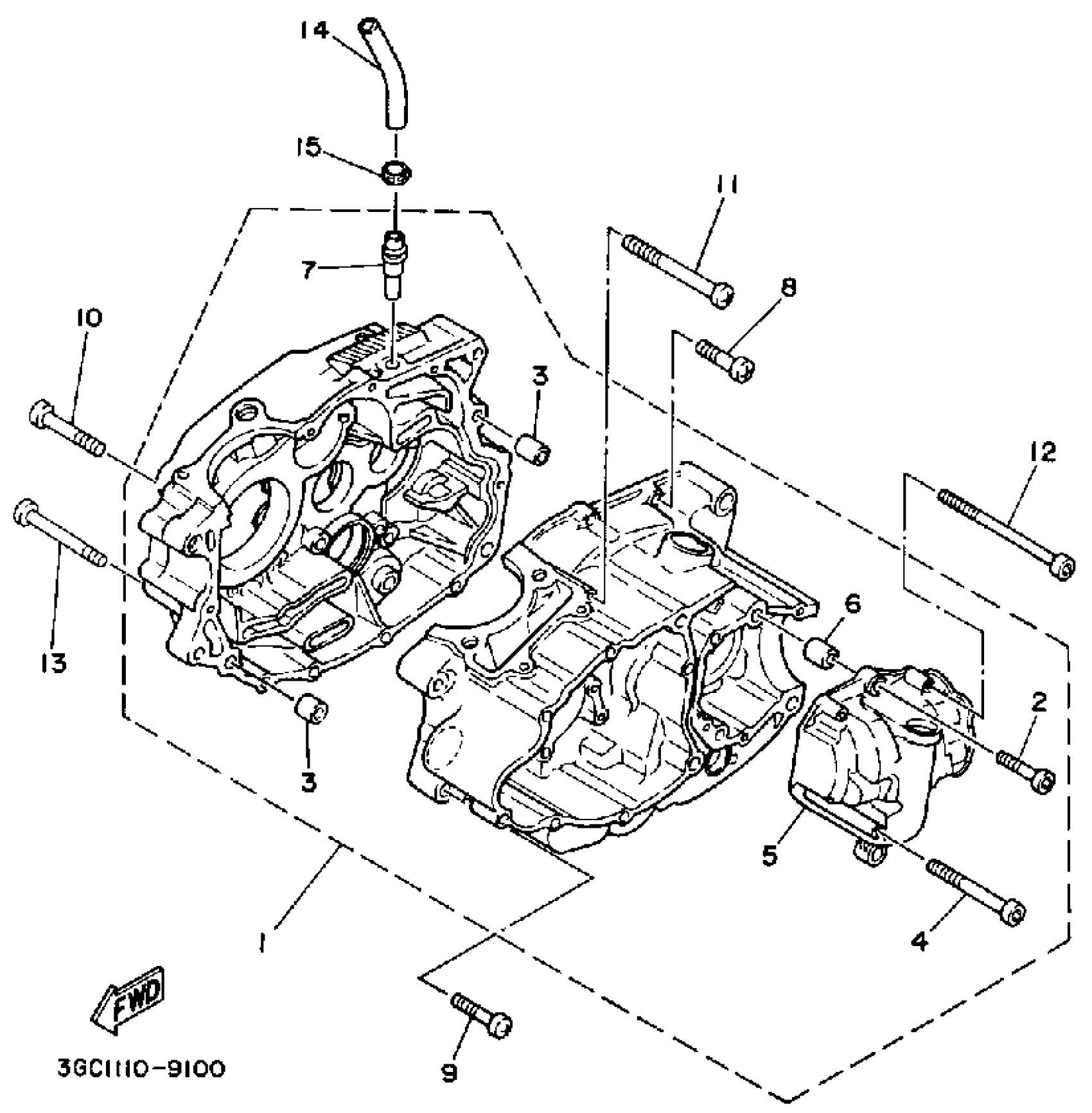

Yamaha YFM200DXW (MOTO-4) 1989 CRANKCASE Diagram

#

Description
Price

1

INACTIVE PART NUMBER

3GC-15100-00-00

Unavailable

2

BOLT,SOCKET

91317-06035-00

$3.27

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

COVER, GENERATOR

(3GC-15415-09-00)

Unavailable

6

PIN, DOWEL

99530-12016-00

$3.85

7

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

8

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

9

SCREW PAN HEAD

98580-06040-00

$5.75

10

SCREW, BIND (JH1)

98580-06560-00

Unavailable

11

SCREW, PAN

98507-06085-00

$4.82

12

BOLT

91317-06160-00

Unavailable

13

SCREW PAN HEAD

98580-06575-00

$10.79

14

HOSE

90445-121E3-00

Unavailable

15

CLIP(3YX)

90467-13133-00

$4.92
