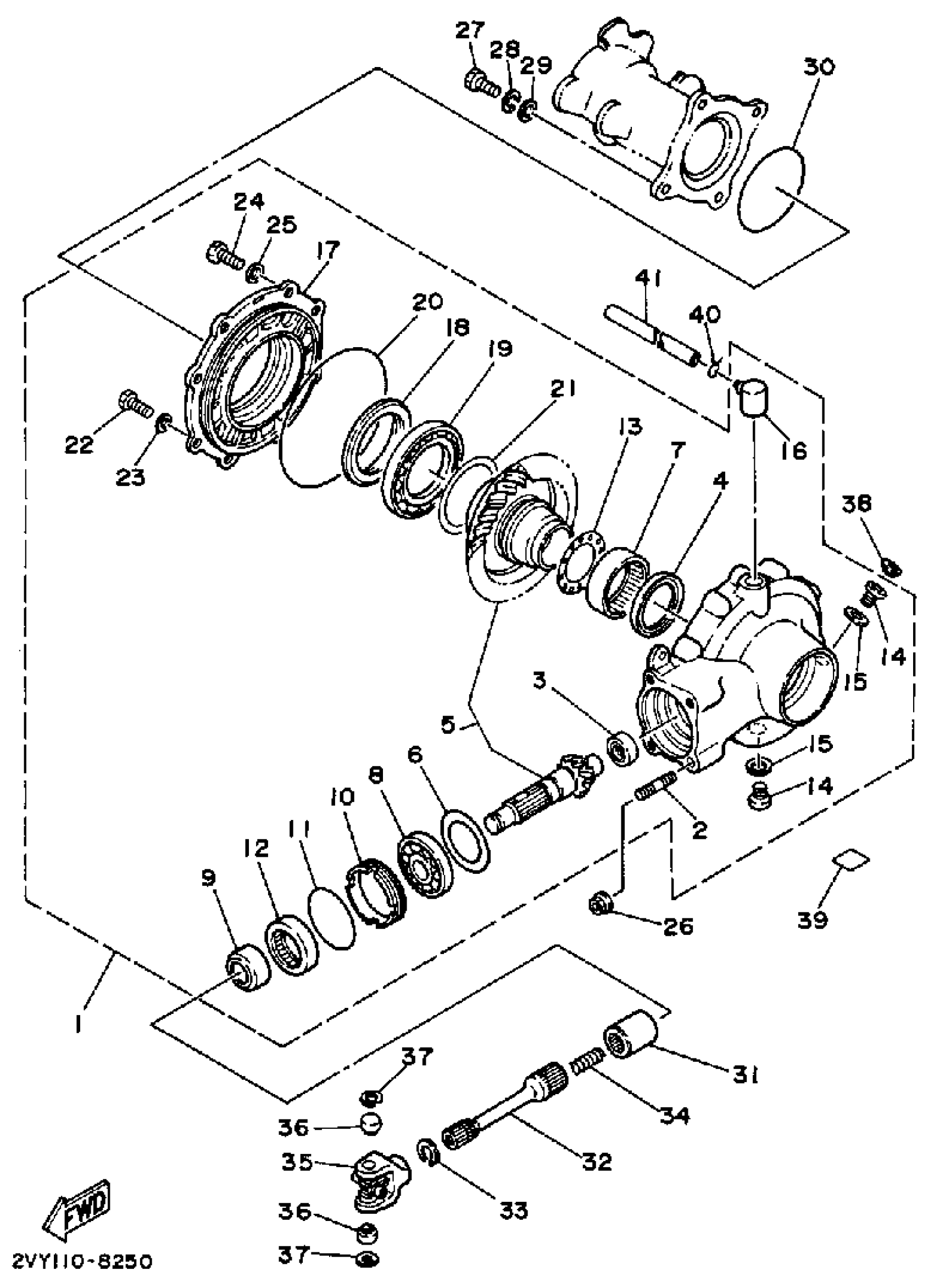

Yamaha YFM200DXU (MOTO-4) 1988 DRIVE SHAFT Diagram

#

Description
Price

1

RR AXL GR CASE ASSEMBLYCASE ASSEMBLY

2VY-46101-00-00

Unavailable

2

BOLT, STUD(2GG)

95617-08620-00

$7.49

3

. BEARING ASSY

24W-46102-00-00

Unavailable

4

OIL SEAL (24W)

93101-52116-00

$16.99

5

. RING GEAR SET

24W-Y4612-00-00

Unavailable

6

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

6

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

6

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

6

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

6

SHIM, THRUST

1J7-17537-Y0-60

Unavailable

7

. BEARING, CYLINDER17

93317-55542-00

Unavailable

7

BEARING, CYLINDRICAL(3HN)

93317-85569-00

$86.99

8

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

9

COLLAR (24W)

90387-255H9-00

Unavailable

10

RETAINER, BEARING

29U-46125-00-00

$92.99

11

O-RING (11H)

93210-59531-00

Unavailable

12

OIL SEAL (4H7)

93101-38098-00

Unavailable

13

WASHER, THRUST

24W-46118-00-12

Unavailable

13

WASHER, THRUST

24W-46118-00-14

Unavailable

13

WASHER, THRUST

24W-46118-00-16

Unavailable

13

WASHER, THRUST

24W-46118-00-16

Unavailable

13

WASHER, THRUST

24W-46118-00-18

Unavailable

13

WASHER, THRUST

24W-46118-00-20

Unavailable

14

PLUG, STRAIGHT SCREW

90340-14002-00

Unavailable

15

GASKET

214-11198-01-00

Unavailable

16

BREATHER

2H7-17591-01-00

Unavailable

17

HOUSING, BEARING

(29U-46152-00-00)

Unavailable

18

OIL SEAL (22U)

93102-65277-00

Unavailable

19

BEARING, CYLINDRICAL (22U)

93316-01301-00

Unavailable

20

O-RING (1J7)

93211-44348-00

Unavailable

21

. SHIM, RING GEAR (025T)

24W-46117-00-25

Unavailable

21

. SHIM, RING GEAR (030T)

24W-46117-00-30

Unavailable

21

. SHIM, RING GEAR (040T)

24W-46117-00-40

Unavailable

21

. SHIM, RING GEAR (050T)

24W-46117-00-50

Unavailable

22

BOLT (682)

97013-08025-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

BOLT(6TD)

97017-10025-00

Unavailable

25

WASHER, PLATE

92990-10600-00

Unavailable

26

NUT, FLANGE

95704-08500-00

Unavailable

27

BOLT(6TD)

97017-10025-00

Unavailable

28

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

29

WASHER, PLATE

92990-10600-00

Unavailable

30

O-RING (173)

93210-85075-00

Unavailable

31

COUPLING, GEAR

2HR-46123-00-00

Unavailable

32

SHAFT, DRIVE

2VY-46172-00-00

Unavailable

33

CIRCLIP(1AR)

99009-20400-00

Unavailable

34

SPRING, COMPRESSION

90501-127H4-00

Unavailable

35

CROSS JOINT COMP.

1EV-46180-00-00

Unavailable

36

BEARING, CYLINDER. (1EV)

93311-21059-00

Unavailable

37

CIRCLIP(1EV)

99009-20500-00

Unavailable

38

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

39

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable

40

CLIP (1J7)

90467-07029-00

Unavailable

41

HOSE (L1700)

90445-070G6-00

Unavailable
