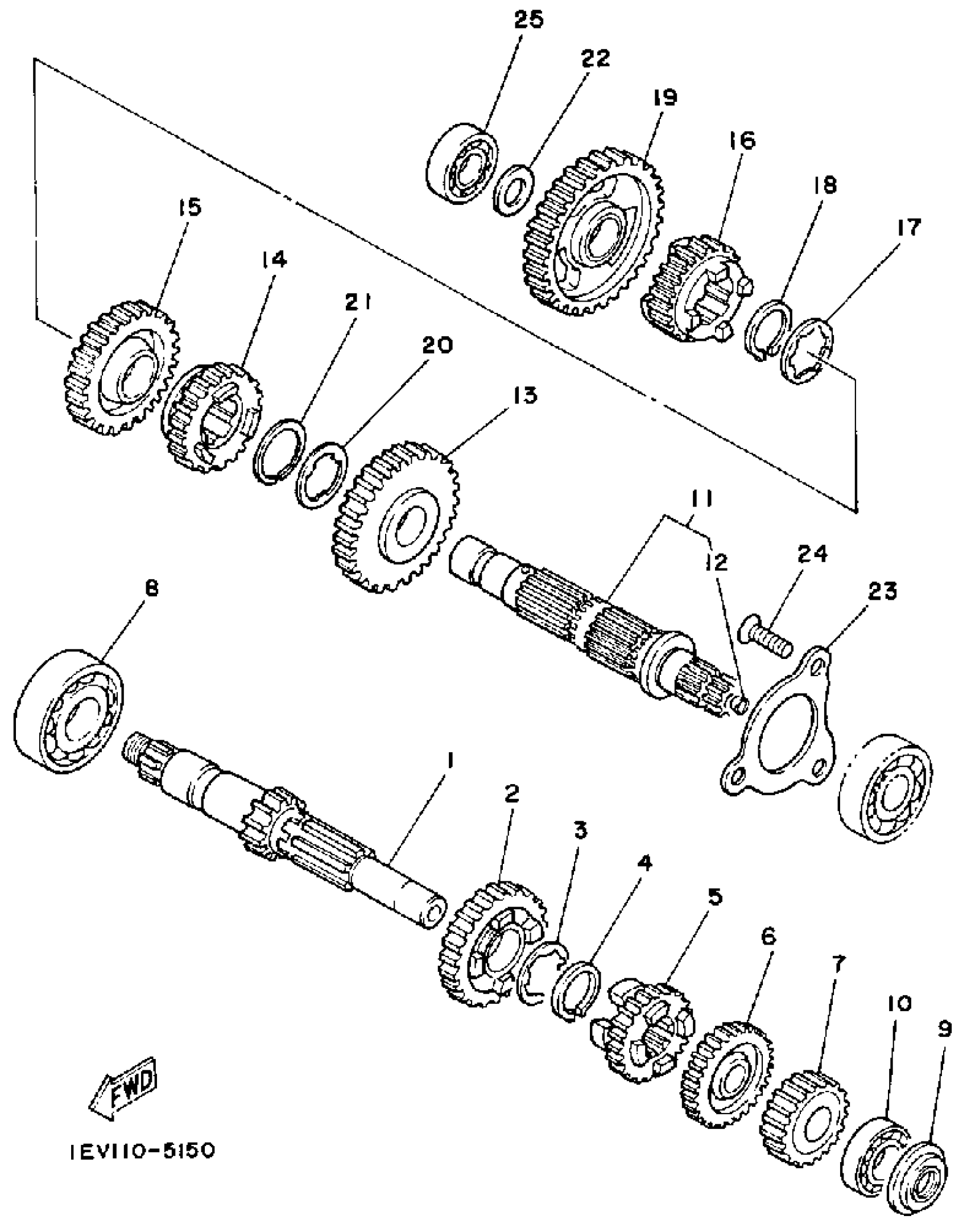

Yamaha YFM200DXT (MOTO-4) 2FH 1987 TRANSMISSION Diagram
#
Description
Price
1
. MAIN AXLE ASSEMBLY COMP (12T)
21V-17401-00-00
Unavailable
2
GEAR, 5TH PINION
24W-17151-02-00
Unavailable
5
GEAR, 2ND PINION
5H0-17121-01-00
Unavailable
6
GEAR, 4TH PINION
15A-17141-00-00
Unavailable
7
GEAR, 2ND PINION
15A-17121-00-00
Unavailable
11
DRIVE AXLE ASSY
24W-17402-00-00
Unavailable
12
. PLUG, TIGHT
90331-07041-00
Unavailable
13
GEAR,2ND WHEEL
29U-17221-01-00
Unavailable
14
GEAR, 4TH WHEEL
24W-17241-00-00
Unavailable
15
GEAR, 3RD WHEEL
15A-17231-00-00
Unavailable
16
GEAR, 6TH WHEEL
5MP-17261-00-00
Unavailable
17
WASHER (5H0)
90209-18208-00
Unavailable
18
CIRCLIP (537)
93410-22039-00
Unavailable
19
GEAR, 1ST WHEEL (34T)
29U-17211-00-00
Unavailable
20
WASHER (30X)
90209-23241-00
Unavailable
21
CIRCLIP (30X)
93410-26067-00
Unavailable
22
WASHER, PLATE (4L0)
90201-154E8-00
Unavailable
23
PLATE, BEARING
24W-17558-00-00
Unavailable
24
SCREW
90149-08013-00
Unavailable
