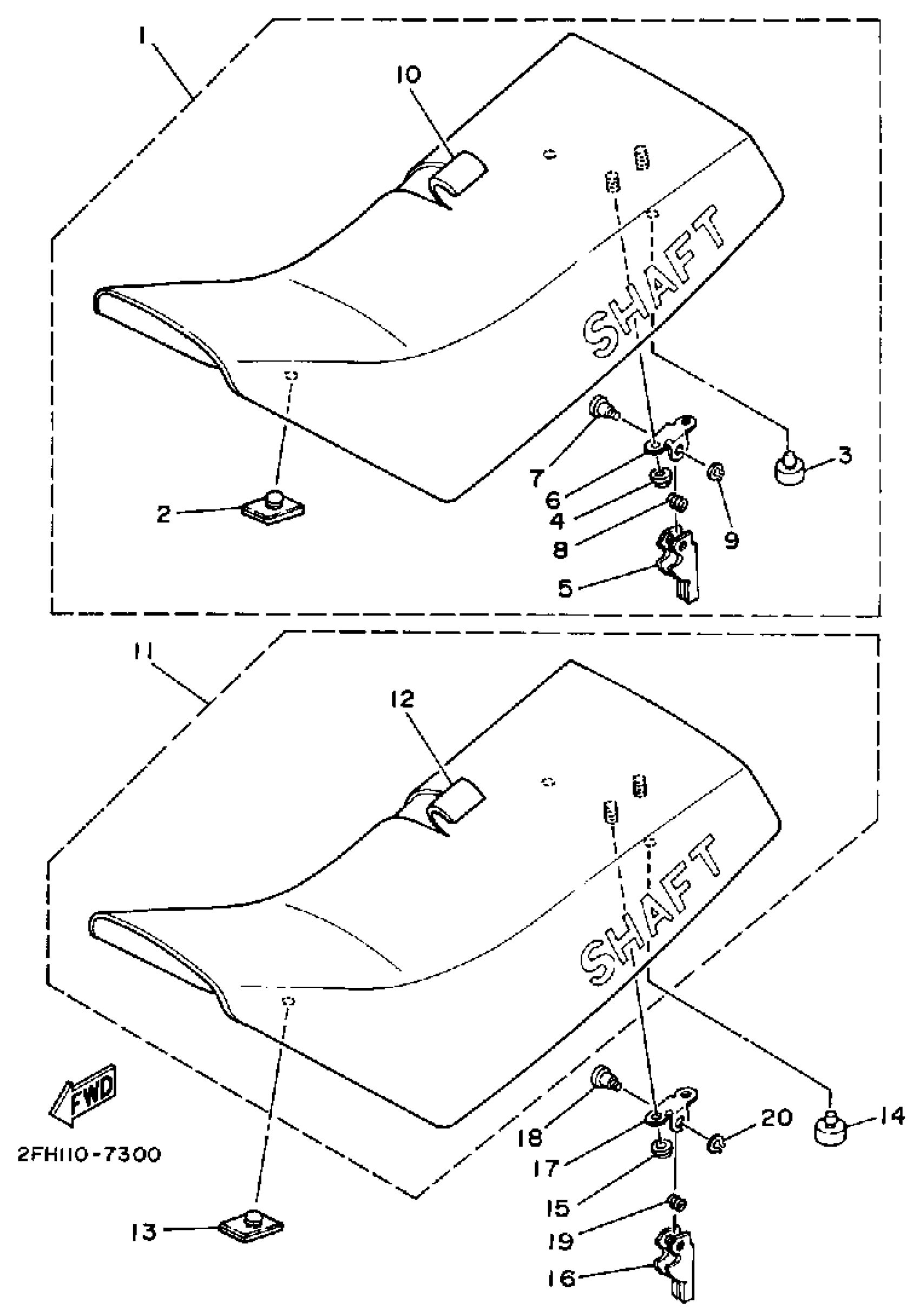

Yamaha YFM200DXT (MOTO-4) 2FH 1987 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
3GC-24710-00-00
Unavailable
5
LEVER, SEAT
29U-24776-00-00
Unavailable
6
BRACKET, SEAT LEVER
4K0-24775-00-00
Unavailable
7
PIN
4K0-24774-01-00
Unavailable
8
SPRING, TORSION (24W)
90508-20454-00
Unavailable
9
CIRCLIP (EU0)
99080-04600-00
Unavailable
10
. COVER, SINGLE SEAT
2VY-24711-00-00
Unavailable
11
SINGLE SEAT ASSY
3GC-24710-00-00
Unavailable
12
COVER,SINGLE SEAT
3GC-24711-00-00
Unavailable
16
LEVER, SEAT
29U-24776-00-00
Unavailable
17
BRACKET, SEAT LEVER
4K0-24775-00-00
Unavailable
18
PIN
4K0-24774-01-00
Unavailable
19
SPRING, TORSION (24W)
90508-20454-00
Unavailable
20
CIRCLIP (EU0)
99080-04600-00
Unavailable
