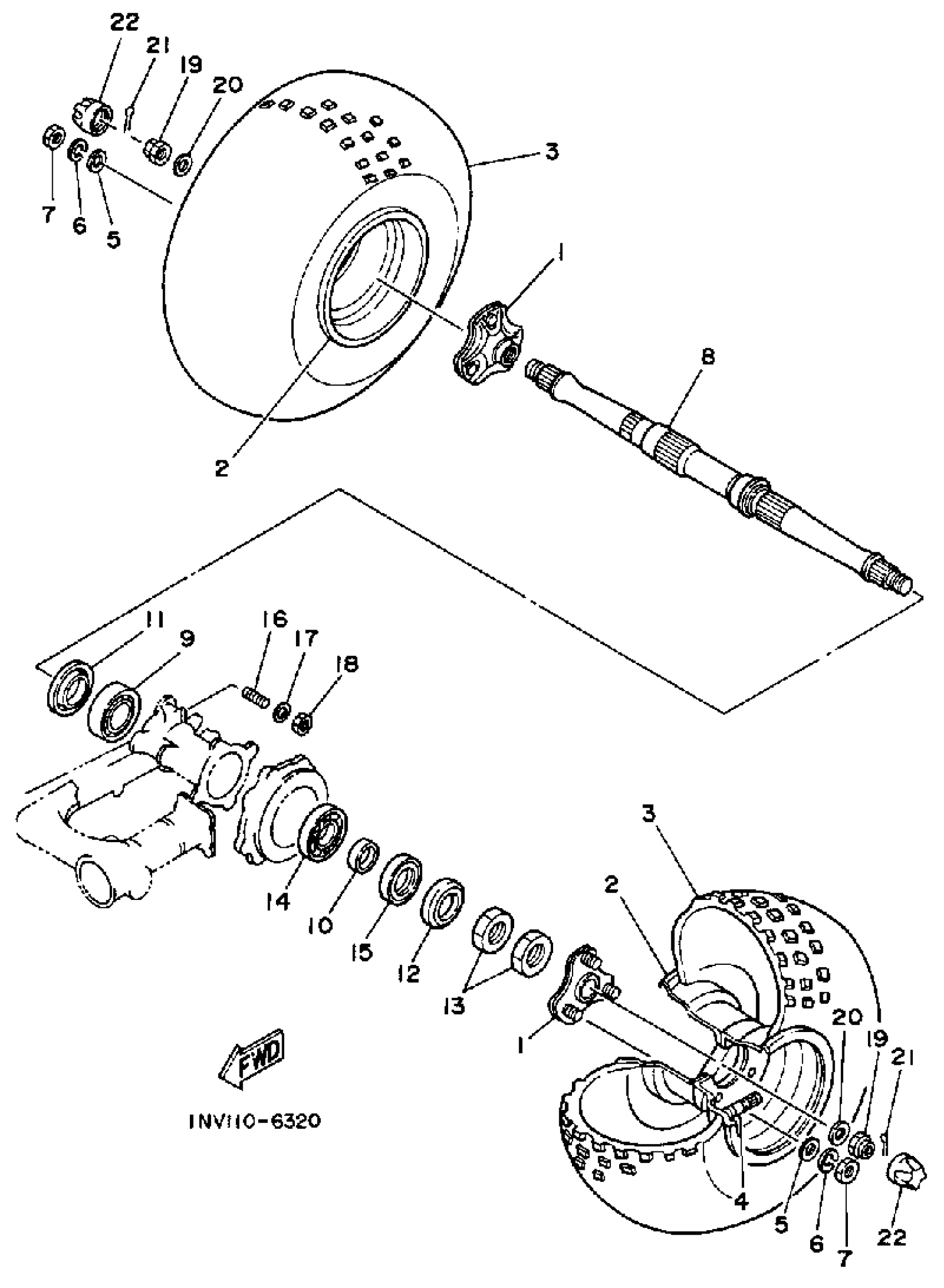

Yamaha YFM200DXT (MOTO-4) 2FH 1987 REAR WHEEL Diagram
#
Description
Price
1
COLLAR, WHEEL
1NV-25383-00-00
Unavailable
2
WHEEL, FRONT
29U-25180-00-4R
Unavailable
3
22X11-8 KT529 DUN
94111-080J8-00
Unavailable
8
AXLE, WHEEL
1NU-25381-01-00
Unavailable
9
BEARING (24W)
93399-99913-00
Unavailable
10
COLLAR, AXLE
24W-25386-00-00
Unavailable
11
COVER, HUB DUST
24W-25367-00-00
Unavailable
12
COVER, HUB DUST
21V-25367-00-00
Unavailable
13
NUT, SPECL SHAPE
90179-40419-00
Unavailable
14
BEARING
93306-00804-00
Unavailable
15
OIL SEAL (21V)
93102-46274-00
Unavailable
16
BOLT, STUD (537 HUB)
90116-10221-00
Unavailable
17
WASHER, PLATE (29U)
90201-104G0-00
Unavailable
19
NUT, CASTLE (29U)
90171-14037-00
Unavailable
20
WASHER, PLATE
90201-144K1-00
Unavailable
21
PIN, COTTER
91490-30030-00
Unavailable
22
CAP, WHEEL
52H-2512A-00-00
Unavailable
