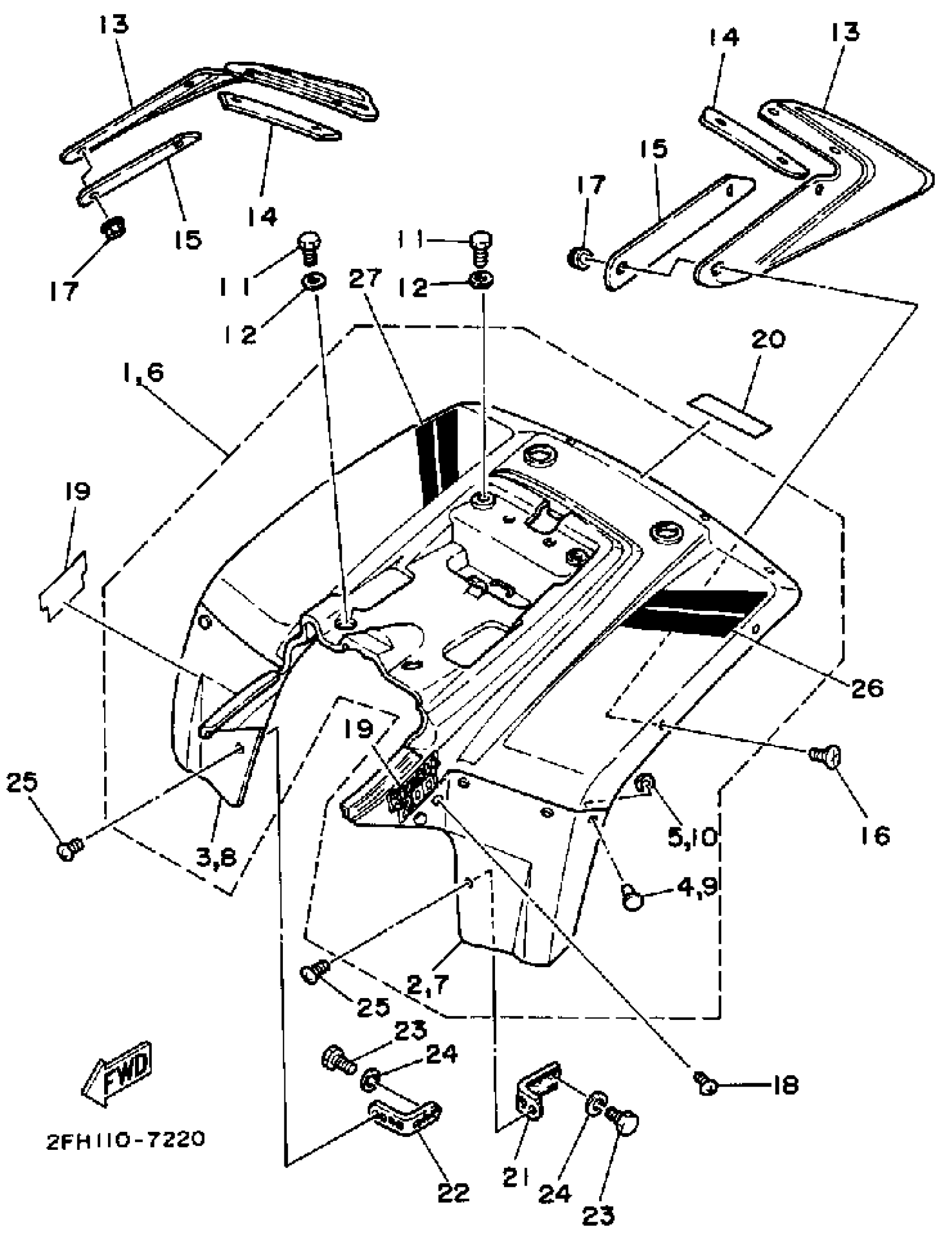

Yamaha YFM200DXT (MOTO-4) 2FH 1987 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER
2FH-21600-01-00
Unavailable
2
. COVER, FENDER LEFT (29U-2163A-00)
29U-2163A-01-00
Unavailable
3
. COVER, FENDER RIGHT (29U-2163E-00)
29U-2163E-01-00
Unavailable
6
REAR FENDER ASSY
29U-21600-31-00
Unavailable
7
. COVER, FENDER LEFT (29U-2163A-00)
29U-2163A-01-00
Unavailable
8
. COVER, FENDER RIGHT (29U-2163E-00)
29U-2163E-01-00
Unavailable
13
FLAP
29U-21621-00-00
Unavailable
14
PLATE, FLAP FITTING 1
29U-21623-00-00
Unavailable
15
PLATE, FLAP FITTING 2
29U-21624-00-00
Unavailable
16
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
17
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
18
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
19
EMBLEM 1
2FH-2163G-00-00
Unavailable
19
EMBLEM 1
2FH-2163G-10-00
Unavailable
20
EMBLEM 4
2FH-21784-00-00
Unavailable
20
EMBLEM 4
2FH-21784-10-00
Unavailable
21
STAY, FENDER 1
29U-21613-00-00
Unavailable
22
STAY, FENDER 2
29U-21614-00-00
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
26
GRPHC, R/FNDR CVR LCOVER (L.H)
2FH-21661-00-00
Unavailable
26
GRPHC, R/FNDR CVR LCOVER (L.H)
2FH-21661-10-00
Unavailable
27
GRPHC, R/FNDR CVR RCOVER (R.H)
2FH-21662-00-00
Unavailable
27
GRPHC, R/FNDR CVR RCOVER (R.H)
2FH-21662-10-00
Unavailable
