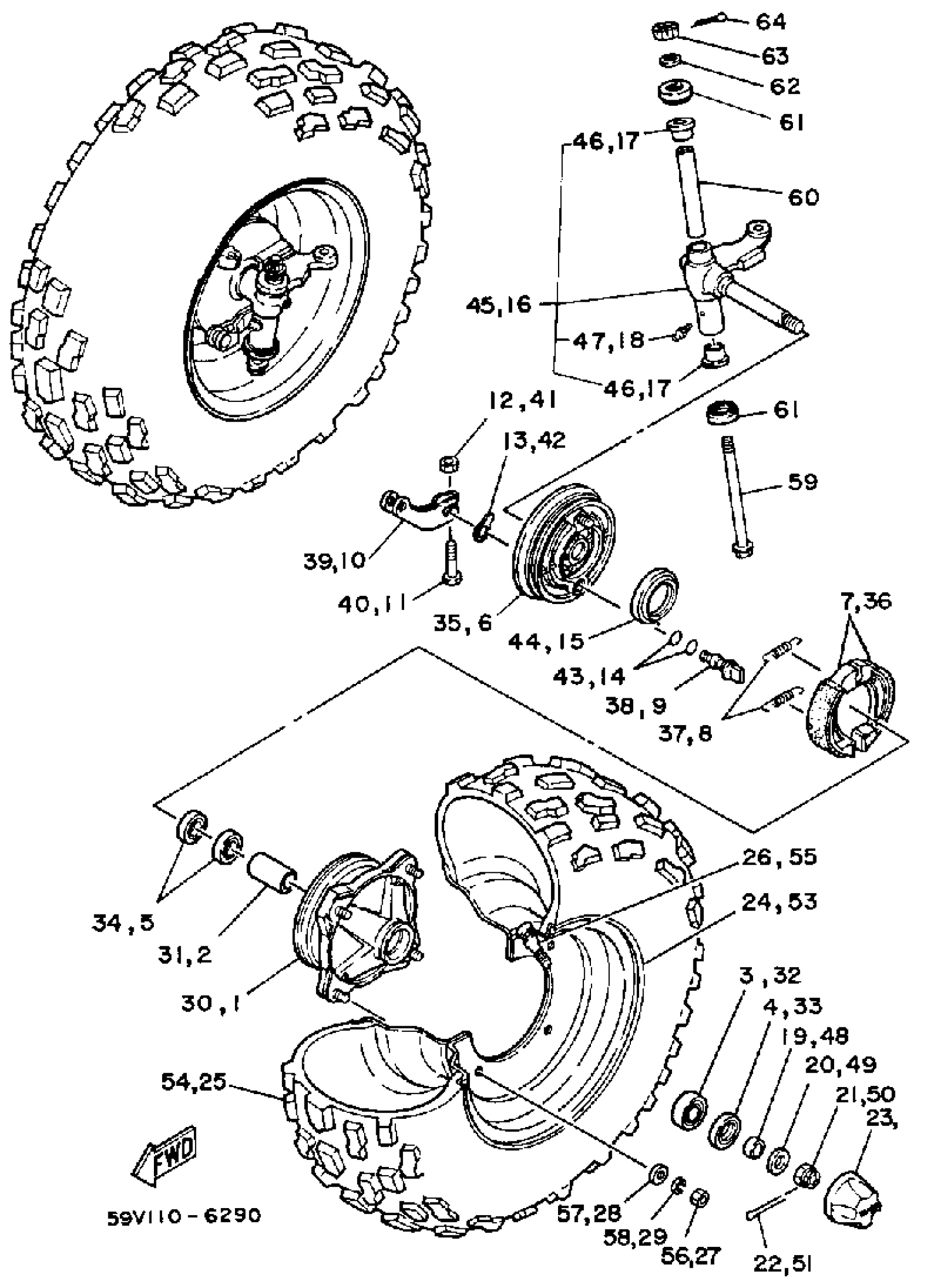

Yamaha YFM200DXT (MOTO-4) 2FH 1987 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

52H-25111-00-4R

Unavailable

2

SPACER

90560-17302-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

OIL SEAL (5V6)

93102-23252-00

$14.99

5

BEARING(2JN)

93306-00315-00

$33.99

6

BRAKE SHOE PLATE ASSEMBLY

1MT-25120-00-00

Unavailable

7

BRAKESHOE SET-2PCS (5G3-25130-02)

5G3-W2535-00-00

Unavailable

8

SPRING, TENSION

90506-15260-00

$8.49

9

CAMSHAFT

5G3-25351-02-00

Unavailable

10

LEVER, CAMSHAFT 1

52H-25155-00-00

Unavailable

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

14

O-RING(3LD)

93210-12790-00

$7.49

15

OIL SEAL

93105-49023-00

Unavailable

16

STEERING KNUCKLE ASSEMBLY (LT)

59V-23501-01-00

Unavailable

17

BUSH, SOLID (J10)

90381-15032-00

Unavailable

18

NIPPLE, GREASE

93700-06M03-00

Unavailable

19

COLLAR

90387-175R2-00

Unavailable

20

WASHER PLATE 248181370000

90201-14220-00

Unavailable

21

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

22

PIN, COTTER

91490-30030-00

Unavailable

23

CAP, WHEEL

52H-2512A-00-00

Unavailable

24

WHEEL,FRONT

2HT-25180-00-4R

Unavailable

25

AT22X8-10KT486MA D

94108-103W3-00

Unavailable

26

VALVE, RIM(2GH)

93900-00030-00

Unavailable

27

NUT(6L2)

95333-08600-00

Unavailable

28

WASHER, PLAIN

92990-08200-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

HUB, FRONT

52H-25111-00-4R

Unavailable

31

SPACER

90560-17302-00

Unavailable

32

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

33

OIL SEAL (5V6)

93102-23252-00

$14.99

34

BEARING(2JN)

93306-00315-00

$33.99

35

PLATE ASSEMBLY 2

1MT-25150-00-00

Unavailable

36

BRAKESHOE SET-2PCS (5G3-25130-02)

5G3-W2535-00-00

Unavailable

37

SPRING, TENSION

90506-15260-00

$8.49

38

CAMSHAFT

5G3-25351-02-00

Unavailable

39

LEVER, CAMSHAFT 2

52H-25156-00-00

Unavailable

40

BOLT, HEXAGON (538)

90101-06278-00

$2.17

41

NUT, HEXAGON

95380-06600-00

Unavailable

42

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

43

O-RING(3LD)

93210-12790-00

$7.49

44

OIL SEAL

93105-49023-00

Unavailable

45

STEERING, KNUCKLE ASSEMBLY (RT)

59V-23502-01-00

Unavailable

46

BUSH, SOLID (J10)

90381-15032-00

Unavailable

47

NIPPLE, GREASE

93700-06M03-00

Unavailable

48

COLLAR

90387-175R2-00

Unavailable

49

WASHER PLATE 248181370000

90201-14220-00

Unavailable

50

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

51

PIN, COTTER

91490-30030-00

Unavailable

52

CAP, WHEEL

52H-2512A-00-00

Unavailable

53

WHEEL,FRONT

2HT-25180-00-4R

Unavailable

54

AT22X8-10KT486MA D

94108-103W3-00

Unavailable

55

VALVE, RIM(2GH)

93900-00030-00

Unavailable

56

NUT(6L2)

95333-08600-00

Unavailable

57

WASHER, PLAIN

92990-08200-00

Unavailable

58

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

59

BOLT, WASHER BASED(59V)

90105-10389-00

Unavailable

60

SPACER

52H-23448-00-00

Unavailable

61

COVER, THRUST 1

59V-23517-00-00

Unavailable

62

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

63

NUT 3532518200

90171-10004-00

Unavailable

64

PIN, COTTER

91490-20025-00

Unavailable
