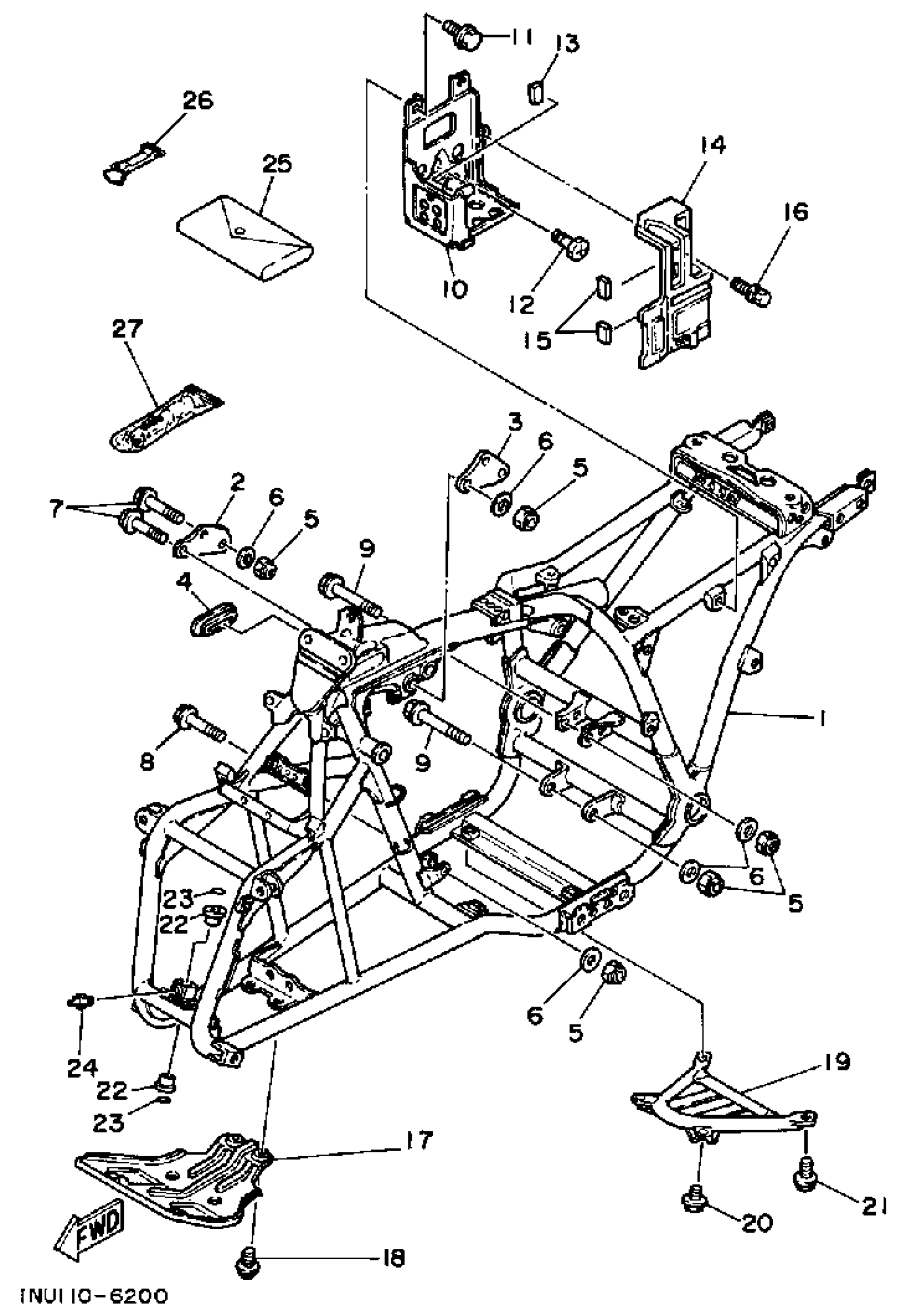

Yamaha YFM200DXT (MOTO-4) 2FH 1987 FRAME Diagram

#

Description
Price

1

FRAME

3GC-21110-10-33

Unavailable

2

STAY, ENGINE 2

29U-21315-00-00

Unavailable

3

STAY, ENGINE 2

59V-21315-00-00

Unavailable

4

GUIDE, AIR

52H-2137Y-00-00

Unavailable

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

WASHER, PLATE (33N)

90201-094G1-00

$9.49

7

BOLT, FLANGE

95817-08060-00

$3.76

8

BOLT, FLANGE

95814-08065-00

$4.99

9

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

10

BOX COMP.

1NU-21170-01-00

Unavailable

11

BOLT, FLANGE

95817-06012-00

$1.43

12

SCREW (5G3)

90153-06034-00

$7.49

13

COVER 2

3FC-2139R-00-00

Unavailable

14

BOX

24W-21245-00-00

Unavailable

15

COVER 2

3FC-2139R-00-00

Unavailable

16

BOLT, WITH WASHER

90119-06152-00

Unavailable

17

GUARD, ENGINE 1

1NU-2147A-00-00

Unavailable

18

BOLT, FLANGE

95812-06010-00

Unavailable

19

PROTECTOR, ENGINE

59V-21471-00-00

Unavailable

20

BOLT, FLANGE

95817-08012-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

94822-06012-00

Unavailable

22

BUSH, SOLID (J22)

90381-15040-00

Unavailable

23

O-RING (22U)

93210-15566-00

Unavailable

24

NIPPLE, GREASE

93700-06M03-00

Unavailable

25

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

26

BAND, TOOL

21V-21376-00-00

Unavailable

27

GAUGE, AIR

1NV-2811A-01-00

Unavailable
