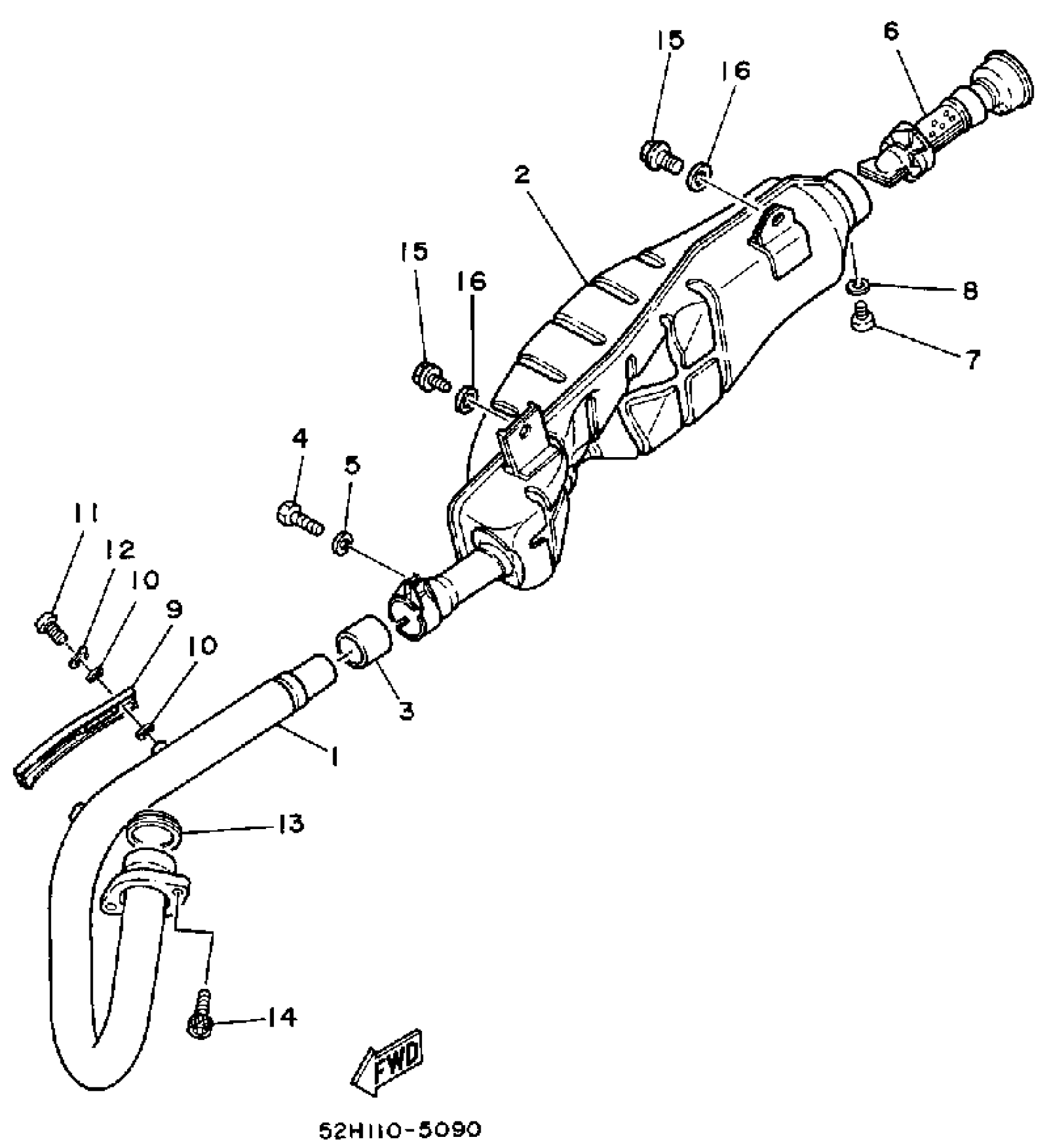

Yamaha YFM200DXT (MOTO-4) 2FH 1987 EXHAUST Diagram

PIPE, EXHAUST L

52H-14611-00-00

Unavailable

MUFFLER (L)

52H-14711-03-00

Unavailable

GASKET, MUFFLER

4DN-14714-01-00

$65.99

BOLT, HEXAGON

97017-08025-00

$10.49

WASHER(6TA)

92907-08600-00

$3.03

PIPE, OUTLET

21V-14752-00-00

Unavailable

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

PROTECTOR, EXHAUST PIPE

29U-14628-00-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

$1.38

SCREW, BINDING

98907-06010-00

$1.65

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

BOLT,SOCKET

91317-06020-00

Unavailable

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

WASHER (853)

90201-08326-00

Unavailable
