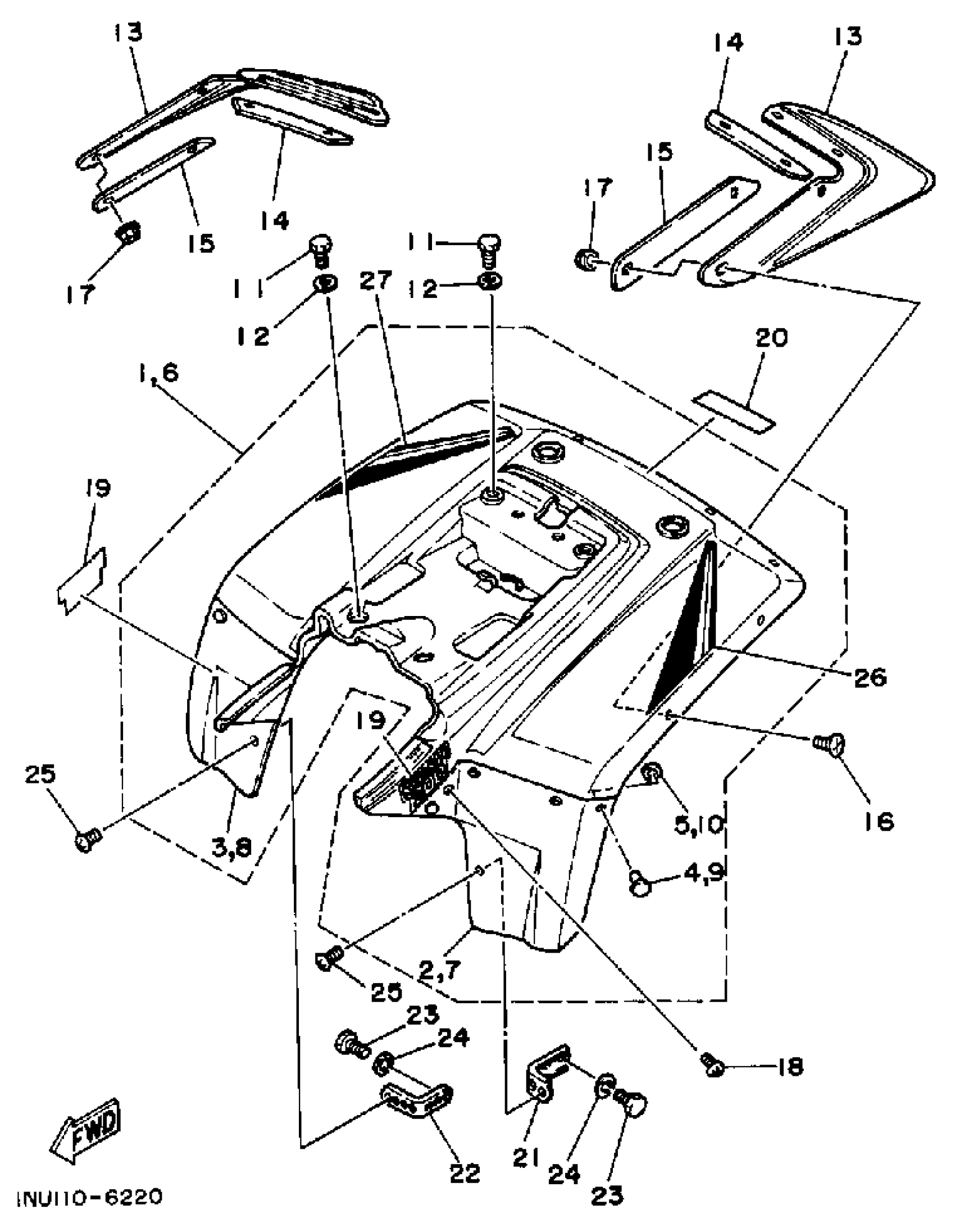

Yamaha YFM200DXS (MOTO-4) 1NU 1986 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER
2FH-21600-01-00
Unavailable
2
. COVER, FENDER LEFT (29U-2163A-00)
29U-2163A-01-00
Unavailable
3
. COVER, FENDER RIGHT (29U-2163E-00)
29U-2163E-01-00
Unavailable
6
REAR FENDER ASSEMBLY
1NU-21600-32-00
Unavailable
7
. COVER, FENDER LEFT (29U-2163A-00)
29U-2163A-01-00
Unavailable
8
. COVER, FENDER RIGHT (29U-2163E-00)
29U-2163E-01-00
Unavailable
13
FLAP
29U-21621-00-00
Unavailable
14
PLATE, FLAP FITTING 1
29U-21623-00-00
Unavailable
15
PLATE, FLAP FITTING 2
29U-21624-00-00
Unavailable
16
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
17
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
18
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
19
EMBLEM 1 (SKY BLUE)
1NU-2163G-00-00
Unavailable
19
EMBLEM 1 (CHAPPY RED)
1NU-2163G-30-00
Unavailable
20
EMBLEM 4 (SKY BLUE)
1NU-21784-00-00
Unavailable
20
EMBLEM 4 (CHAPPY RED)
1NU-21784-30-00
Unavailable
21
STAY, FENDER 1
29U-21613-00-00
Unavailable
22
STAY, FENDER 2
29U-21614-00-00
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
26
GRAPHIC, FENDER COVER (LH) (SKY BLUE)
1NU-21661-00-00
Unavailable
26
GRAPHIC, FENDER COVER (LH) (CHAPPY RED)
1NU-21661-30-00
Unavailable
27
GRAPHIC, FENDER COVER (RH) (SKY BLUE)
1NU-21662-00-00
Unavailable
27
GRAPHIC, FENDER COVER (RH) (CHAPPY RED)
1NU-21662-30-00
Unavailable
