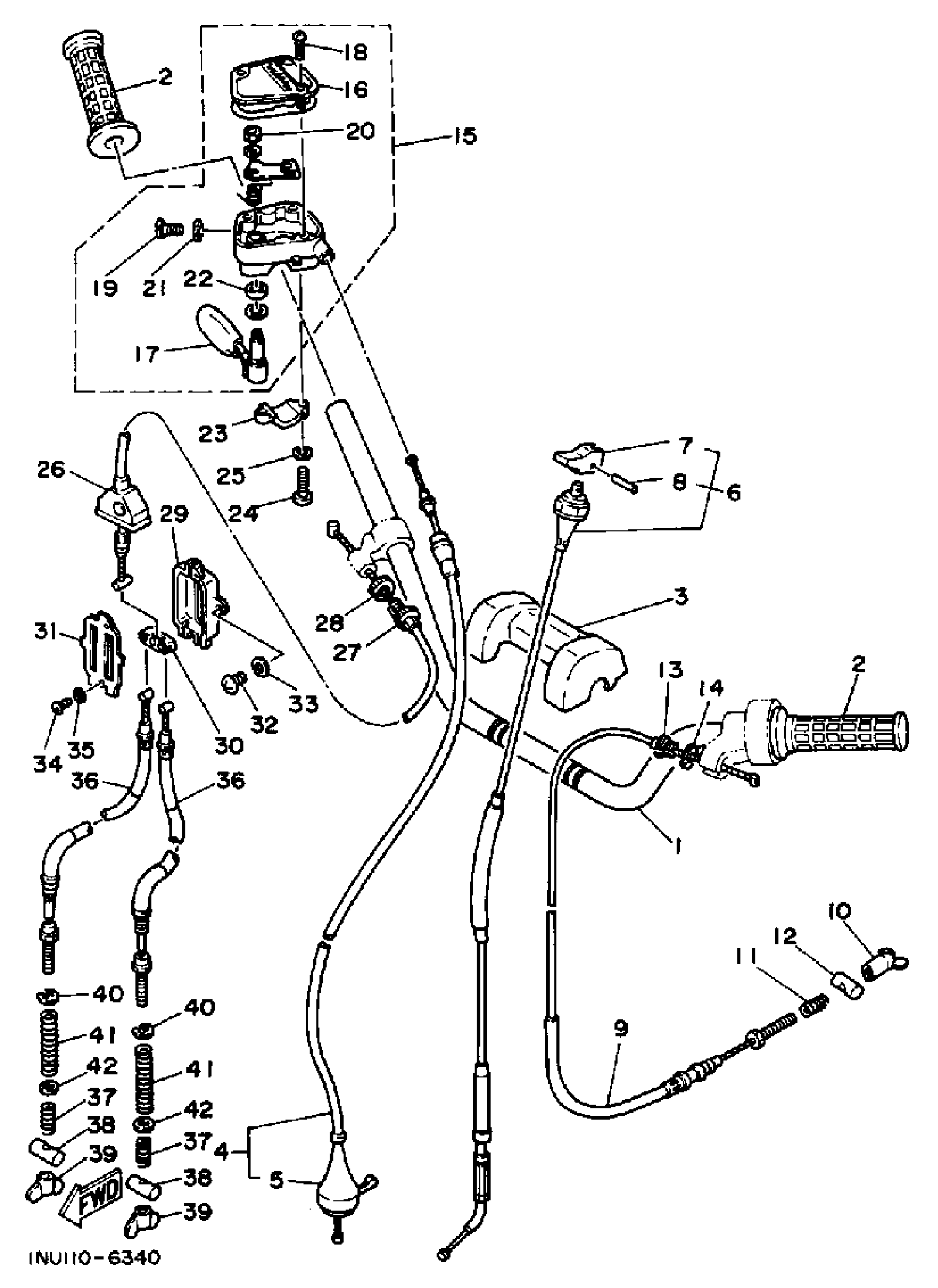

Yamaha YFM200DXS (MOTO-4) 1NU 1986 HANDLEBAR - CABLE Diagram
#
1
HANDLEBAR
1NU-26111-00-00
Unavailable
3
PROTECTOR, HDLBR
52H-26124-00-00
Unavailable
4
CABLE, THROTTLE 1
1NU-26311-00-00
Unavailable
5
. CAP, RUBBER
21V-26329-00-00
Unavailable
6
CABLE, STARTER 1
52H-26331-00-00
Unavailable
8
PIN, SPRING (663)
91690-30010-00
Unavailable
9
CABLE, BRAKE
1NU-26341-00-00
Unavailable
15
THROTTLE LEVER ASSEMBLY
1NV-26250-11-00
Unavailable
16
. CAP, GEAR
1NV-2628F-00-00
Unavailable
17
. LEVER, THROTTLE
1NV-2625G-00-00
Unavailable
18
SCREW, PAN
98517-05012-00
Unavailable
19
SCREW, PAN HEAD
98517-05020-00
Unavailable
20
NUT, U
95617-05100-00
Unavailable
21
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
22
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
23
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
24
SCREW PAN HEAD
98506-08020-00
Unavailable
25
WASHER(3SX)
92907-05100-00
Unavailable
26
CABLE, BRAKE 4
1NU-26373-00-00
Unavailable
28
NUT
91079-08148-00
Unavailable
29
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
30
JOINT, CABLE
52H-26347-01-00
Unavailable
31
PLATE
52H-2631G-00-00
Unavailable
32
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
33
WASHER, PLAIN (646)
92990-05600-00
Unavailable
34
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
35
WASHER(3SX)
92907-03600-00
Unavailable
36
CABLE, BRAKE
59V-26361-00-00
Unavailable
39
NUT, WING (1K5)
90175-06013-00
Unavailable
40
CIRCLIP(53L)
99001-06600-00
Unavailable
41
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
42
WASHER(52H)
90209-06265-00
Unavailable
