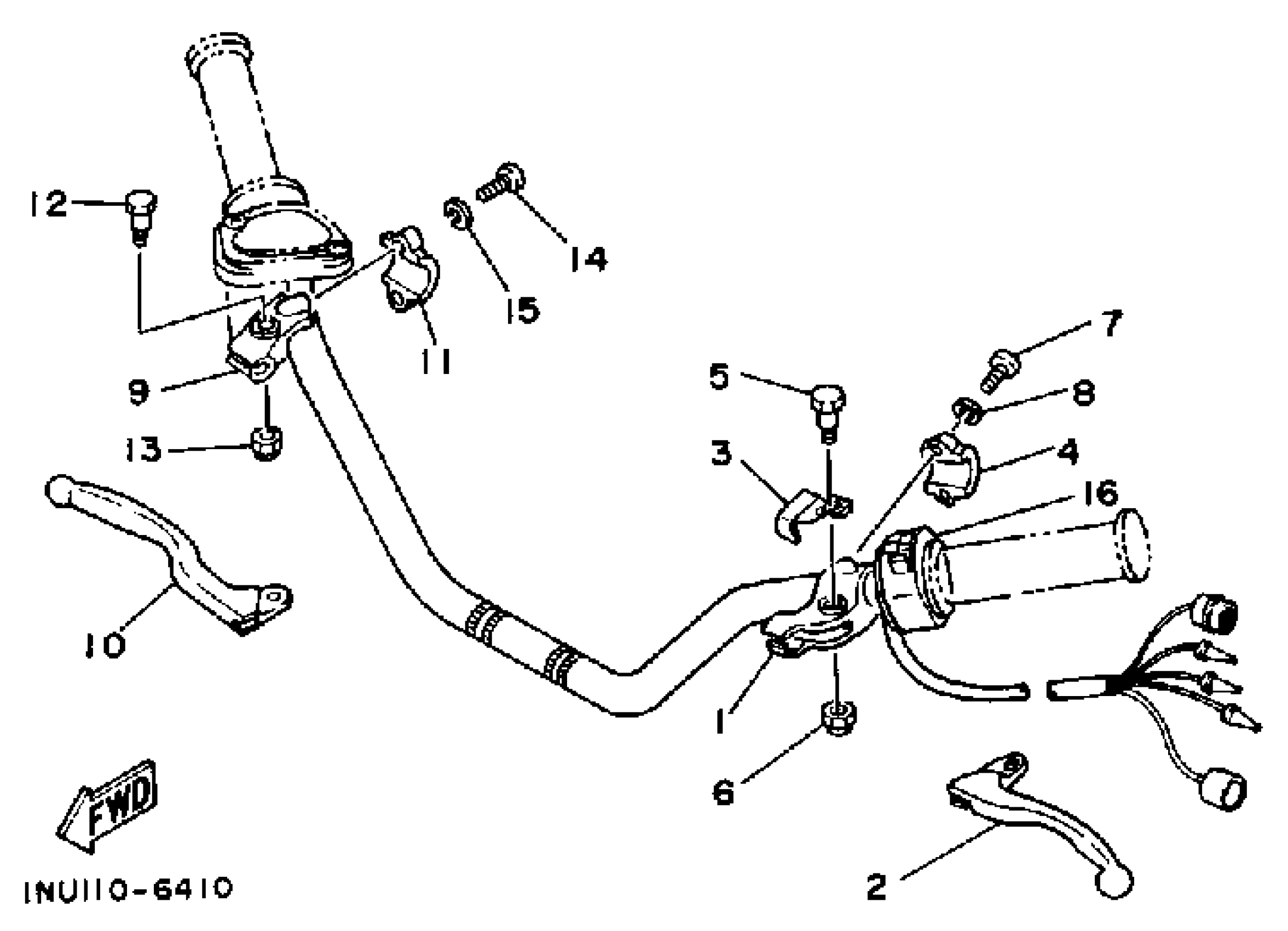

Yamaha YFM200DXS (MOTO-4) 1NU 1986 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

H0LDER, LEVER 1

38V-82911-00-00

$32.49

2

LEVER 1

23X-83912-02-00

$20.03

3

LEVER, LOCK

3X3-83965-00-00

$25.97

4

H0LDER, LEVER L0WER 1

38V-82913-00-00

$17.82

5

BOLT(1FG)

90109-06798-00

$5.84

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

8

WASHER(3SX)

92907-05100-00

$5.76

9

H0LDER, LEVER 2

38V-82921-00-00

$35.10

10

LEVER 2

59V-83922-00-00

$34.56

11

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

12

BOLT(1FG)

90109-06798-00

$5.84

13

NUT, SELF-LOCKING

95617-06100-00

$2.17

14

SCREW, PAN HEAD

98517-05020-00

$1.26

15

WASHER(3SX)

92907-05100-00

$5.76

16

SWITCH, HANDLE 3

2VY-83973-01-00

Unavailable
