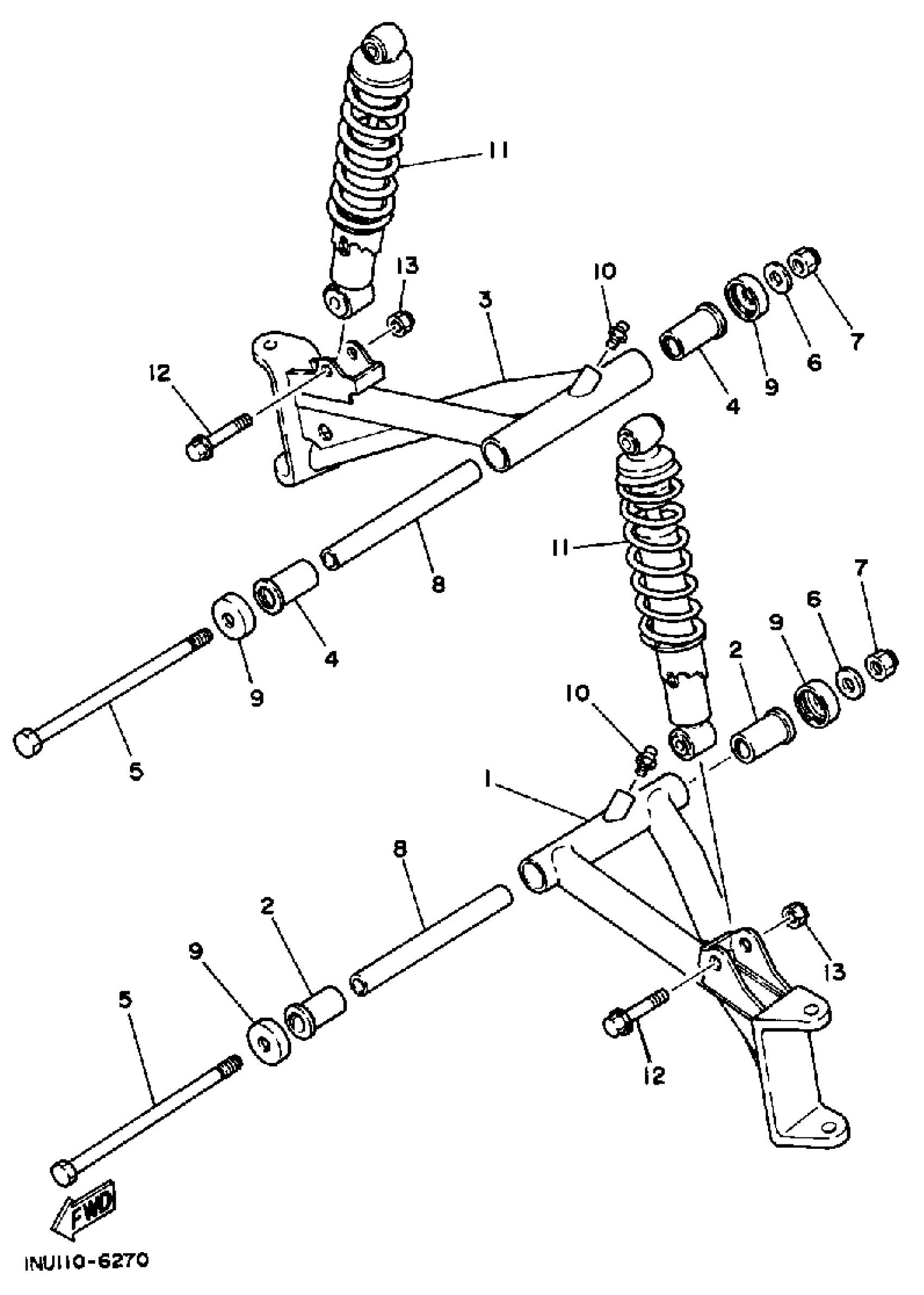

Yamaha YFM200DXS (MOTO-4) 1NU 1986 FRONT SUSPENSION - WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMPLETE (LT)

1NU-23570-00-00

Unavailable

2

BUSHING (401-22123-00)

90386-18028-00

$26.99

3

FRONT LOWER ARM COMPLETE (RT)

1NU-23580-00-00

Unavailable

4

BUSHING (401-22123-00)

90386-18028-00

$26.99

5

SHAFT, PIVOT

537-22141-01-00

Unavailable

6

WASHER, PLATE (35T)

90201-122H1-00

$9.49

7

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

8

BUSH 2

18G-22124-00-00

Unavailable

9

COVER, THRUST 1

401-22128-01-00

$29.99

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

SHOCK ABSORBER ASSEMBLY

1NU-23350-00-26

Unavailable

11

SHOCK ABSORBER ASSEMBLY

1NU-23350-00-6W

Unavailable

12

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

13

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49
