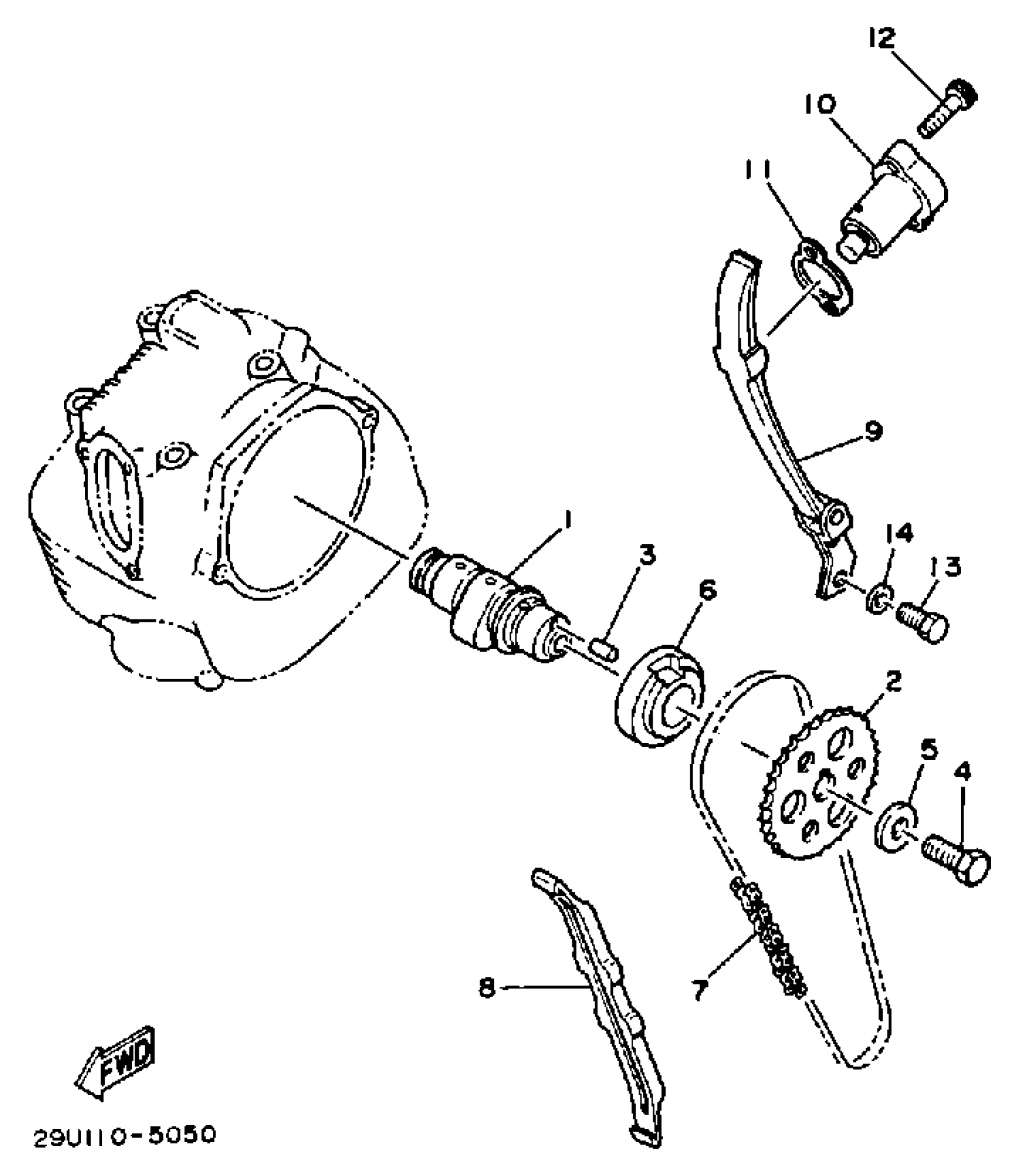

Yamaha YFM200DXS (MOTO-4) 1NU 1986 CAMSHAFT - CHAIN Diagram

CAMSHAFT 1

5N0-12171-11-00

$129.99

SPROCKET, CAM CHAIN

5H0-12176-00-00

$27.99

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

COLLAR (15A)

90387-255F3-00

$45.99

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$81.99

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

GUIDE, STOPPER 2

5N0-12241-01-00

$57.99

TENSIONER ASSY, CAM CHAIN

2LN-12210-10-00

$120.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLATE (4H7)

90201-061A5-00

$7.49
