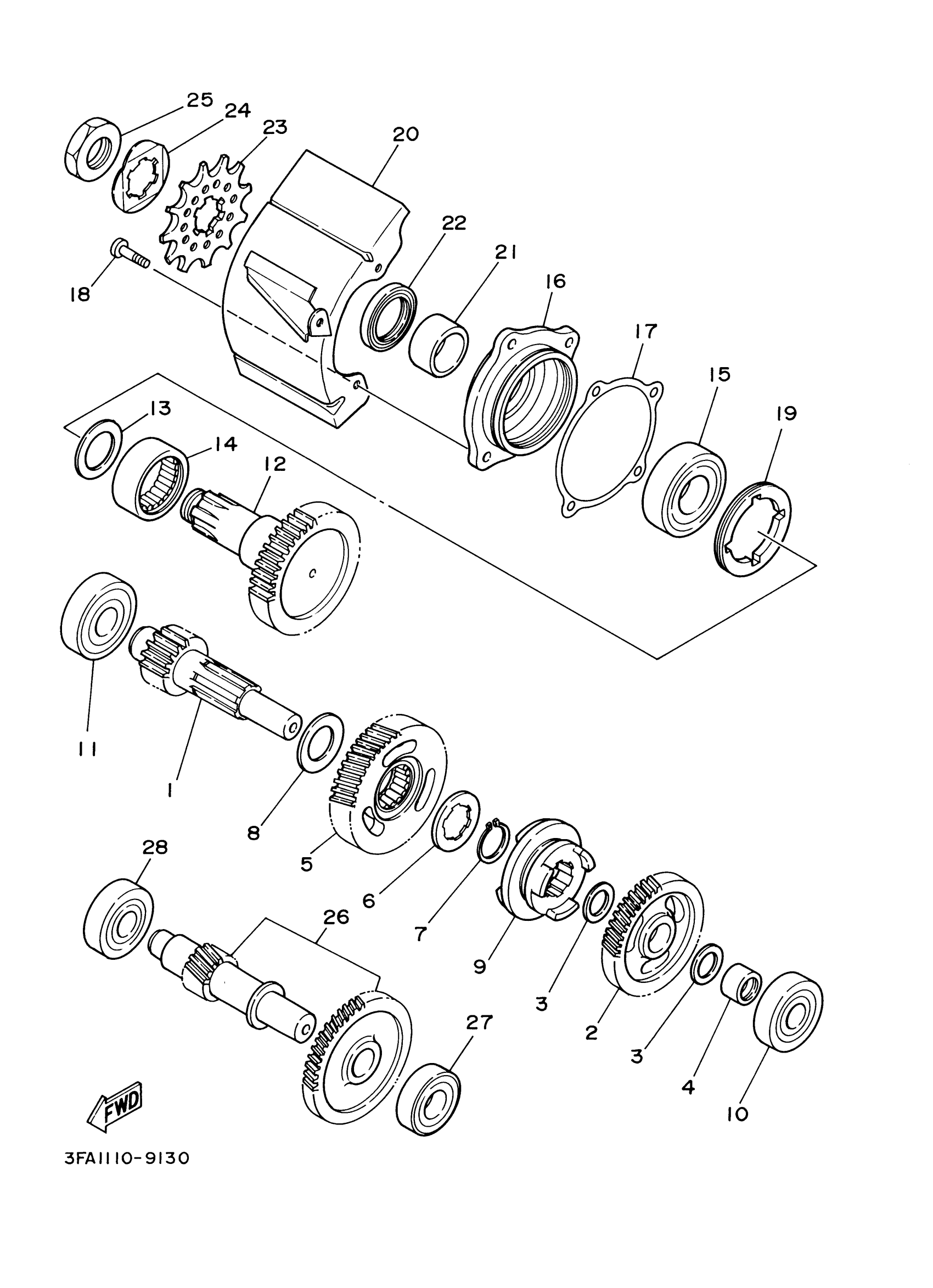

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (17T)

3FA-17411-00-00

$169.48

2

GEAR, PRIMARY DRIVEN (43T)

3FA-16151-00-00

$98.20

3

WASHER, PLATE (4L0)

90201-154E8-00

$6.17

4

SPACER(3FA)

90560-15348-00

$12.66

5

REDUCTION GEAR ASSY (49T)

3FA-17270-00-00

$161.49

6

WASHER, LOCK(3FA)

90215-22276-00

$14.72

7

CIRCLIP (537)

93410-22039-00

$6.17

8

WASHER, PLATE(3FA)

90201-221M8-00

$6.32

9

CLUTCH, DOG

3FA-17285-00-00

$69.38

10

BRG, R-B (7H4)

93306-20211-00

$22.05

11

BEARING(1YW)

93306-20461-00

$33.41

12

AXLE, DRIVE (40T)

3FA-17421-00-00

$194.20

13

WASHER, PLATE (3X0)

90201-252A4-00

$9.18

14

BEARING, CYLINDRICAL (5F7)

93311-43048-00

$58.54

15

BEARING

93306-20532-00

$56.05

16

HOUSING, BEARING

3FA-17551-00-00

$82.11

17

GASKET, HOUSING CAP

3FA-17519-10-00

$6.72

18

BOLT,SOCKET

91317-06020-00

$2.11

19

NUT(52G)

90179-55464-00

$16.85

20

PLATE, COVER

3FA-17471-01-00

$20.69

21

COLLAR(3FA)

90387-251W4-00

$35.08

22

OIL SEAL (5F7)

93102-30243-00

$12.88

23

SPROCKET,DRIVE 12T(38V1746120)

93834-12016-00

$17.88

24

WASHER, LOCK (23X)

90215-21239-00

$7.56

25

NUT (2K7)

90179-20255-00

$9.40

26

COUNTER AXLE ASSY (15T)

3FA-17430-00-00

$206.02

27

BEARING (7X9)

93306-20327-00

$24.79

28

BEARING

93306-30212-00

$33.35
