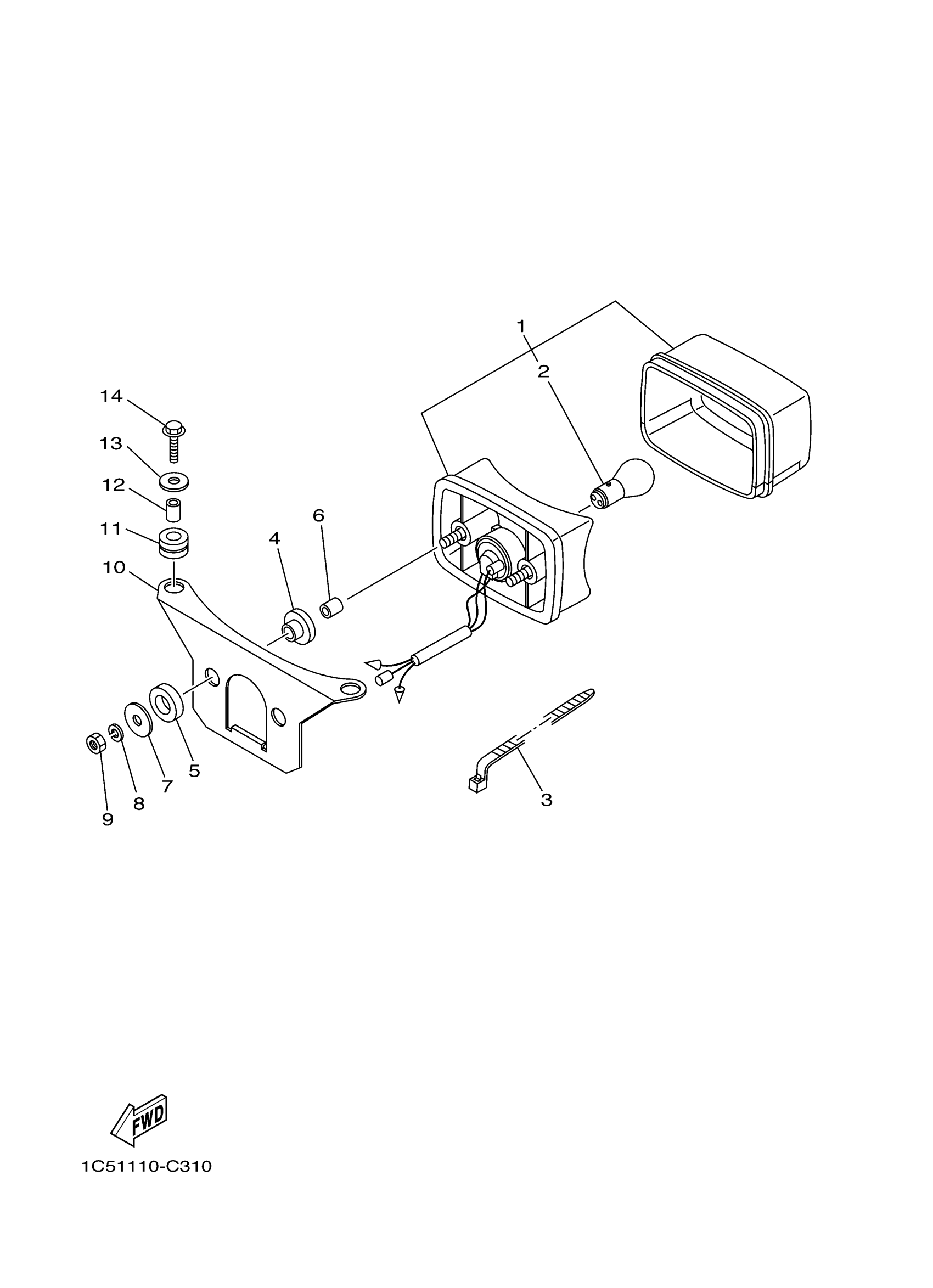

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

3FA-84710-01-00

$42.74

2

BULB

1A2-84714-50-00

$12.17

3

CLAMP(4FM)

90464-15195-00

$2.77

4

GROMMET (462)

90480-14088-00

$4.14

5

WASHER, PLATE (462)

90202-14077-00

$3.57

6

SPACER

90560-07007-00

$6.57

7

WASHER PLATE 248217570000

90201-06074-00

$6.29

8

WASHER, SPRING

92907-06100-00

$1.00

9

NUT(6TA)

95317-06600-00

$2.69

10

BRACKET, TAILLIGHT

3FA-84702-10-00

$29.77

11

GROMET (3X3)

90480-14229-00

$6.17

12

COLLAR (J10)

90387-06026-00

$6.91

13

WASHER, PLATE(36Y)

90201-063J2-00

$4.45

14

BOLT, FLANGE

95817-06025-00

$1.46
