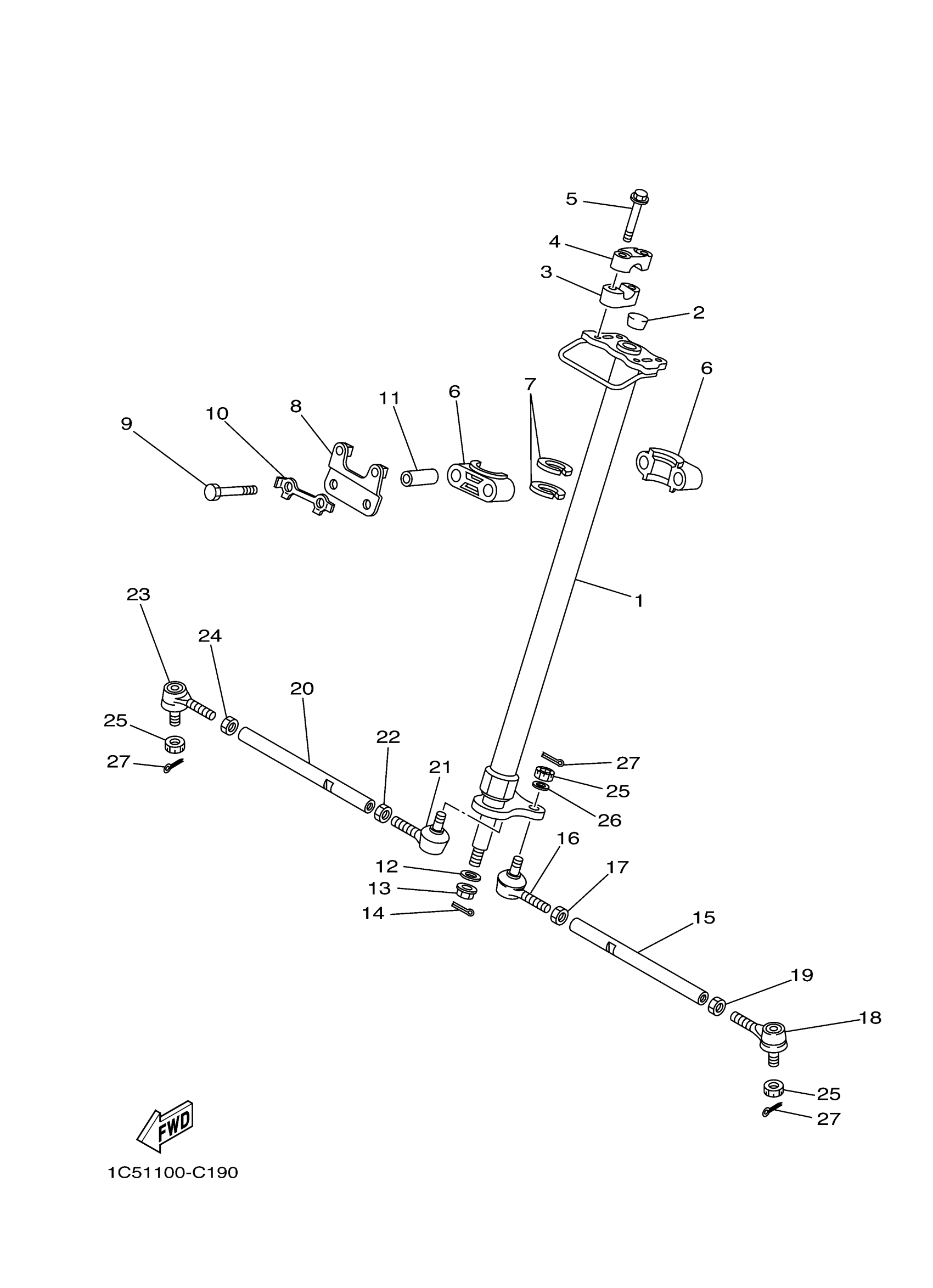

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

1C5-23813-20-00

$154.20

2

PLUG, TAPER(3FA)

90336-22056-00

$1.38

3

HOLDER, HANDLE LOWER

2HR-23442-00-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

5

BOLT, FLANGE

95817-08050-00

$3.15

6

PLANE BEARING, STEERING

1UY-23812-00-00

$21.15

7

OIL SEAL(1UY)

93112-31011-00

$7.52

8

BRACKET, STEERING LOWER

3FA-23868-20-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

$7.72

10

WASHER, LOCK 1

1UY-23894-01-00

$6.86

11

COLLAR(85G)

90387-106T4-00

$11.29

12

WASHER, PLATE (3L6)

90201-10774-00

$6.25

13

NUT, SELF-LOCKING (8U7)

90185-10115-00

$6.82

14

PIN, COTTER

91490-20025-00

$1.31

15

ROD, TIE

3FA-23831-10-00

$23.43

16

JOINT, UNIVERSAL 1

1UY-23841-01-00

$66.52

17

NUT (3WP1)

95317-10700-00

$6.17

18

JOINT, UNIVERSAL 2

1UY-23845-01-00

$66.52

19

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

20

ROD, TIE

3FA-23831-10-00

$23.43

21

JOINT, UNIVERSAL 1

1UY-23841-01-00

$66.52

22

NUT (3WP1)

95317-10700-00

$6.17

23

JOINT, UNIVERSAL 2

1UY-23845-01-00

$66.52

24

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

25

NUT, CASTLE

90171-10001-00

$2.85

26

WASHER, PLATE

92990-10600-00

$2.61

27

PIN, COTTER

91490-20025-00

$1.31
