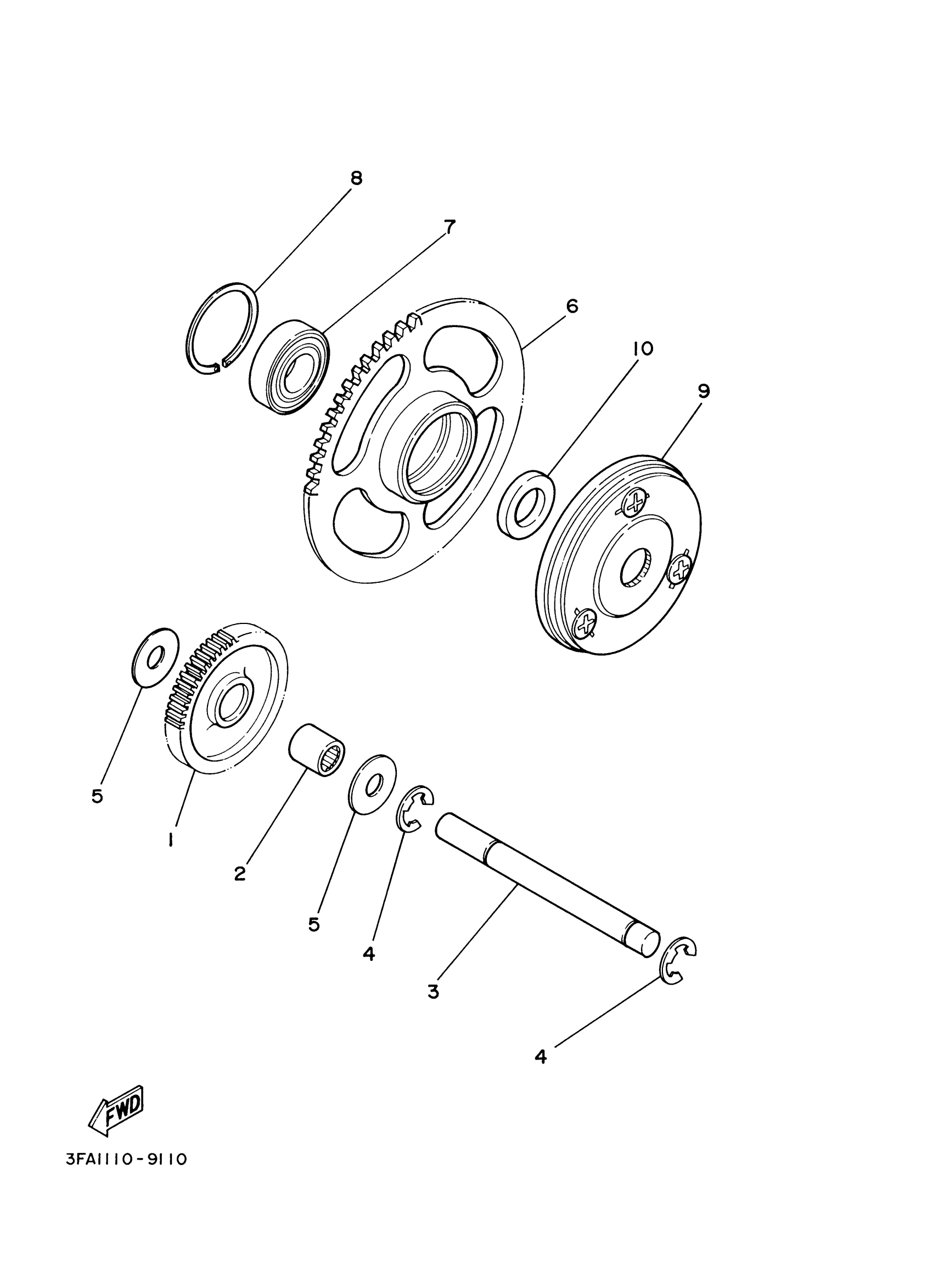

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

50M-15512-00-00

$170.27

2

BEARING, CYLINDRICAL(50M)

93315-11040-00

$32.25

3

SHAFT 1

3FA-15521-00-00

$18.05

4

CIRCLIP(J51)

99080-09600-00

$1.88

5

WASHER, PLATE(52H)

90201-105J4-00

$6.88

6

WHEEL, STARTER

50M-15524-00-00

$169.48

7

BEARING(85G)

93306-00316-00

$33.19

8

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

$2.55

9

STARTER CLUTCH ASSY

4KL-15570-00-00

$164.73

10

WASHER, PLATE (14T)

90201-163F8-00

$8.17
