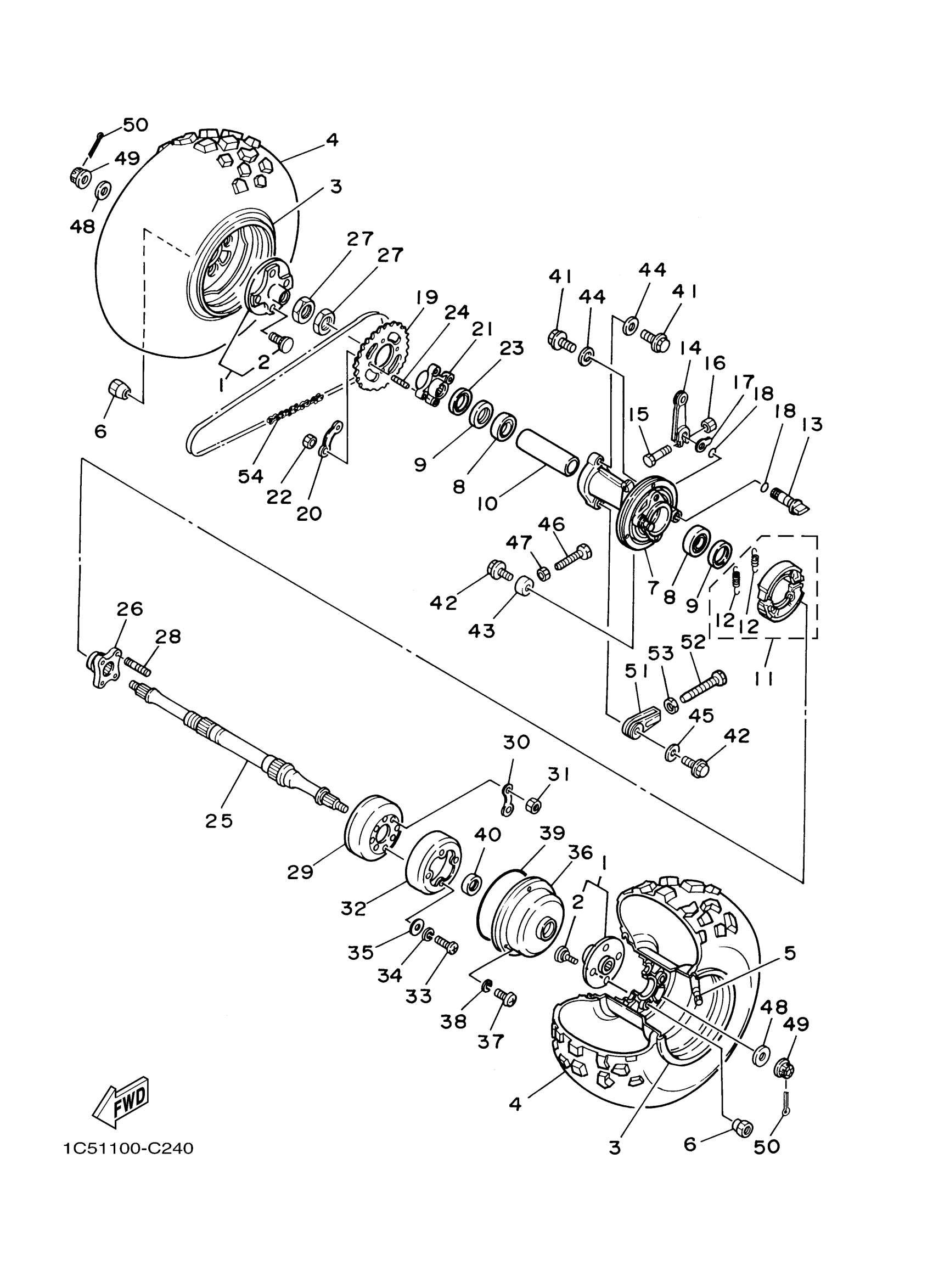

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL

1C5-25383-00-00

Unavailable

2

BOLT, SERRATION

90114-10014-00

$2.74

3

REAR WHEEL COMP.

3FA-25390-00-35

$153.89

4

TIRE (AT22X10-8 DI-K735A T/L N

94110-08009-00

$179.77

5

VALVE, RIM(2GH)

93900-00030-00

$14.46

6

NUT(2HR)

90179-10540-00

$3.92

7

HUB, REAR

3FA-25311-00-00

Unavailable

8

BEARING(38W)

93306-00705-00

$48.30

9

OIL SEAL(3BC)

93106-42026-00

$11.35

10

SPACER, BEARING

3FA-25317-00-00

$7.15

11

BRAKE SHOE KIT

3FA-W253A-00-00

$22.42

12

SPRING, TENSION

90506-15260-00

$5.75

13

CAMSHAFT

55X-25351-00-00

$35.63

14

LEVER, CAM SHAFT

2N3-25155-00-00

$25.17

15

BOLT, HEXAGON (538)

90101-06278-00

$1.82

16

NUT(6TA)

95317-06600-00

$2.69

17

PLATE, INDICATOR

23F-2533A-00-00

$6.46

18

O-RING (26H)

93210-14579-00

$5.69

19

SPROCKET, DRIVEN (32T)

3FA-25432-20-00

$38.01

20

WASHER

10V-25412-00-00

$8.51

21

COLLAR, SPROCKET AXLE

3FA-25386-00-00

Unavailable

22

NUT

90170-10011-00

$6.29

23

COVER, HUB DUST

5V6-25367-00-00

$7.94

24

BOLT, STUD(1UY)

90116-10483-00

Unavailable

25

AXLE, WHEEL

3FA-25381-10-00

$304.25

26

BOSS

3FA-25343-00-00

$73.06

27

NUT

90170-33011-00

$17.20

28

BOLT, STUD(2XJ)

90116-08507-00

Unavailable

29

DRUM, BRAKE

3FA-2531E-00-00

$166.75

30

WASHER, LOCK

40E-25834-00-00

$6.43

31

NUT(6TA)

95337-08600-00

$6.17

32

RING 2

3FA-25336-00-00

$33.98

33

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

34

WASHER(3SX)

92907-05100-00

$6.18

35

WASHER(1RW)

92907-05600-00

$0.78

36

COVER 1

55X-25715-00-00

Unavailable

37

SCREW, PAN

98517-06012-00

$3.14

38

WASHER, SPRING

92907-06100-00

$1.00

39

O-RING(55X)

93211-63688-00

$10.66

40

OIL SEAL (705)

93102-35191-00

$17.02

41

BOLT, FLANGE

90105-12573-00

Unavailable

42

BOLT, FLANGE

90105-10585-00

Unavailable

43

COLLAR(3FA)

90387-113W0-00

$11.83

44

WASHER, PLATE (8K2)

90201-120A5-00

$5.00

45

WASHER, PLATE (17K)

90201-106F2-00

$7.66

46

BOLT

90101-08060-00

$4.92

47

NUT(6TA)

95337-08600-00

$6.17

48

WASHER, PLATE

90201-14226-00

Unavailable

49

NUT, CASTLE (29U)

90171-14037-00

$9.00

50

PIN, COTTER

91490-30030-00

$7.15

51

PULLER, CHAIN 1

1UY-25388-00-00

$22.63

52

BOLT(1KT)

90101-08647-00

$5.20

53

NUT(6TA)

95337-08600-00

$6.17

54

CHAIN

94582-02074-00

$74.57
