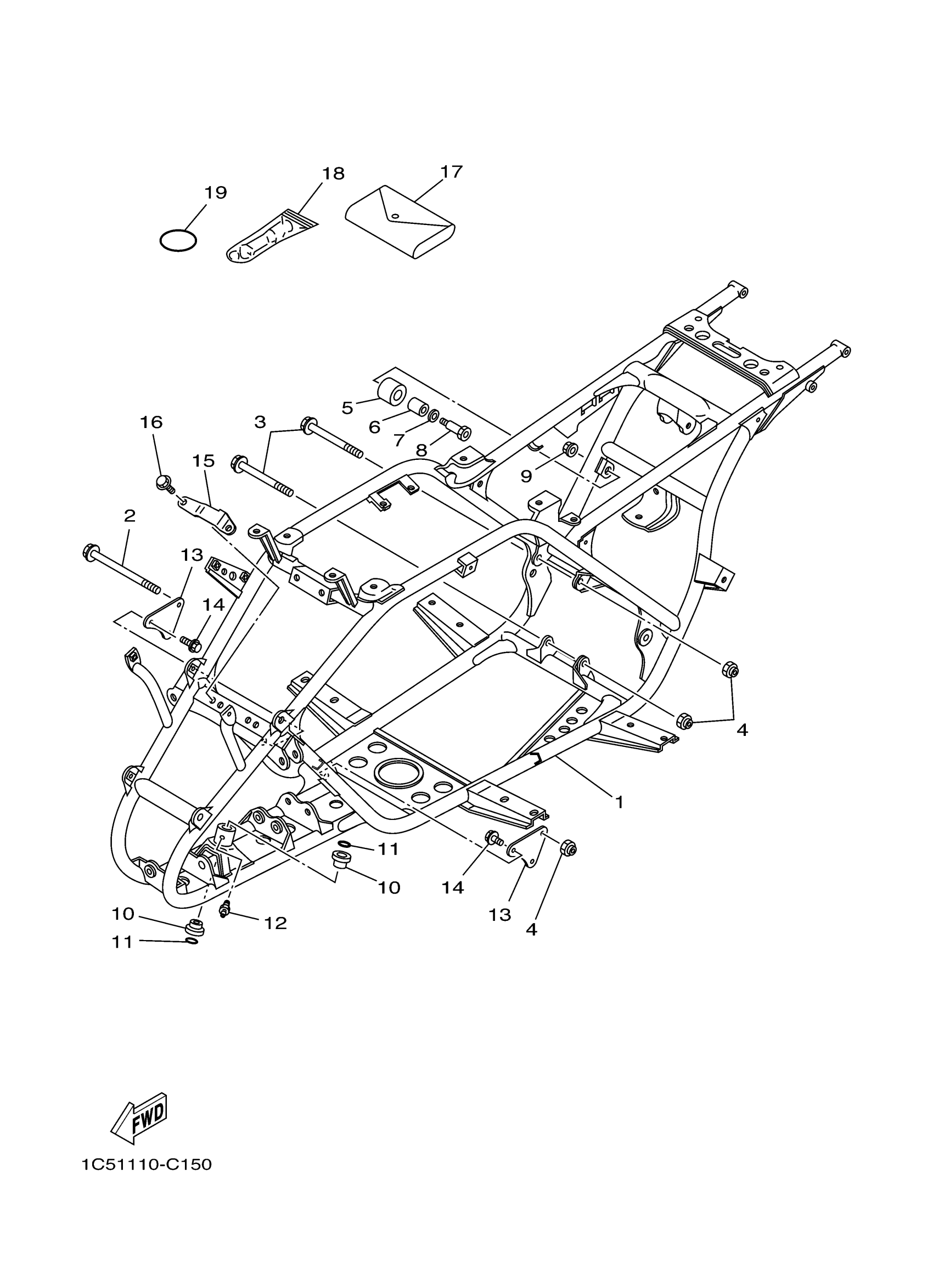

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1C5-21110-00-00

Unavailable

2

BOLT, WASHER BASED (5E3)

90105-10183-00

$10.25

3

BOLT, WASHER BASED(1KT)

90105-10409-00

$7.06

4

NUT, SELF LOCKING (3G1)

90185-10091-00

$6.62

5

TENSIONER

10V-22178-00-00

$6.38

6

BUSH

4V4-22184-00-00

$3.57

7

WASHER, PLATE(3RR)

90201-133P2-00

$6.85

8

BOLT (23X)

90109-08705-00

$12.78

9

NUT, SELF-LOCKING(3BN)

90185-08146-00

$8.49

10

BUSH, SOLID (J22)

90381-15040-00

$23.54

11

O-RING (22U)

93210-15566-00

$5.78

12

NIPPLE, GREASE

93700-06M03-00

$7.15

13

STAY, ENGINE 2

3FA-21315-00-00

Unavailable

14

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

15

BRACKET, 1

3FA-2115K-10-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

$1.49

17

TOOL KIT

3GB-28100-01-00

Unavailable

18

GAUGE, AIR

1NV-2811A-01-00

$49.11

19

O-RING (102)

93210-41041-00

$5.86
