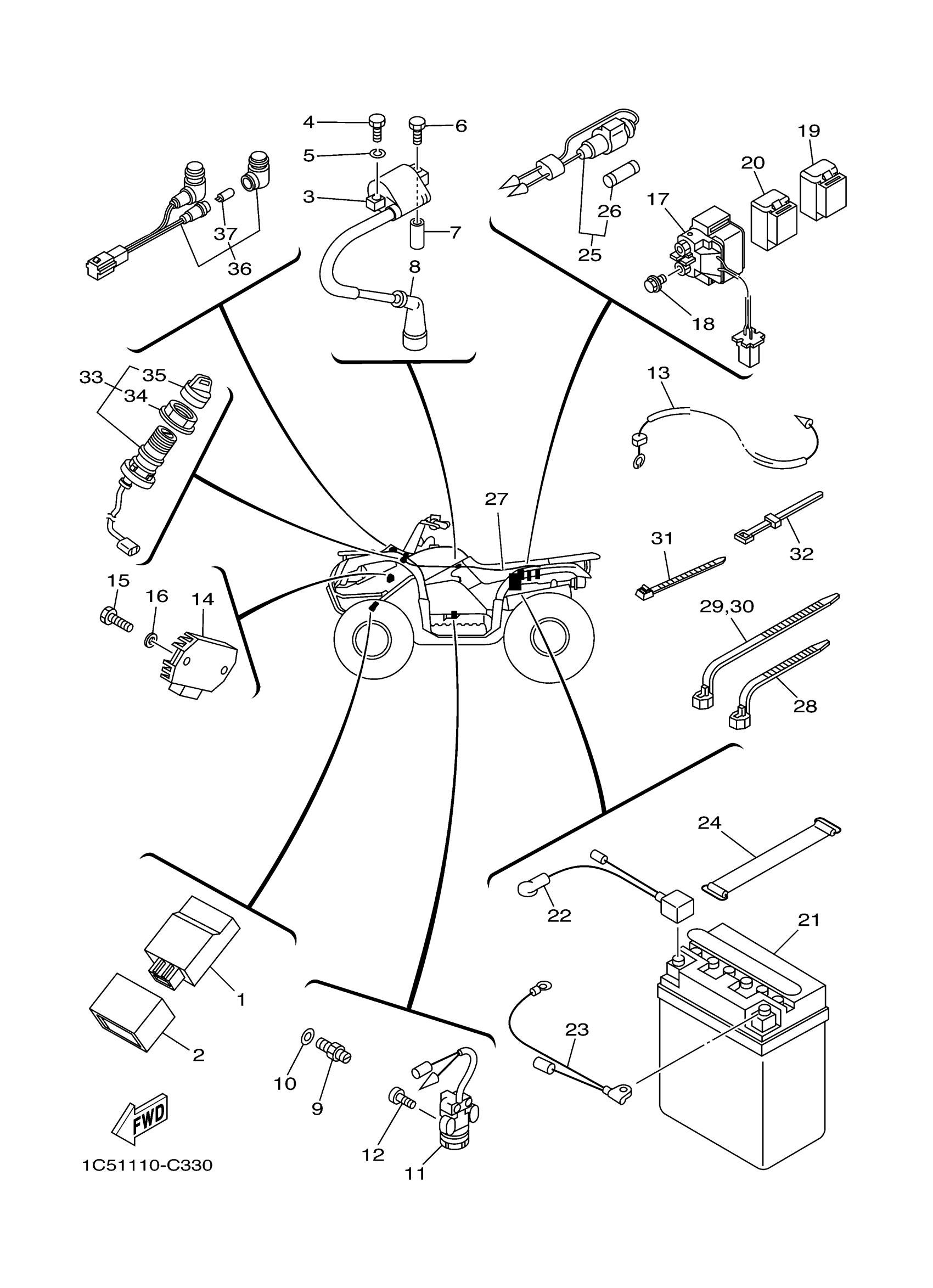

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3FA-85540-20-00

$323.91

2

BAND

1B2-H5546-00-00

Unavailable

3

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

4

BOLT, HEXAGON

97017-06020-00

$2.55

5

WASHER, SPRING

92907-06100-00

$1.00

6

BOLT (21V)

90109-06723-00

$6.71

7

HOSE (L200)

90445-07176-00

$7.11

8

PLUG CAP ASSY

3NS-82370-00-00

$31.58

9

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$32.60

10

GASKET (1KH,1.0T)

90430-10148-00

$4.74

11

SWITCH

3FA-82627-00-00

$104.05

12

SCREW(3FA)

90149-05283-00

$6.68

13

WIRE, LEAD

3FA-82541-00-00

$8.82

14

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$224.13

15

BOLT, HEXAGON

97017-06020-00

$2.55

16

WASHER(6TA)

92907-06600-00

$0.78

17

STARTER RELAY ASSY (MS5E-661)

3MW-81940-01-00

$72.16

18

BOLT, SMALL FLANGE

95027-06008-00

$5.60

19

RELAY ASSY (29U-93)

29U-81950-93-00

$67.77

20

RELAY ASSY (2NL-92)

2NL-81950-92-00

$67.35

21

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

22

WIRE, PLUS LEAD

3FA-82115-01-00

$13.51

23

WIRE, MINUS LEAD

1VJ-82116-00-00

Unavailable

24

BAND, BATTERY

133-82131-00-00

$21.78

25

FUSE HOLDER ASSY

1UY-82150-00-00

$50.68

26

FUSE (15A)

1UY-82151-00-00

Unavailable

27

WIRE HARNESS ASSY

1C5-82590-00-00

$247.89

28

CLAMP(4FM)

90464-15195-00

$2.77

29

CLAMP(4FM)

90464-15195-00

$2.77

30

CLAMP(4FM)

90464-15195-00

$2.77

31

CLAMP

90465-10098-00

$2.24

32

BAND, SWITCH CORD

437-83936-01-00

$4.63

33

MAIN SWITCH ASSY

5LP-82510-01-00

$60.18

34

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

35

CAP, KEY

3HN-82579-00-00

$12.27

36

PILOT LIGHT ASSY

5TE-83530-00-00

$38.48

37

BULB (12V-1.7W)

3FV-83517-00-00

$6.30
