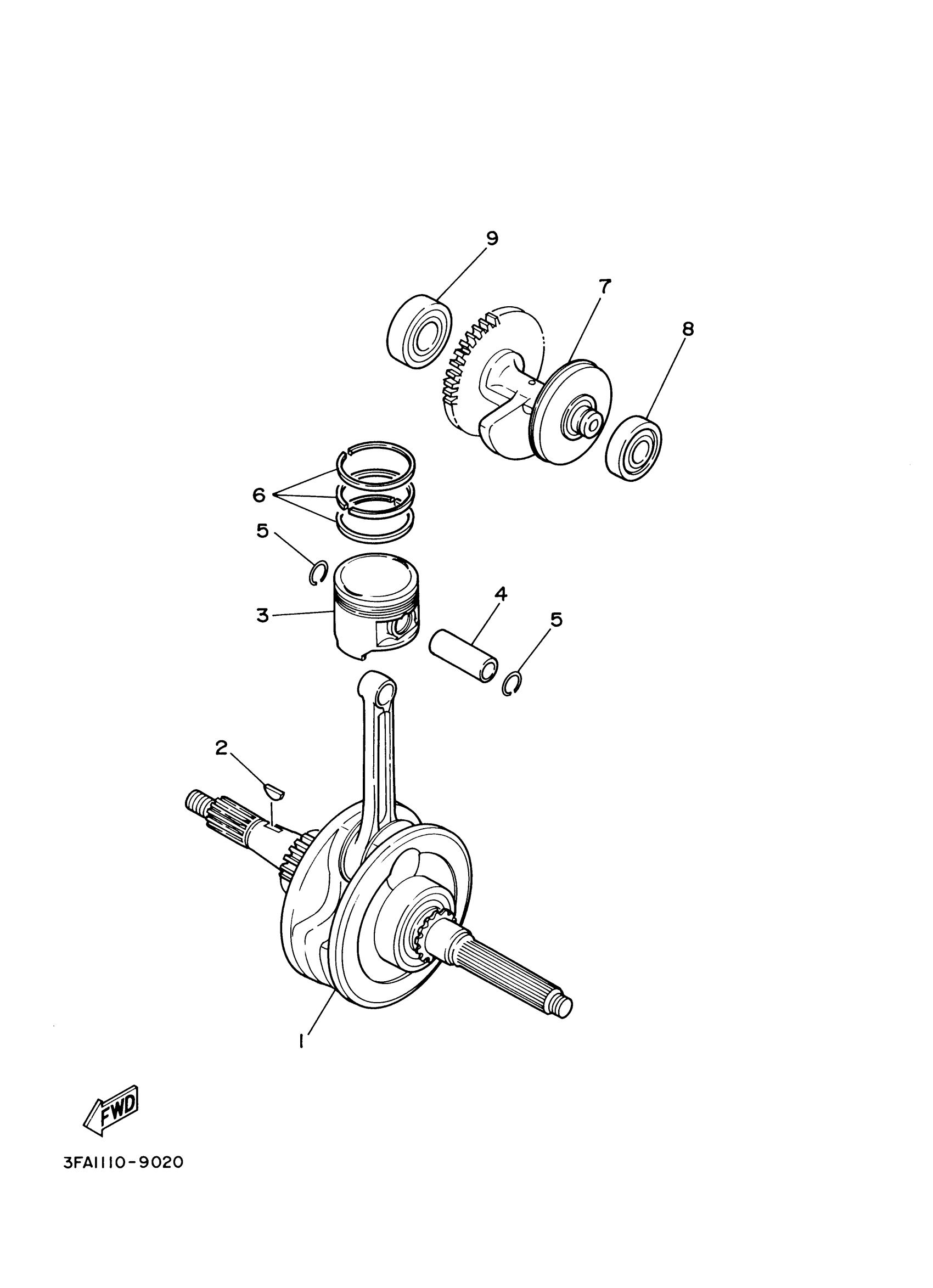

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

3FA-11400-00-00

$620.82

2

KEY, WOODRUFF(1WG)

90280-03047-00

$4.86

3

PISTON (STD)

3FA-11631-00-A0

$94.23

3

PISTON (0.50MM O/S)

3FA-11636-00-00

$94.11

3

PISTON (1.00MM O/S)

3FA-11638-00-00

$93.12

4

PIN, PISTON

22K-11633-01-00

$23.46

5

CIRCLIP (22F)

93450-14088-00

$3.38

6

PISTON RING SET (STD)

50M-11610-00-00

$60.93

6

PISTON RING SET (2ND O/S)

50M-11610-20-00

$63.74

6

PISTON RING SET (4TH O/S)

50M-11610-40-00

$37.68

7

BALANCER ASSY

3FA-11500-00-00

$174.38

8

BEARING

93306-20228-00

$37.71

9

BEARING(50M)

93306-20336-00

$26.58
