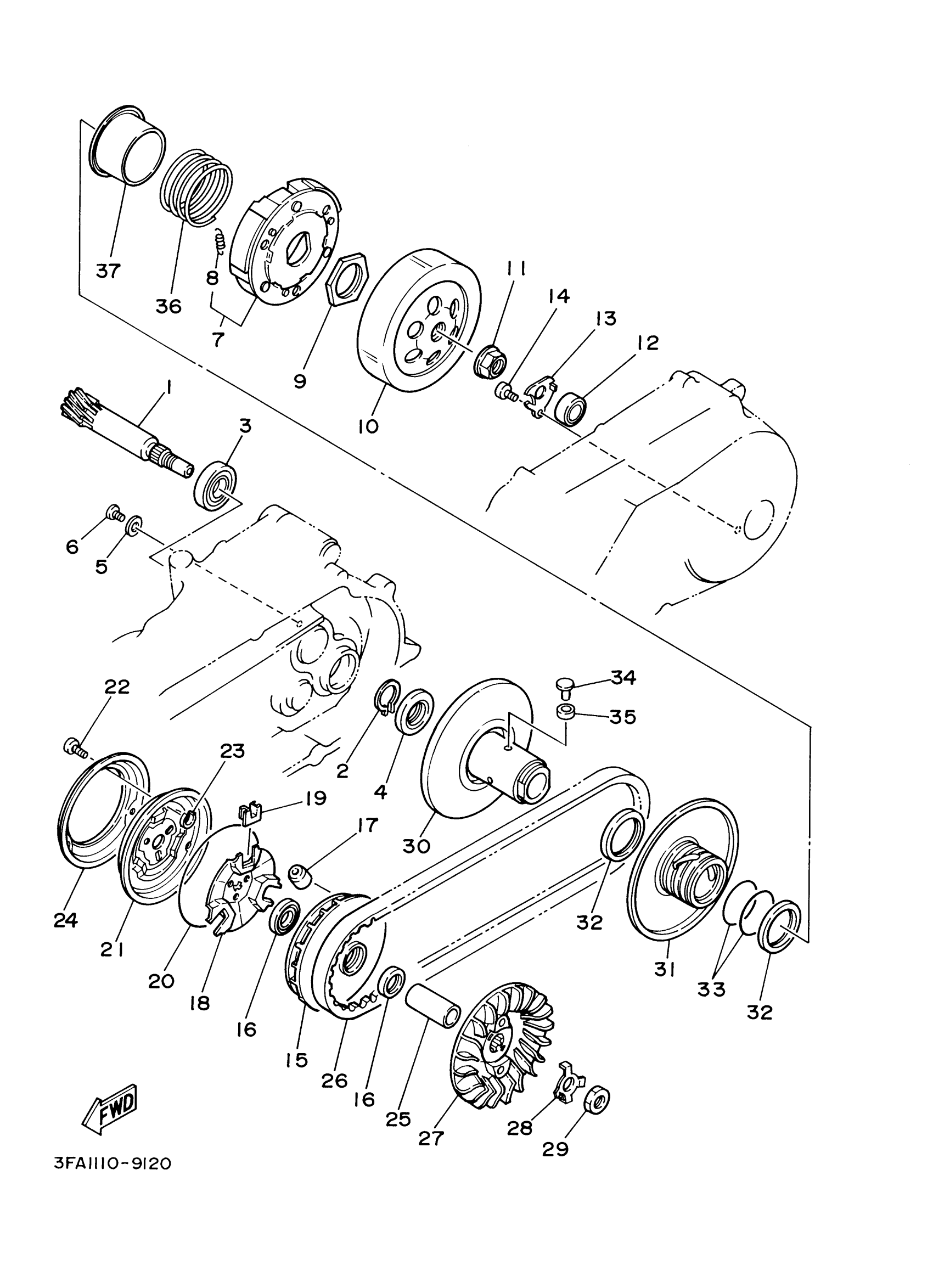

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (14T)

3FA-16111-00-00

$133.84

2

CIRCLIP(1EY)

99009-22400-00

$6.17

3

BEARING(50M)

93306-00433-00

$35.09

4

OIL SEAL(50M)

93102-22335-00

$11.62

5

WASHER, PLATE (371)

90201-06412-00

$5.38

6

SCREW, PAN

98507-06010-00

$2.69

7

CLUTCH CARRIER ASSY

3FA-16620-01-00

Unavailable

8

SPRING, CLUTCH WEIGHT 1

14T-16626-01-00

Unavailable

9

NUT (5G3)

90170-36279-00

$13.51

10

CLUTCH HOUSING COMP.

1C5-16611-01-00

$86.28

11

NUT(22F)

90179-14469-00

$15.09

12

BEARING(50M)

93399-99918-00

$51.97

13

PLATE, BEARING COVER

50M-15381-00-00

Unavailable

14

SCREW, PAN

98507-06010-00

$2.69

15

PRIMARY SLIDING SHEAVE COMP.

3FA-17620-01-00

$131.40

16

OIL SEAL

93101-21170-00

$13.51

17

WEIGHT

50M-17632-00-00

$17.29

18

CAM

50W-17623-00-00

$26.88

19

SLIDER

4CW-E7653-00-00

$0.89

20

O-RING(50M)

93210-97690-00

$11.47

21

PRIMARY SHEAVE CAP COMP.

50M-17630-00-00

$165.52

22

SCREW, BIND (682)

98980-04012-00

$2.68

23

WASHER, CLAW(50M)

90214-04038-00

$8.85

24

PLATE

50M-1763E-01-00

$35.28

25

COLLAR(3FA)

90387-161V0-00

$30.80

26

V-BELT

3FA-17641-00-00

$80.77

27

SHEAVE, PRIMARY FIXED

3FA-17611-01-00

$64.14

28

WASHER, LOCK(50M)

90215-14236-00

$7.00

29

NUT(50M)

90170-12338-00

$8.86

30

SECONDARY FIXED SHEAVE COMP.

3FA-17660-02-00

Unavailable

31

SECONDARY SLIDING SHEAVE

3FA-17670-00-00

$73.68

32

OIL SEAL

93104-41119-00

$14.18

33

O-RING(1EY)

93210-43713-00

$4.21

34

PIN, GUIDE

50W-17664-00-00

Unavailable

35

COLLAR, GUIDE

50W-17674-00-00

$6.34

36

SPRING, COMPRESSION(3FA)

90501-505F1-00

$22.43

37

SEAT, SECONDARY SPRING

3FA-17684-00-00

Unavailable
