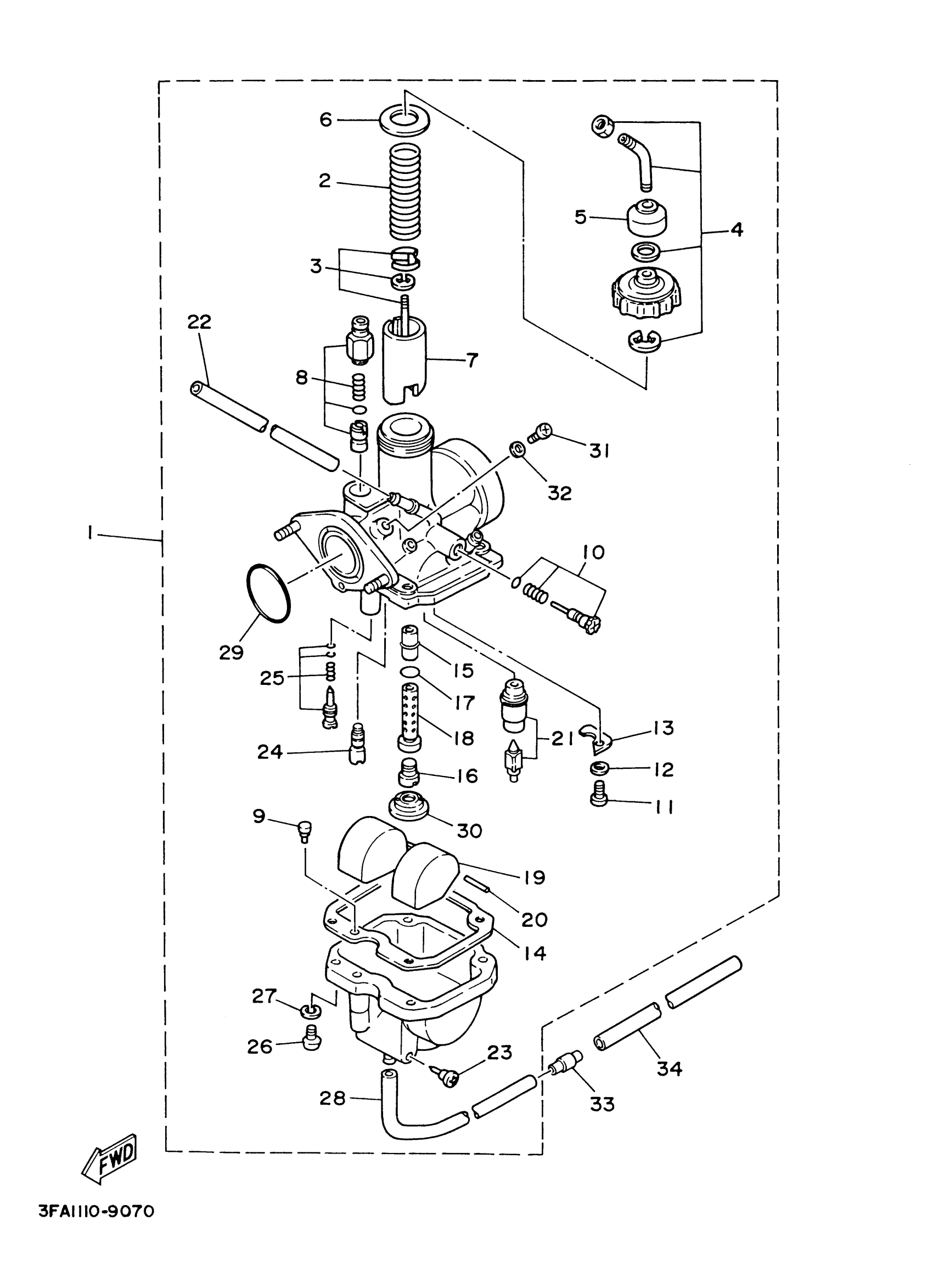

Yamaha YFM125S (GRIZZLY 125) 1C51 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5VJ-14101-10-00

$261.35

2

. SPRING, THROTTLE VALVE

21V-14131-00-00

Unavailable

3

NEEDLE SET

3FA-1490J-10-00

Unavailable

4

CABLE ADJUST SCREW SET

10X-14106-00-00

$35.45

5

CAP

3X3-14169-00-00

$15.20

6

GASKET

4U5-14126-00-00

$11.47

7

. VALVE, THROTTLE 1

3FA-14112-25-00

Unavailable

8

STARTER SET

5VJ-1410A-00-00

$71.08

9

. JET, STARTER

18M-14144-09-00

Unavailable

10

THROTTLE SCREW SET

18G-14103-00-00

$24.12

11

SCREW, PAN HEAD (J10)

98580-03008-00

$2.23

12

WASHER, SPRING

92990-03100-00

$6.17

13

PLATE

21V-14146-00-00

$14.09

14

GASKET, FLOAT CHAMBER

24W-14184-00-00

$20.17

15

. NOZZLE, MAIN

21V-1414M-31-00

Unavailable

16

JET,MA1N #77.5

620-1423A-66-00

Unavailable

17

O-RING

583-14561-00-00

$4.74

18

PIPE

3FA-14148-00-00

$25.78

19

FLOAT

21V-14185-00-00

$59.06

20

PIN, FLOAT

127-14186-00-00

$6.23

21

NEEDLE VALVE ASSY

5HH-14190-18-00

$39.51

22

PIPE

26H-14197-01-00

$34.32

23

PLUG, DRAIN

12R-14191-00-00

$14.25

24

JET, PILOT (# 12.5)

1NT-14142-12-00

$10.38

25

PILOT SCREW SET

21V-14105-00-00

$14.95

26

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

27

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

28

HOSE (L1500)

90445-084J0-00

$16.40

29

O-RING

24W-14147-00-00

$9.49

30

WASHER, MAIN JET

5V7-14153-00-00

$18.31

31

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.01

32

. WASHER

59V-14962-00-00

$5.53

33

PIPE 2,OVERFLOW

24W-14193-00-00

$35.28

34

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$8.95
