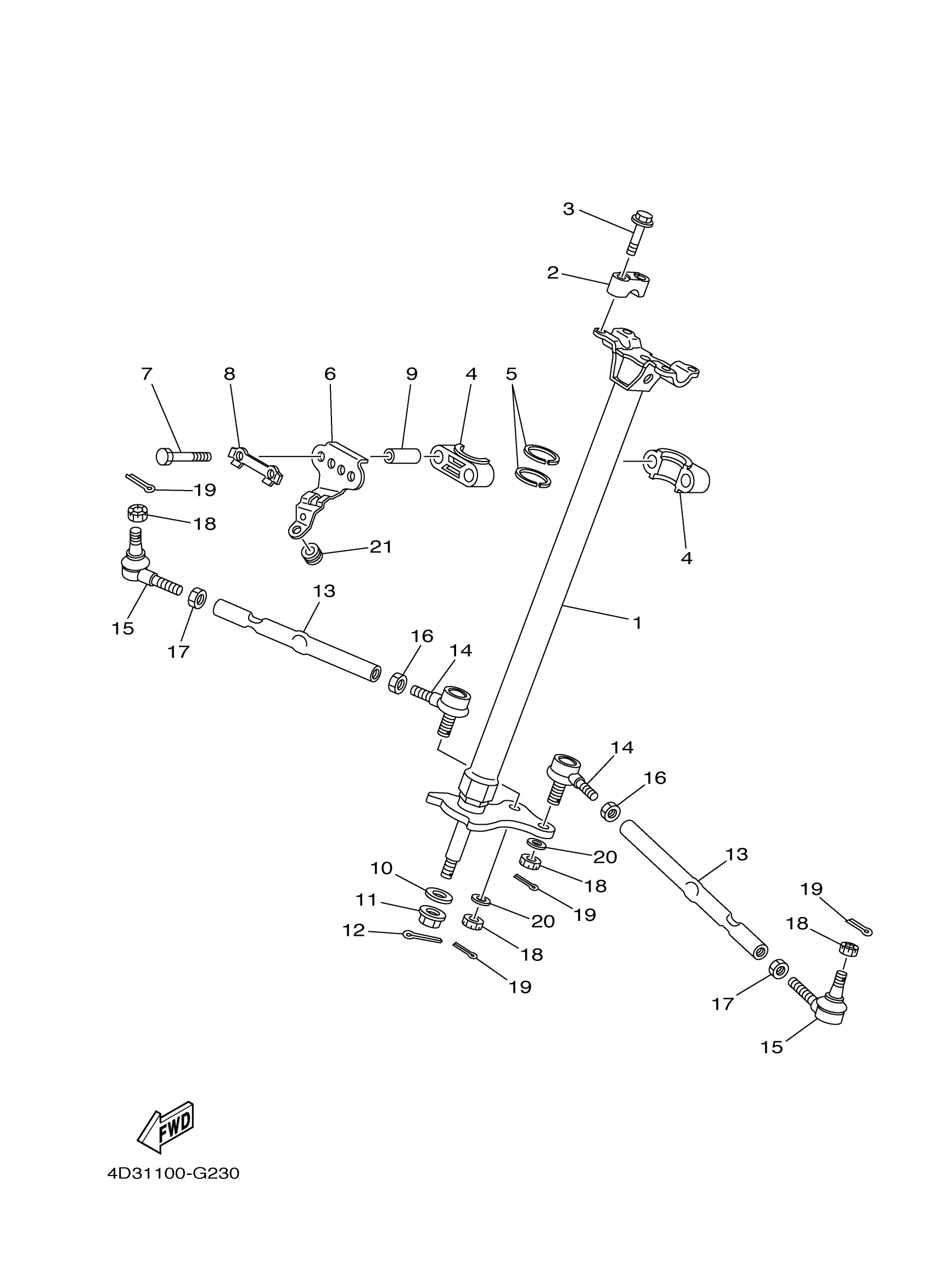

Yamaha YFM125RDW (RAPTOR 125) 2PA70 2013 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

4D3-23813-00-00

$238.35

2

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

3

BOLT, FLANGE(6TA)

95817-08030-00

$5.75

4

PLANE BEARING, STEERING

1UY-23812-00-00

$19.75

5

OIL SEAL(1UY)

93112-31011-00

$7.01

6

BRACKET, STEERING LOWER

4D3-23868-00-00

Unavailable

7

BOLT, HEXAGON

97017-08055-00

$6.40

8

WASHER, LOCK 1

1UY-23894-01-00

$6.39

9

COLLAR(85G)

90387-106T4-00

$10.53

10

WASHER, PLATE

90201-10036-00

$5.86

11

NUT, SELF-LOCKING

90185-10019-00

$6.56

12

PIN, COTTER

91490-20025-00

$1.23

13

ROD, TIE

4D3-23831-00-00

$33.56

14

JOINT, UNIVERSAL 1

1UY-23841-01-00

$62.23

15

JOINT, UNIVERSAL 2

1UY-23845-01-00

$62.23

16

NUT (682)

95380-10700-00

$5.27

17

NUT

90170-10010-00

Unavailable

18

NUT, CASTLE

90171-10001-00

Unavailable

19

PIN, COTTER

91490-20025-00

$1.23

20

WASHER (25G)

90209-10229-00

Unavailable

21

GROMMET(2GH)

90480-12475-00

Unavailable
