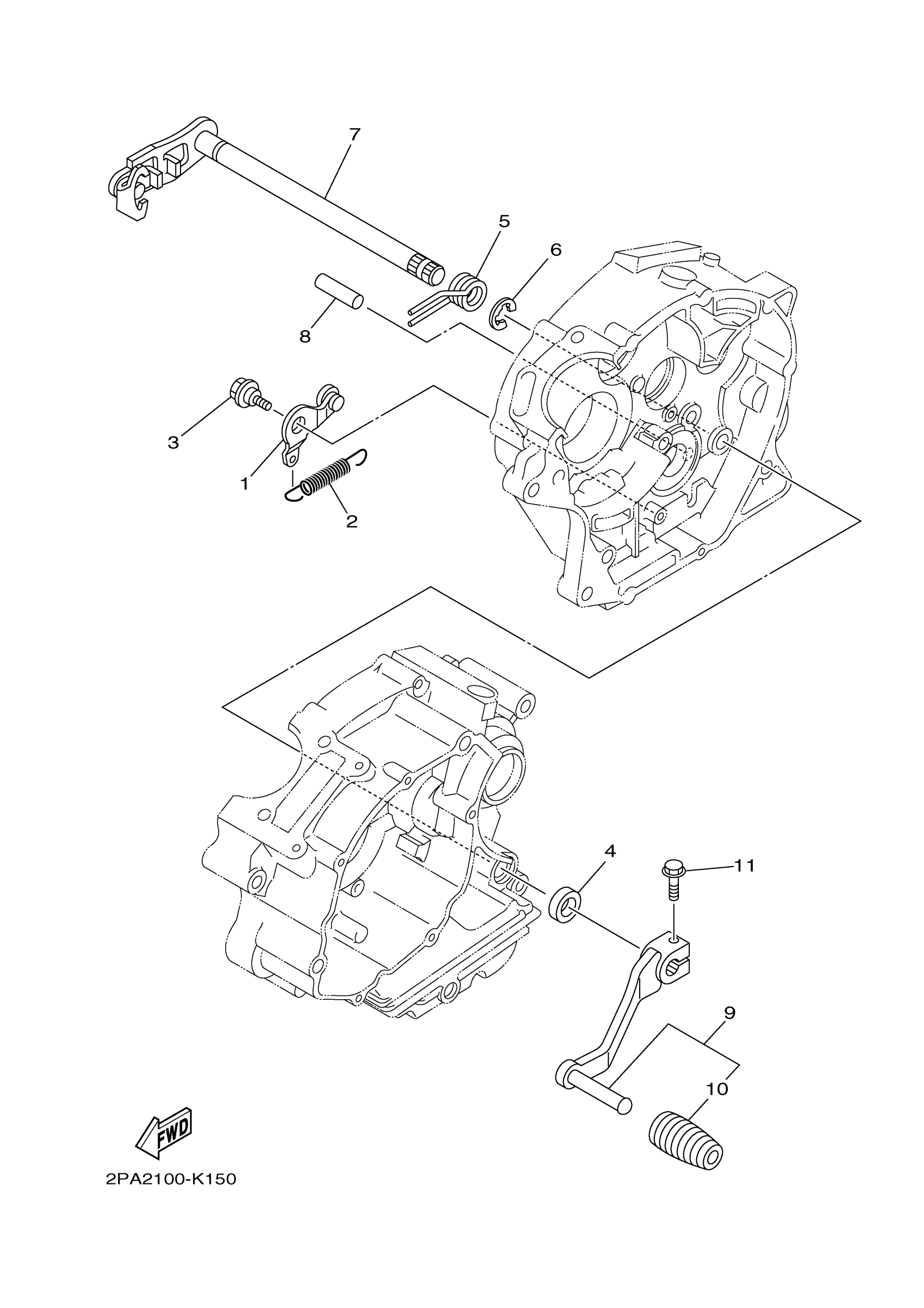

Yamaha YFM125RDW (RAPTOR 125) 2PA70 2013 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER LEVER ASSY

5VL-E8140-00-00

$5.14

2

SPRING

5VL-E8337-00-00

$6.29

3

BOLT,STOPPER 2

4FP-E8177-00-00

Unavailable

4

SEAL,OIL

93101-12812-00

Unavailable

5

SPRG.,TORSION

90508-32837-00

$7.53

6

CIRCLIP

99002-10600-00

$5.86

7

SHIFT SHAFT ASSY

5VL-E8101-02-00

$56.36

8

PIN,DOWEL

93608-30839-00

$5.53

9

SHIFT PEDAL ASSY

4D3-18110-10-00

$53.86

10

COVER, SHIFT PEDAL

5YT-18113-00-00

$5.99

11

BOLT, FLANGE

95817-06020-00

$2.52
