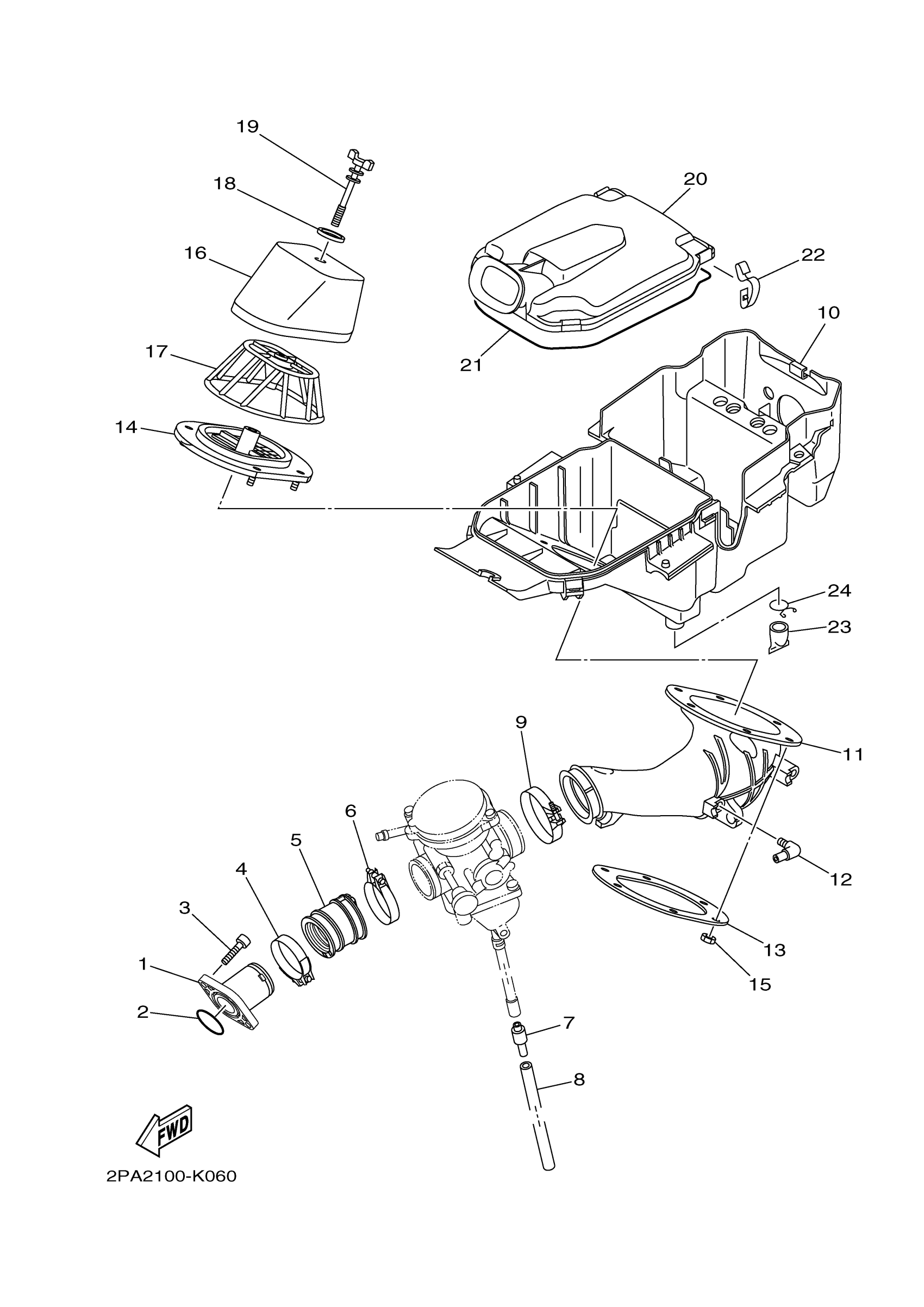

Yamaha YFM125RDW (RAPTOR 125) 2PA70 2013 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR

2PA-E3586-00-00

$82.99

2

O-RING (30X)

93210-30611-00

$13.49

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

BAND

2PA-13474-00-00

Unavailable

5

JOINT, CARBURETOR 2

2PA-13596-00-00

$72.99

6

HOSE CLAMP ASSY

90450-47002-00

$8.49

7

PIPE 2,OVERFLOW

24W-14193-00-00

$41.99

8

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

9

HOSE CLAMP ASSY

90450-58003-00

$18.99

10

CASE, AIR CLEANER 1

4D3-14411-00-00

$74.99

11

JOINT, AIR CLEANER 1

4D3-14453-01-00

Unavailable

12

PIPE

31A-14419-00-00

$7.99

13

PLATE

2XJ-14477-00-00

$42.99

14

HOLDER, GUIDE

4D3-14459-00-00

$42.99

15

NUT, U

95617-05100-00

$9.49

16

ELEMENT, AIR CLEANER

2XJ-14451-01-00

Unavailable

17

GUIDE

2XJ-14458-00-00

Unavailable

18

WASHER (4H7)

90209-06096-00

Unavailable

19

BOLT, WING

90122-06005-00

Unavailable

20

CAP, CLEANER CASE 1

4D3-14412-00-00

Unavailable

21

SEAL

1VJ-14462-00-00

Unavailable

22

HOOK

5TH-14436-00-00

Unavailable

23

SEAL

59V-14457-00-00

Unavailable

24

CLIP

90467-220A1-00

Unavailable
