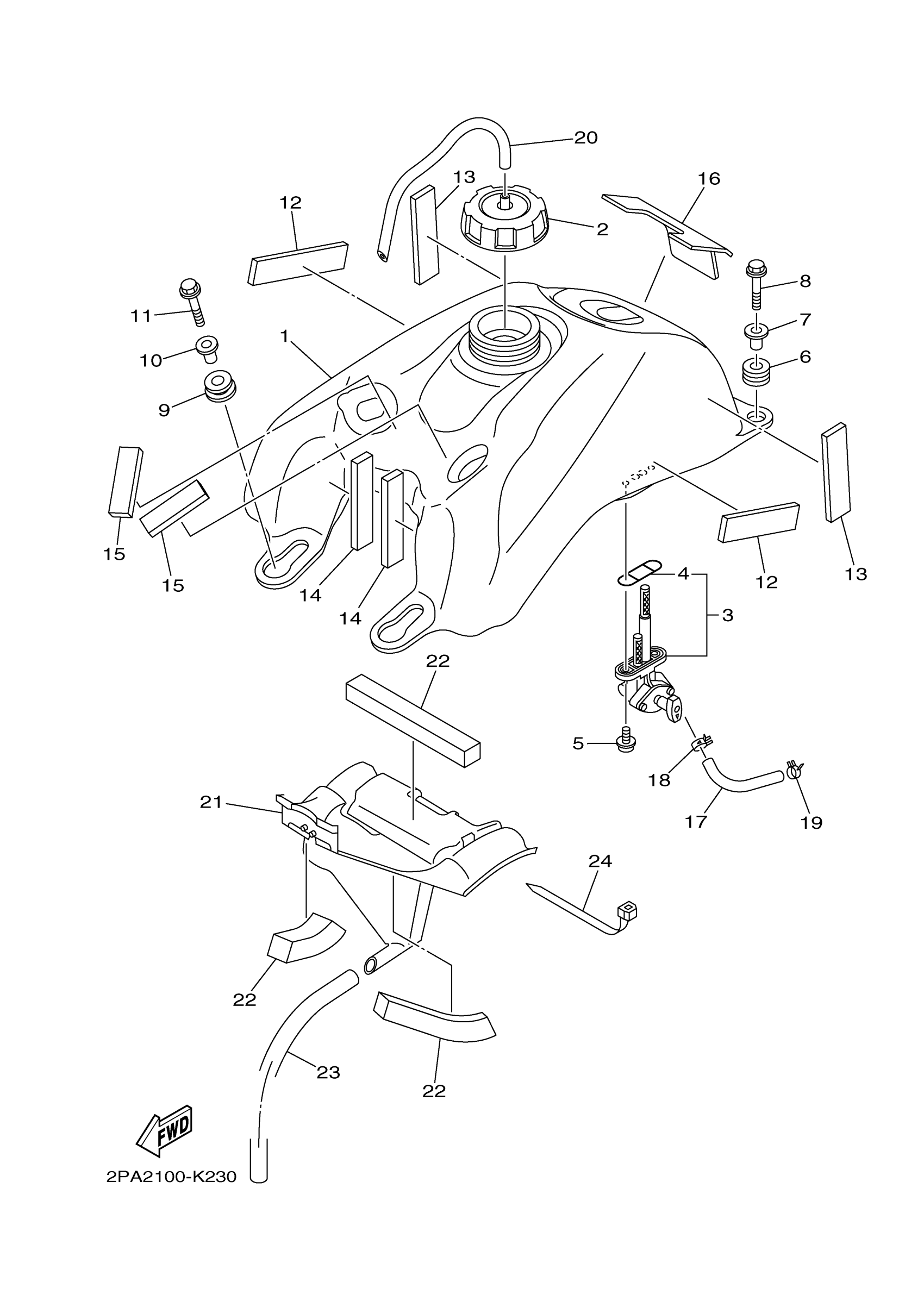

Yamaha YFM125RDW (RAPTOR 125) 2PA70 2013 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK COMP.
4D3-24110-10-00
Unavailable
3
FUEL COCK ASSY 1
4D3-24500-10-00
Unavailable
4
O-RING
1P6-24512-10-00
Unavailable
16
DAMPER 1
4D3-21541-00-00
Unavailable
17
HOSE (L105)
90445-11050-00
Unavailable
18
CLIP
90467-09120-00
Unavailable
19
CLIP
90467-100A2-00
Unavailable
20
HOSE (L340)
90445-08684-00
Unavailable
21
DAMPER, PLATE 1
4D3-2414H-00-00
Unavailable
22
DAMPER, LOCATING 2
4D3-24182-01-00
Unavailable
23
HOSE (L400)
90445-16007-00
Unavailable
24
CLAMP(4FM)
90464-15195-00
Unavailable
