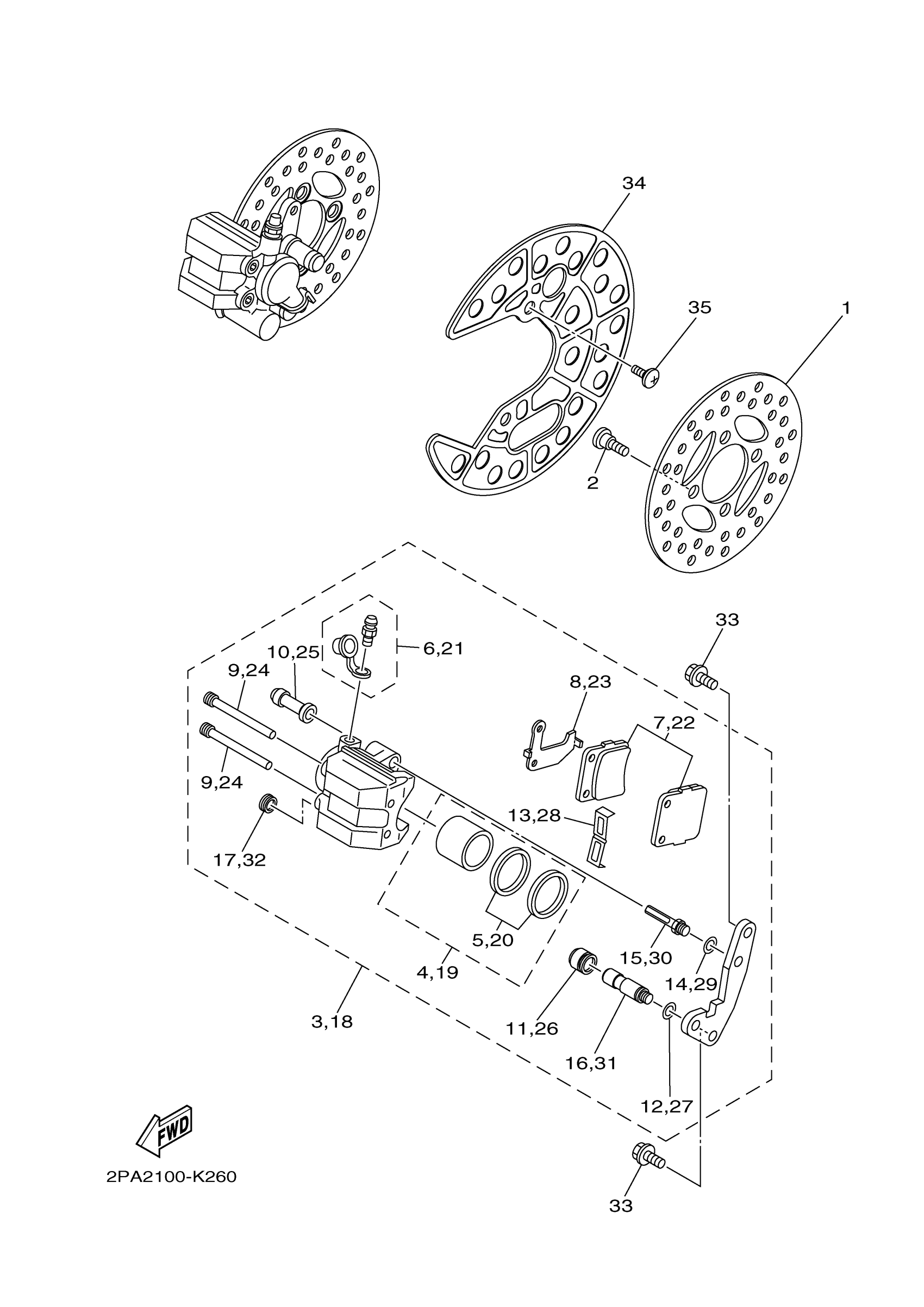

Yamaha YFM125RDW (RAPTOR 125) 2PA70 2013 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

2PA-2582T-00-00

Unavailable

2

BOLT

90109-08087-00

$8.49

3

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

5

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

6

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

7

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

8

SHIM, CALIPER

3GD-25827-00-00

Unavailable

9

PIN, PAD

3GD-25933-00-00

$28.99

10

BOOT 2

1UY-25937-51-00

$14.49

11

BOOT, CALIPER

1UY-25917-51-00

$6.99

12

SPRING, PAD

1UY-25934-51-00

$6.99

13

SUPPORT, PAD

1UY-25919-51-00

$22.99

14

WASHER, SPRING

1UY-25938-51-00

Unavailable

15

BOLT

1UY-25926-51-00

$4.47

16

PIN, SLIDE

3GD-25914-00-00

Unavailable

17

DUST PLUG

3GD-25916-00-00

Unavailable

18

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

Unavailable

19

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

20

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

21

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

22

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

23

SHIM, CALIPER

3GD-25828-00-00

Unavailable

24

PIN, PAD

3GD-25933-00-00

$28.99

25

BOOT 2

1UY-25937-51-00

$14.49

26

BOOT, CALIPER

1UY-25917-51-00

$6.99

27

SPRING, PAD

1UY-25934-51-00

$6.99

28

SUPPORT, PAD

1UY-25919-51-00

$22.99

29

WASHER, SPRING

1UY-25938-51-00

Unavailable

30

BOLT

1UY-25926-51-00

$4.47

31

PIN, SLIDE

3GD-25914-00-00

Unavailable

32

DUST PLUG

3GD-25916-00-00

Unavailable

33

BOLT, FLANGE

90105-08161-00

Unavailable

34

RING, WHEEL 1 (LEFT)

5YT-2514A-00-00

Unavailable

35

SCREW

90149-06117-00

Unavailable
