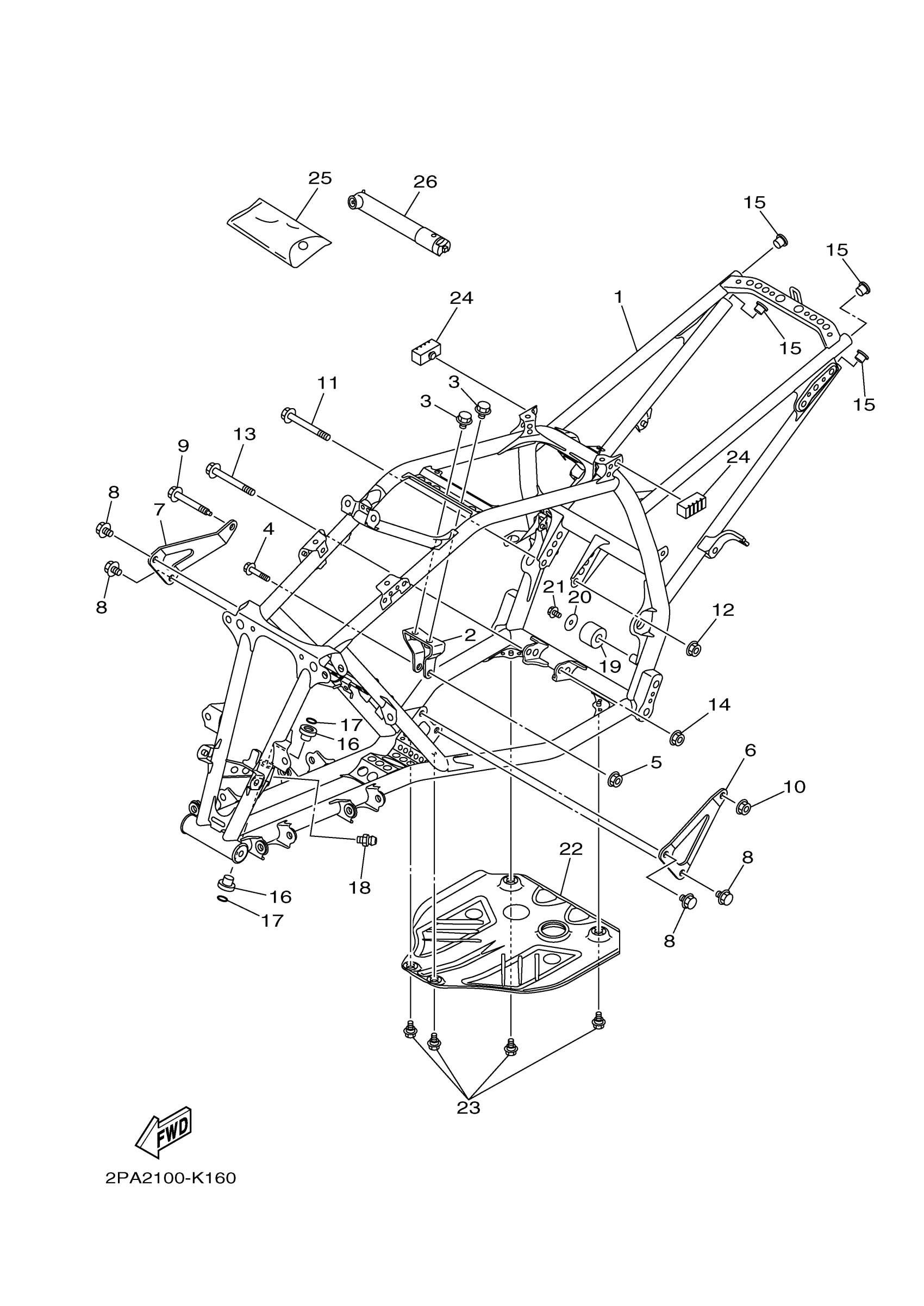

Yamaha YFM125RDW (RAPTOR 125) 2PA70 2013 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2PA-21110-09-00

Unavailable

2

STAY, ENGINE 2

2PA-21315-00-00

Unavailable

3

BOLT, FLANGE

95817-08014-00

$5.60

4

BOLT, FLANGE

90105-08089-00

$5.60

5

NUT, SELF-LOCKING

95602-08200-00

$3.20

6

STAY, ENGINE 3

2PA-21316-00-00

$18.49

7

STAY, ENGINE 3

2PA-21317-00-00

$18.49

8

BOLT, FLANGE

95817-08014-00

$5.60

9

BOLT, FLANGE

90105-08235-00

$4.46

10

NUT, SELF-LOCKING

95602-08200-00

$3.20

11

BOLT, FLANGE

90105-08208-00

$3.35

12

NUT, SELF-LOCKING

95602-08200-00

$3.20

13

BOLT, FLANGE

90105-08208-00

$3.35

14

NUT, SELF-LOCKING

95602-08200-00

$3.20

15

PLUG(55K)

90338-16148-00

$11.49

16

BUSH, SOLID (J22)

90381-15040-00

Unavailable

17

O-RING (22U)

93210-15566-00

Unavailable

18

NIPPLE, GREASE

93700-06M03-00

Unavailable

19

TENSIONER

4D3-22178-00-00

Unavailable

20

WASHER, PLATE

90201-08054-00

Unavailable

21

BOLT, FLANGE

95817-08012-00

Unavailable

22

PROTECTOR, ENGINE

4D3-21471-00-00

Unavailable

23

BOLT

90109-06172-00

Unavailable

24

PAD, SEAT

3C3-24741-00-00

Unavailable

25

TOOL KIT

2PA-28100-00-00

Unavailable

26

GAUGE, AIR

1NV-2811A-01-00

Unavailable
