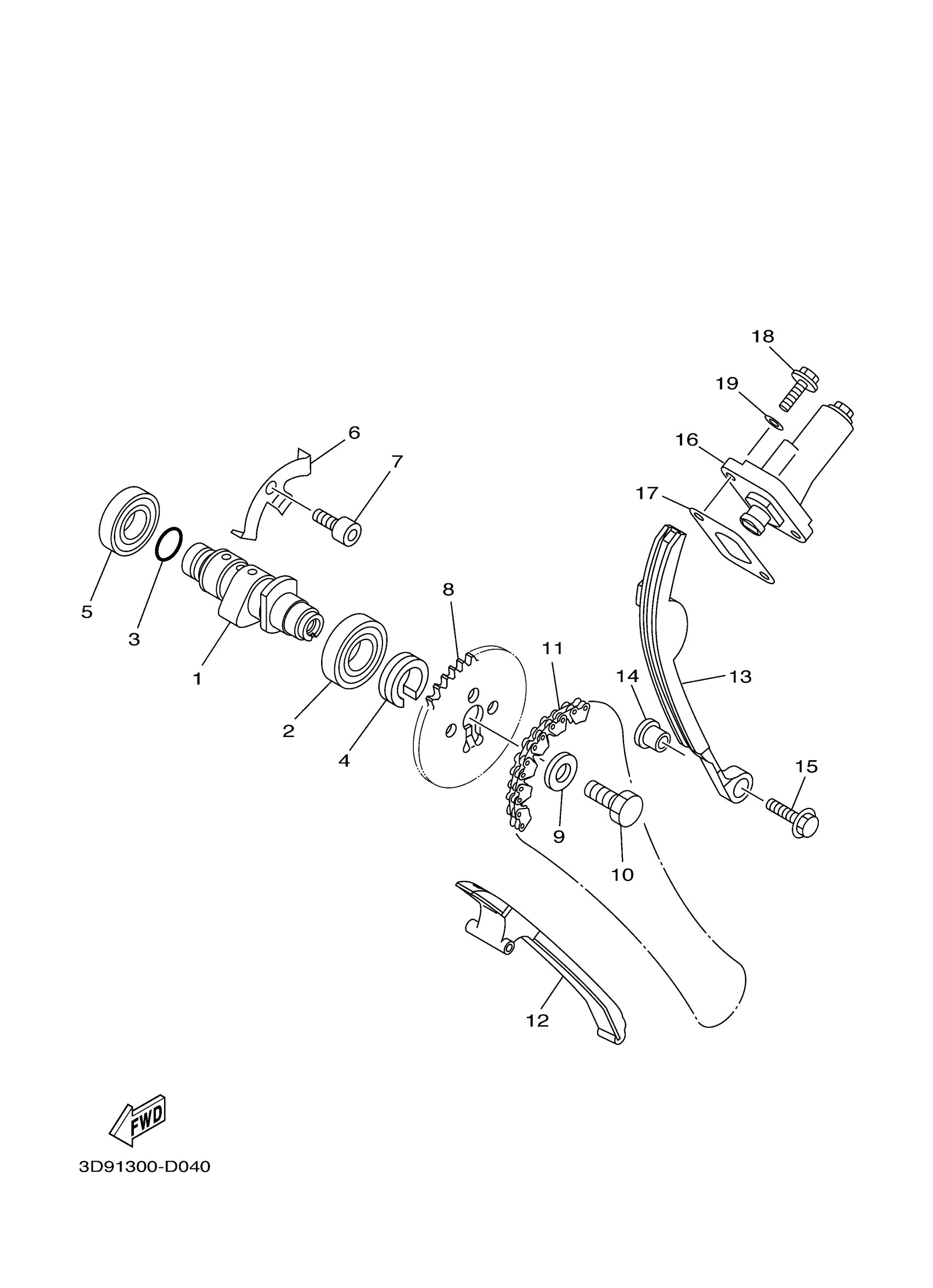

Yamaha YFM125RDW (RAPTOR 125) 2PA70 2013 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5VL-E2171-10-00

$107.94

2

BEARING

93306-003X6-00

$25.98

3

O-RING

93210-108B1-00

$1.09

4

COLLAR

90387-16804-00

$6.80

5

BEARING

93306-002YU-00

$28.98

6

PLATE

5VL-E111F-00-00

$1.88

7

BOLT,SOCKET

91317-06012-00

$5.75

8

SPROCKET

5VL-E2176-10-00

$37.04

9

WASHER (853)

90201-08326-00

$5.75

10

BOLT

90101-08055-00

$5.17

11

CHAIN

94568-A4090-00

$51.86

12

GUIDE STOPPER 1

5YY-E2231-00-00

$13.61

13

GUIDE STOPPER 2

5YY-E2241-00-00

$37.62

14

COLLAR

5VL-E5598-00-00

$1.47

15

BOLT, FLANGE

95817-06020-00

$2.52

16

TENSIONER ASSY, CAM CHAIN

5VL-12210-10-00

Unavailable

17

GASKET, TENSIONER C

5VL-E2213-10-00

Unavailable

18

BOLT, FLANGE

95022-06016-00

Unavailable

19

GASKET 256113960000

90430-06014-00

Unavailable
