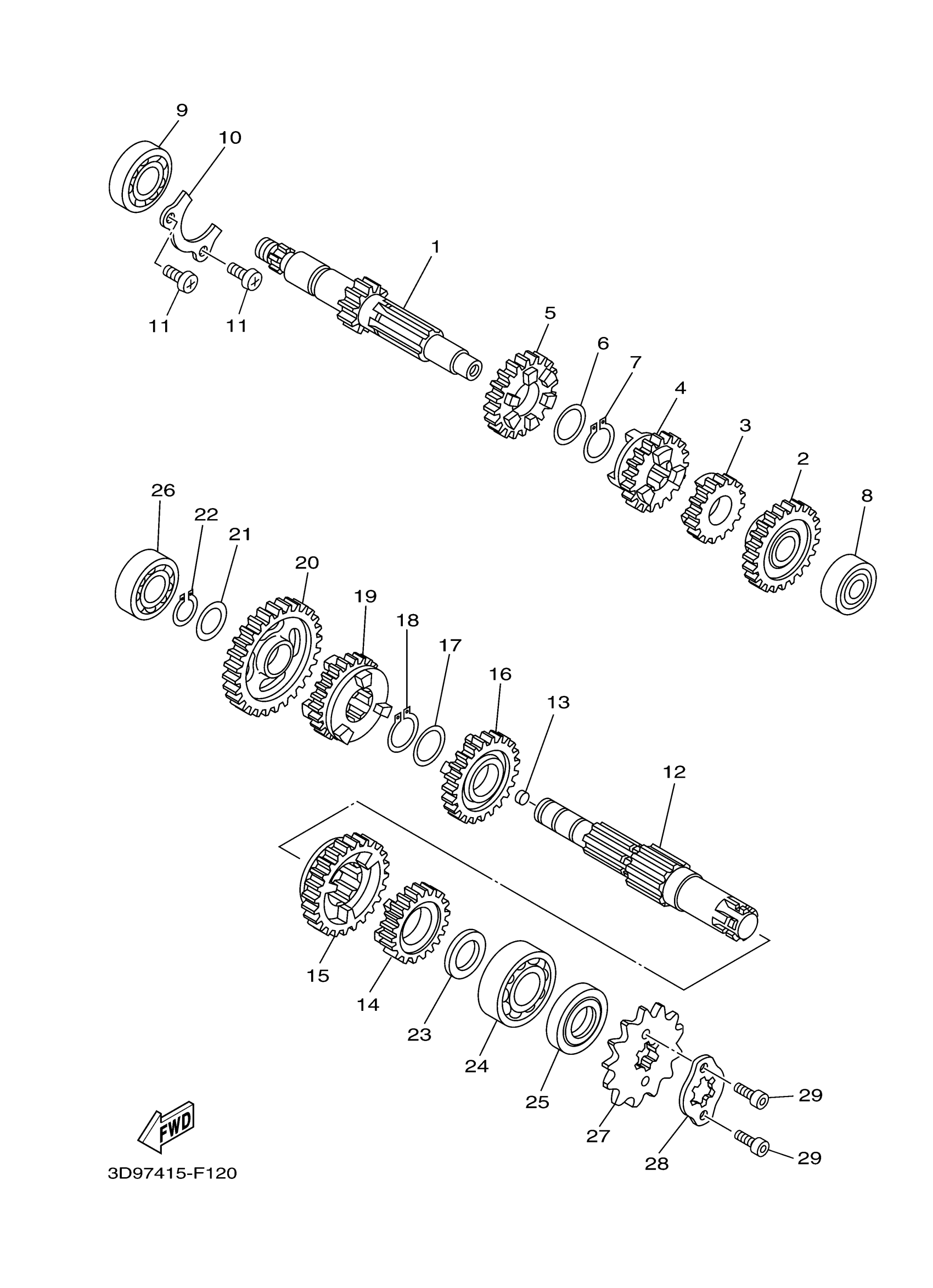

Yamaha YFM125RBW (RAPTOR 125) 2PA40 2012 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5VL-E7411-00-00

Unavailable

2

GEAR, 5TH PINION

5VL-E7151-00-00

$23.99

3

GEAR, 2ND PINION

5VL-E7121-00-00

$29.99

4

GEAR, 3RD PINION

5VL-E7131-00-00

$36.99

5

GEAR, 4TH PINION

5VL-E7141-00-00

$33.99

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

BEARING

93306-20121-00

$36.99

9

BEARING

93306-253YJ-00

$31.99

10

PLATE, COVER

5VL-E7471-00-00

Unavailable

11

SCREW, PAN HEAD

98512-06012-00

$7.49

12

DRIVE AXLE ASSY

5VL-E7402-00-00

$65.99

13

PLUG

90331-07031-00

Unavailable

14

GEAR, 5TH WHEEL

5VL-E7251-00-00

Unavailable

15

GEAR, 2ND WHEEL

5VL-E7221-00-00

Unavailable

16

GEAR, 3RD WHEEL

5VL-E7231-00-00

Unavailable

17

WASHER PLATE 132172160000

90201-20266-00

$9.49

18

CIRCLIP (525)

93410-20038-00

$3.76

19

GEAR, 4TH WHEEL

5VL-E7241-00-00

Unavailable

20

GEAR, 1ST WHEEL

5VL-E7211-00-00

Unavailable

21

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

22

CIRCLIP(1AR)

99009-15400-00

Unavailable

23

WASHER PLATE 820473590000

90201-20272-00

Unavailable

24

BEARING

93306-204YD-00

Unavailable

25

OIL SEAL

93102-20812-00

Unavailable

26

BEARING

93306-202XP-00

Unavailable

27

SPROCKET, DRIVE

93822-14813-00

Unavailable

28

HOLDER, SPROCKET

3D9-E7456-01-00

Unavailable

29

BOLT

91312-05010-00

Unavailable
