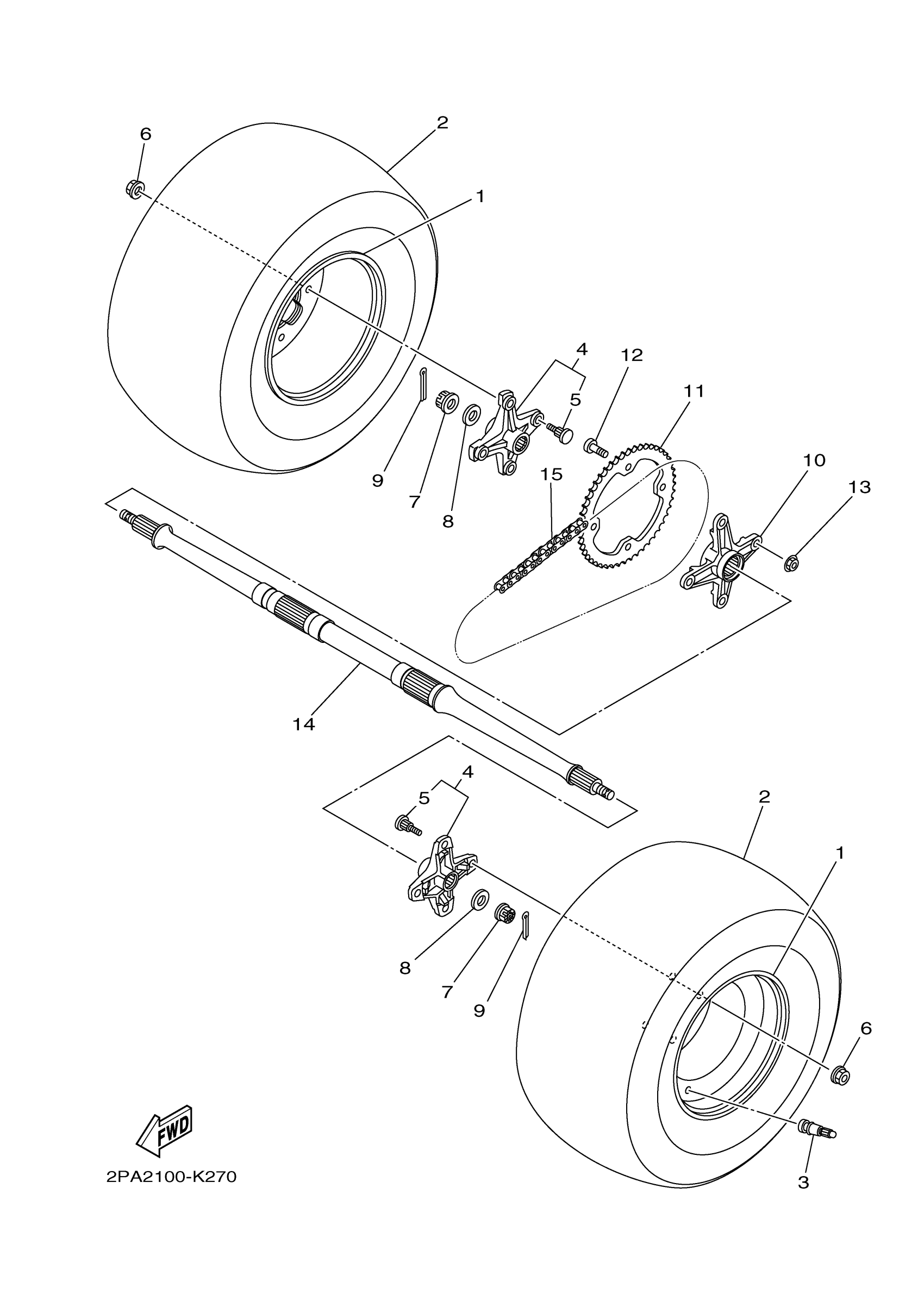

Yamaha YFM125RBW (RAPTOR 125) 2PA40 2012 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL COMP.

2PA-25390-00-00

$148.99

2

AT 18 X 9-8 - M940

94109-08008-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

5

BOLT, SERRATION

90114-10013-00

$7.49

6

NUT, FLANGE(3BM)

95704-10500-00

$4.29

7

NUT, CASTLE

90171-14004-00

$12.49

8

WASHER, PLATE

90201-14021-00

$5.60

9

PIN, COTTER

91490-30030-00

$8.49

10

COLLAR, SPROCKET AXLE

5YT-25386-00-00

$151.99

11

SPROCKET, DRIVEN (48T)

2PA-25448-00-00

$42.99

12

BOLT

90109-10010-00

$7.49

13

NUT, S/L FLANGE

95602-10200-00

$4.82

14

AXLE, WHEEL

4D3-F5381-09-00

Unavailable

15

CHAIN

94582-14114-00

Unavailable
