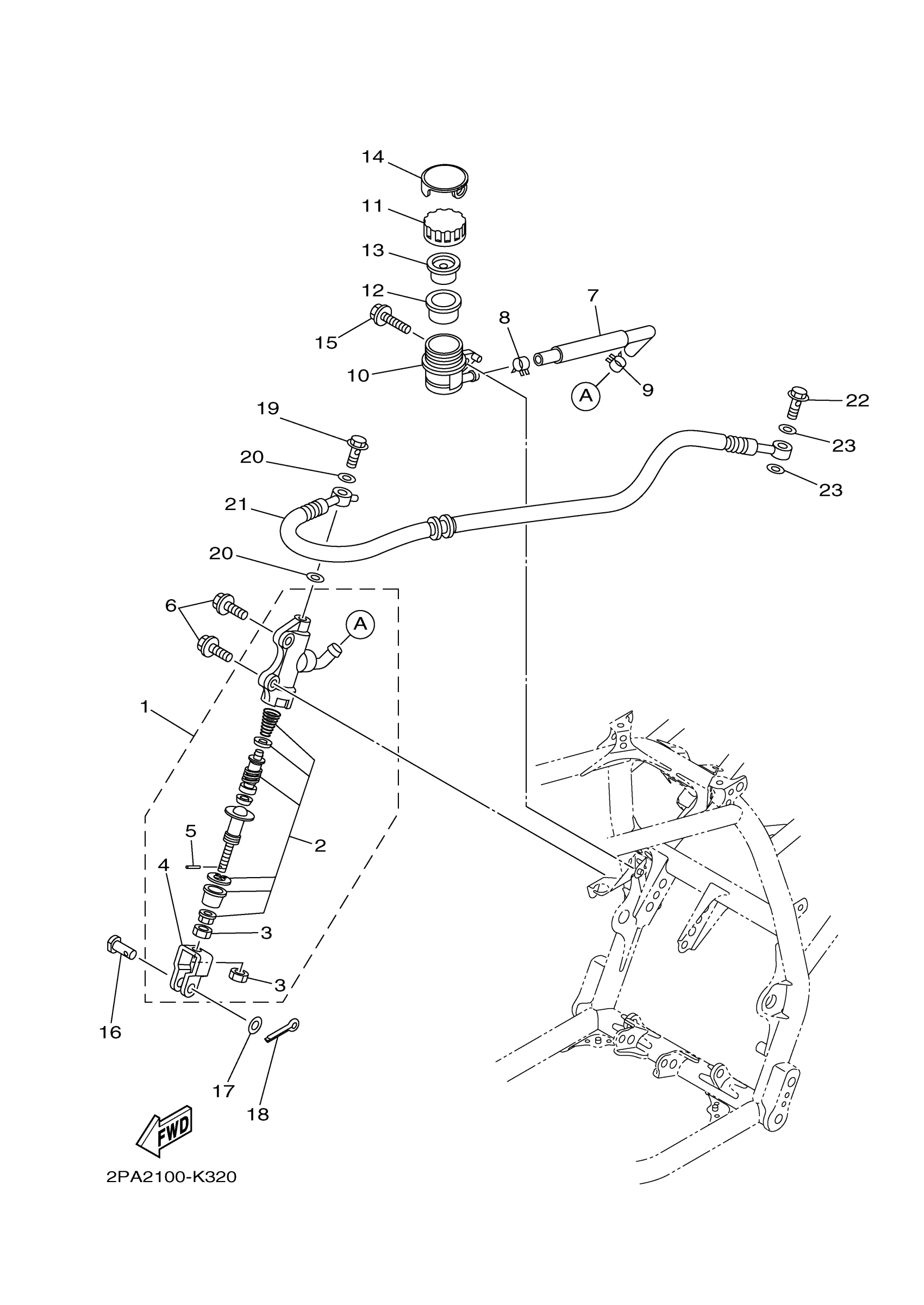

Yamaha YFM125RBW (RAPTOR 125) 2PA40 2012 REAR MASTER CYLINDER Diagram

#

Description
Price

1

REAR MASTER CYLINDER ASSY

5TG-2580E-20-00

$128.18

2

CYLINDER KIT, MASTER

5TG-W0042-50-00

$66.97

3

NUT, HEXAGON SMALL

95317-08700-00

$6.57

4

JOINT

2YK-27222-00-00

$18.91

5

PIN, BRAKE ROD

3KW-27234-00-00

$6.33

6

BOLT, FLANGE

95022-08025-00

$6.22

7

HOSE, RESERVOIR

4D3-25895-00-00

Unavailable

8

CLIP (7K7)

90467-11044-00

$4.89

9

CLIP (7K7)

90467-11044-00

$4.89

10

TANK, RESERVOIR

5TG-25894-00-00

Unavailable

11

CAP, RESERVOIR

3XP-25852-50-00

$17.15

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$18.32

13

BUSH,DIAPHRAGM

2VN-25855-00-00

$8.88

14

COVER, RESERVOIR TANK

4D3-25888-00-00

Unavailable

15

BOLT

90109-06240-00

$5.26

16

PIN, CLEVIS

90240-08005-00

Unavailable

17

WASHER, PLATE

90201-08066-00

Unavailable

18

PIN, COTTER

91490-16020-00

$5.74

19

BOLT, UNION

90401-10015-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOSE, BRAKE

4D3-25874-00-00

Unavailable

22

BOLT, UNION

90401-10015-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable
