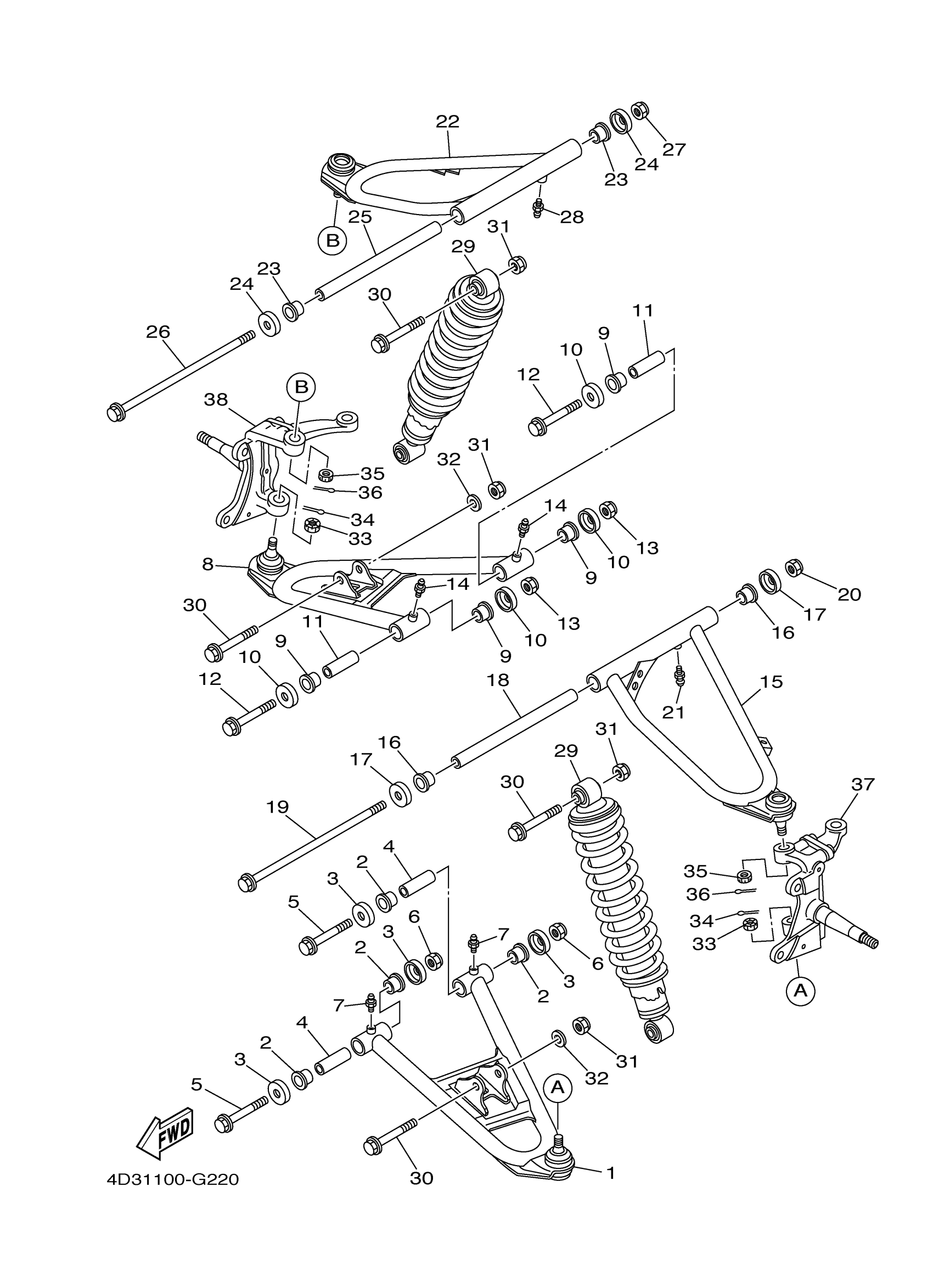

Yamaha YFM125RBW (RAPTOR 125) 2PA40 2012 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM COMP. (LEFT)
4D3-23570-00-33
Unavailable
7
NIPPLE, GREASE
93700-06M03-00
Unavailable
8
FRONT LOWER ARM COMP. (RIGHT)
4D3-23580-00-33
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
FRONT UPPER ARM COMP. (LEFT)
4D3-23540-00-33
Unavailable
18
COLLAR(3GG)
90387-100Y6-00
Unavailable
19
SHAFT, PIVOT
486-22141-01-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
FRONT UPPER ARM COMP. (RIGHT)
4D3-23550-00-33
Unavailable
25
COLLAR(3GG)
90387-100Y6-00
Unavailable
26
SHAFT, PIVOT
486-22141-01-00
Unavailable
28
NIPPLE, GREASE
93700-06M03-00
Unavailable
29
SHOCK ABSORBER ASSY
4D3-23350-21-00
Unavailable
30
BOLT, FLANGE
90105-10131-00
Unavailable
32
WASHER, PLATE
90201-10035-00
Unavailable
33
NUT, CASTLE
90171-10001-00
Unavailable
34
PIN, COTTER
91490-20025-00
Unavailable
35
NUT, CASTLE
90171-10001-00
Unavailable
36
PIN, COTTER
91490-20025-00
Unavailable
37
STEERING KNUCKLE ASSY (LEFT)
3GD-23501-10-00
Unavailable
38
STEERING KNUCKLE ASSY (RIGHT)
3GD-23502-10-00
Unavailable
