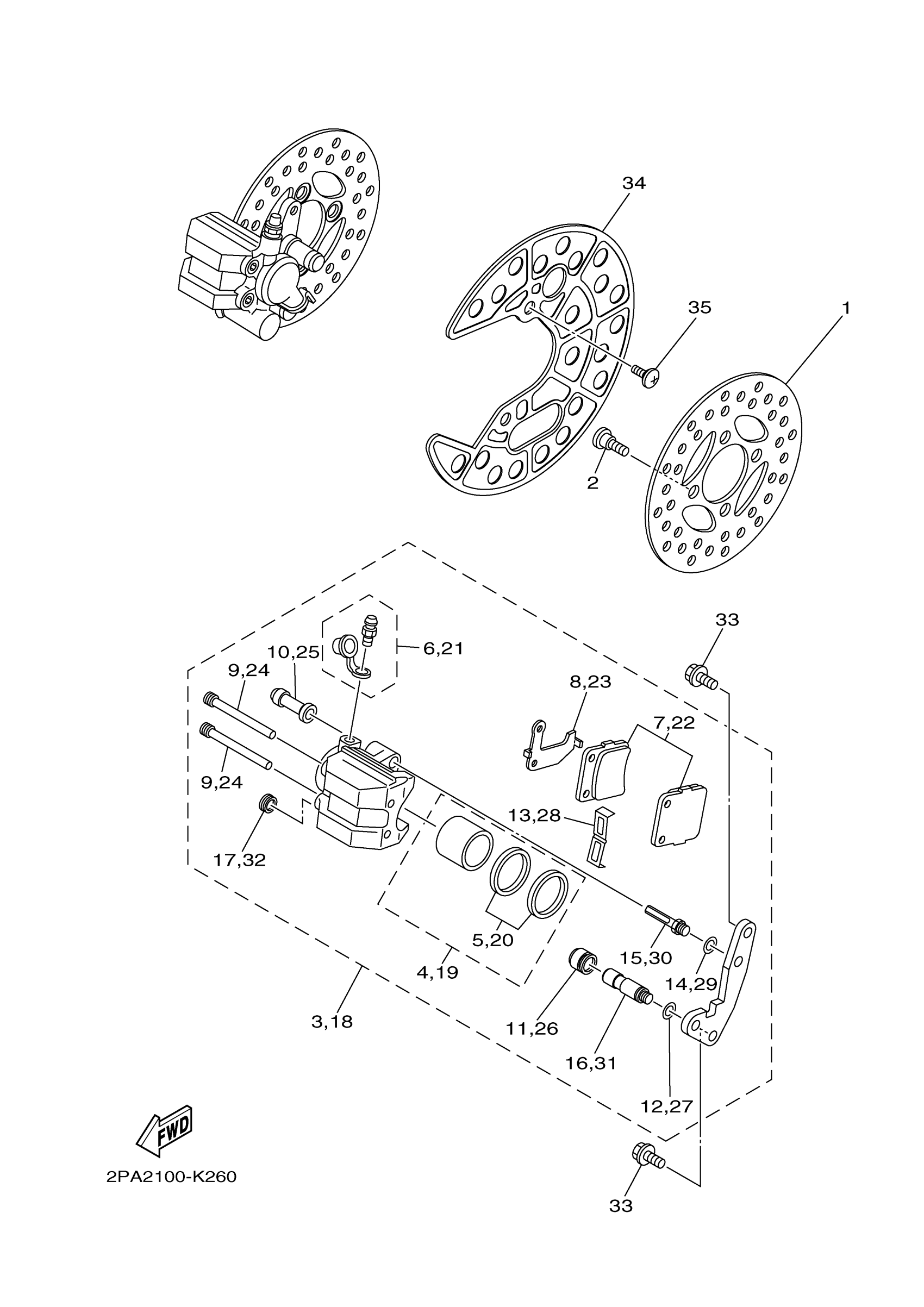

Yamaha YFM125RBW (RAPTOR 125) 2PA40 2012 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

2PA-2582T-00-00

Unavailable

2

BOLT

90109-08087-00

$2.47

3

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$242.40

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

5

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

6

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

7

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

8

SHIM, CALIPER

3GD-25827-00-00

Unavailable

9

PIN, PAD

3GD-25933-00-00

$21.38

10

BOOT 2

1UY-25937-51-00

$11.48

11

BOOT, CALIPER

1UY-25917-51-00

$5.50

12

SPRING, PAD

1UY-25934-51-00

$4.17

13

SUPPORT, PAD

1UY-25919-51-00

$19.98

14

WASHER, SPRING

1UY-25938-51-00

Unavailable

15

BOLT

1UY-25926-51-00

$3.11

16

PIN, SLIDE

3GD-25914-00-00

Unavailable

17

DUST PLUG

3GD-25916-00-00

Unavailable

18

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

Unavailable

19

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

20

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

21

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

22

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

23

SHIM, CALIPER

3GD-25828-00-00

Unavailable

24

PIN, PAD

3GD-25933-00-00

$21.38

25

BOOT 2

1UY-25937-51-00

$11.48

26

BOOT, CALIPER

1UY-25917-51-00

$5.50

27

SPRING, PAD

1UY-25934-51-00

$4.17

28

SUPPORT, PAD

1UY-25919-51-00

$19.98

29

WASHER, SPRING

1UY-25938-51-00

Unavailable

30

BOLT

1UY-25926-51-00

$3.11

31

PIN, SLIDE

3GD-25914-00-00

Unavailable

32

DUST PLUG

3GD-25916-00-00

Unavailable

33

BOLT, FLANGE

90105-08161-00

Unavailable

34

RING, WHEEL 1 (LEFT)

5YT-2514A-00-00

Unavailable

35

SCREW

90149-06117-00

Unavailable
