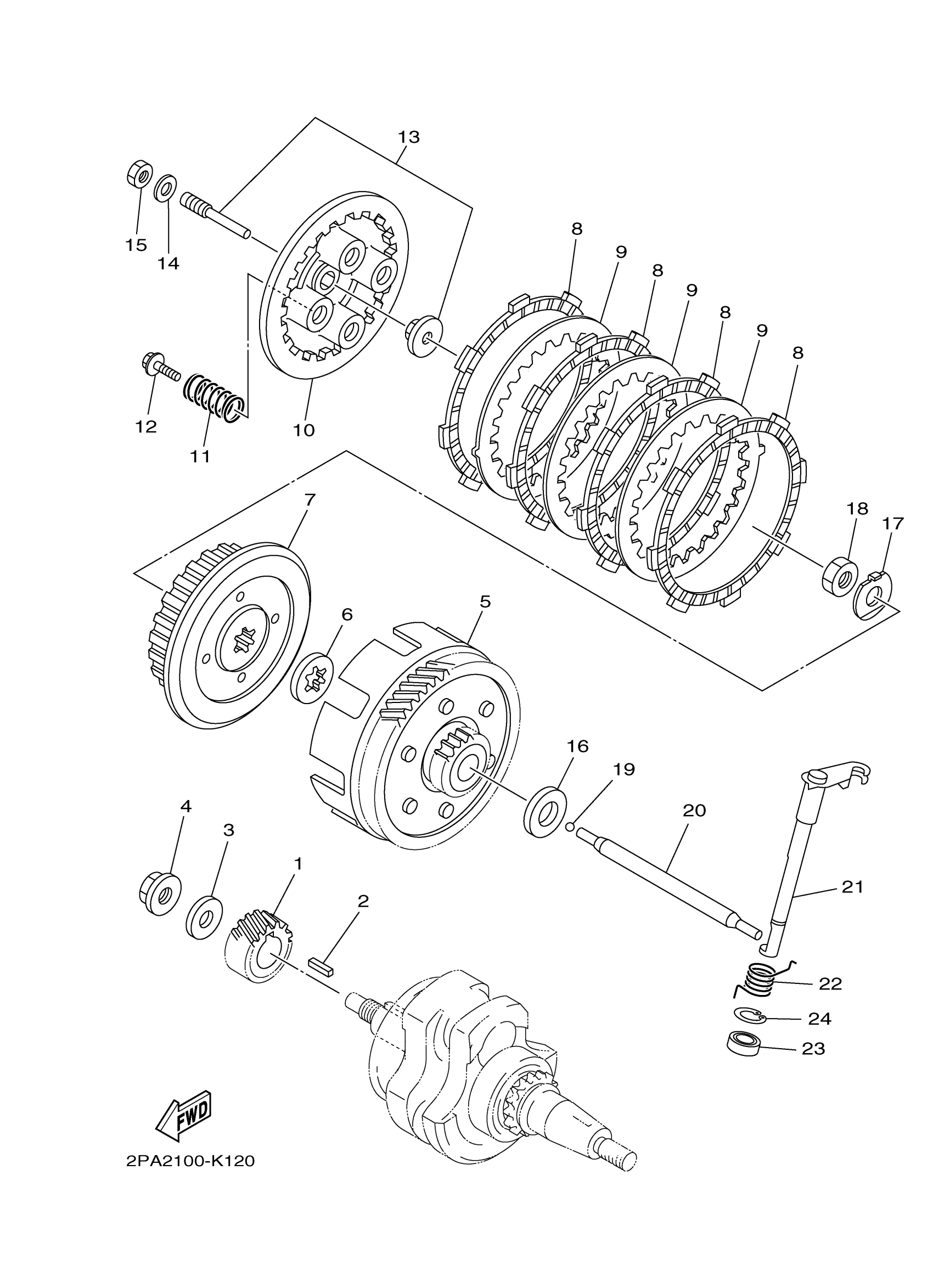

Yamaha YFM125RBW (RAPTOR 125) 2PA40 2012 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5VL-E6111-00-00

$65.99

2

KEY, STRAIGHT

90282-05001-00

$9.49

3

WASHER, PLATE (35T)

90201-122H1-00

$9.49

4

NUT(1EE)

90179-12659-00

$8.49

5

PRIMARY DRIVEN GEAR COMP.

5VL-E6150-00-00

Unavailable

6

PLATE, THRUST 1

5VL-E6154-00-00

$5.49

7

BOSS, CLUTCH

5VL-E6371-10-00

$116.99

8

PLATE, FRICTION

5VL-E6321-10-00

$27.99

9

PLATE, CLUTCH 1

5VL-E6324-00-00

$6.99

10

PLATE, PRESSURE 1

5VL-E6351-00-00

$37.99

11

SPRING, CLUTCH 1

5VL-E6333-10-00

$6.99

12

SCREW, SPRING 1

5VL-E6337-00-00

$4.47

13

PUSH LEVER COMP

5VL-Y1635-10-00

$17.49

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

PLATE, THRUST 2

5VL-E6164-10-00

Unavailable

17

WASHER, LOCK (21T)

90215-12211-00

Unavailable

18

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

19

BALL

93503-16003-00

Unavailable

20

ROD, PUSH

5VL-E6357-01-00

Unavailable

21

PUSH LEVER COMP.

5VL-E6381-02-00

Unavailable

22

SPRING, TORSION

90508-16W13-00

Unavailable

23

OIL SEAL

93102-12812-00

Unavailable

24

CIRCLIP(1EV)

99009-20500-00

Unavailable
