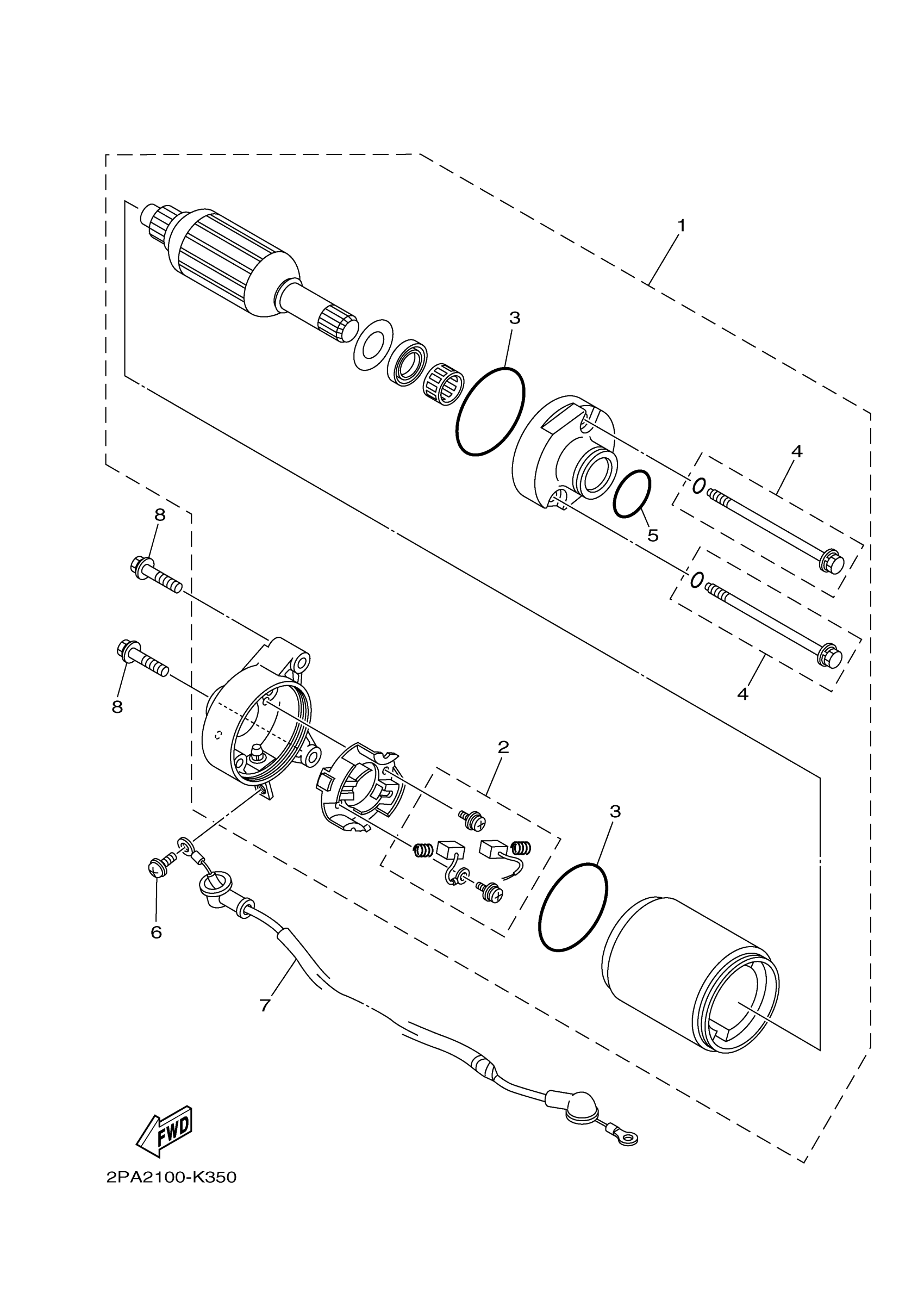

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY

3D9-H1890-11-00

Unavailable

2

BRUSH SET

7CP-H1801-00-00

$21.24

3

O-RING(50M)

93210-55669-00

$6.70

4

BOLT 2

4FP-H1828-00-00

Unavailable

5

O-RING(1RL)

93210-25711-00

$5.59

6

SCREW, PAN HEAD WITH WASHER

97602-05108-00

Unavailable

7

CORD COMP.

2PA-H183G-00-00

$51.94

8

BOLT, FLANGE

95022-06025-00

$1.37
