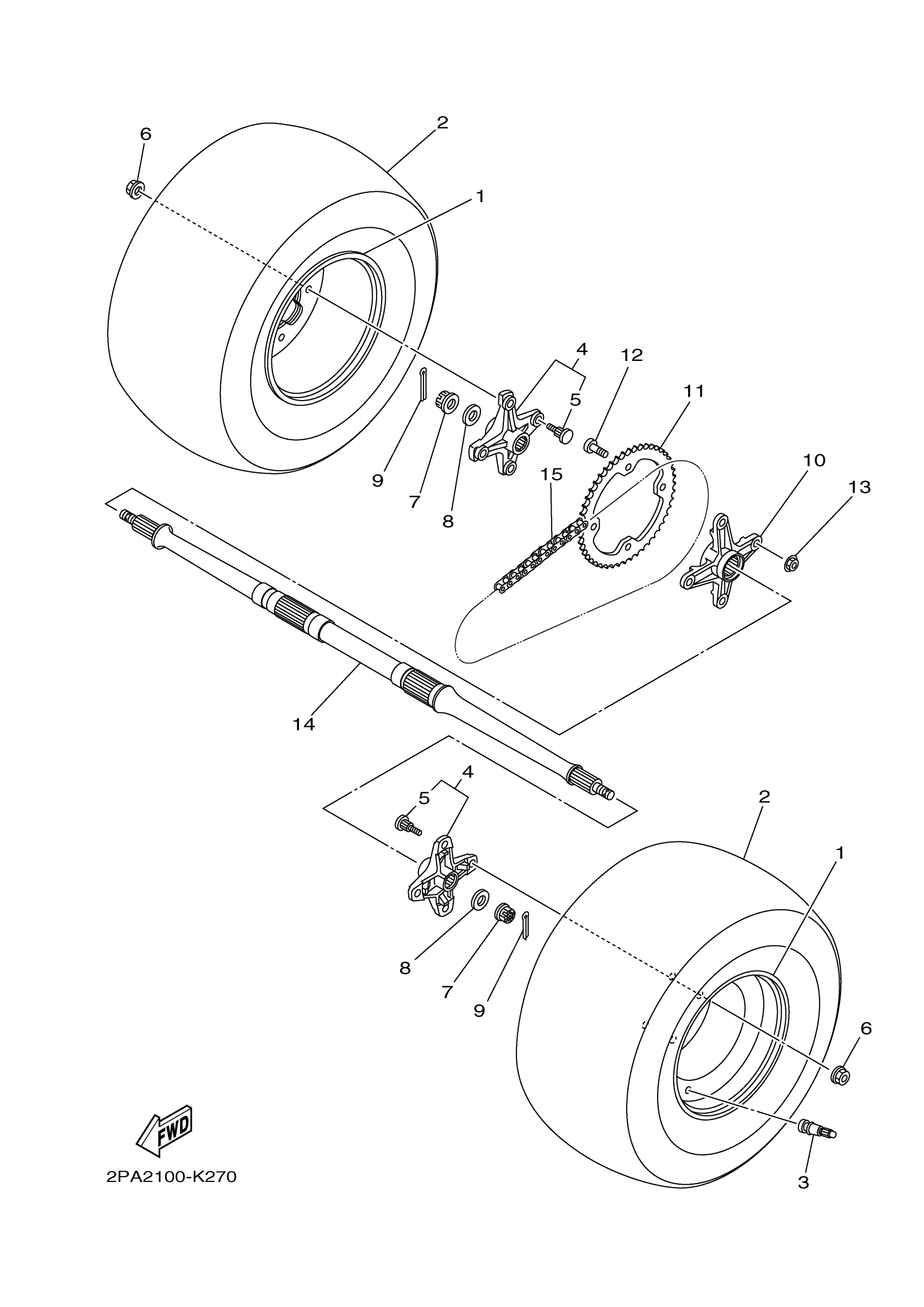

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL COMP.

2PA-25390-00-00

$110.91

2

AT 18 X 9-8 - M940

94109-08008-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$64.97

5

BOLT, SERRATION

90114-10013-00

$4.26

6

NUT, FLANGE(3BM)

95704-10500-00

$1.68

7

NUT, CASTLE

90171-14004-00

$9.15

8

WASHER, PLATE

90201-14021-00

$4.81

9

PIN, COTTER

91490-30030-00

$6.88

10

COLLAR, SPROCKET AXLE

5YT-25386-00-00

$122.26

11

SPROCKET, DRIVEN (48T)

2PA-25448-00-00

$34.08

12

BOLT

90109-10010-00

$5.31

13

NUT, S/L FLANGE

95602-10200-00

$2.14

14

AXLE, WHEEL

4D3-F5381-09-00

Unavailable

15

CHAIN

94582-14114-00

Unavailable
