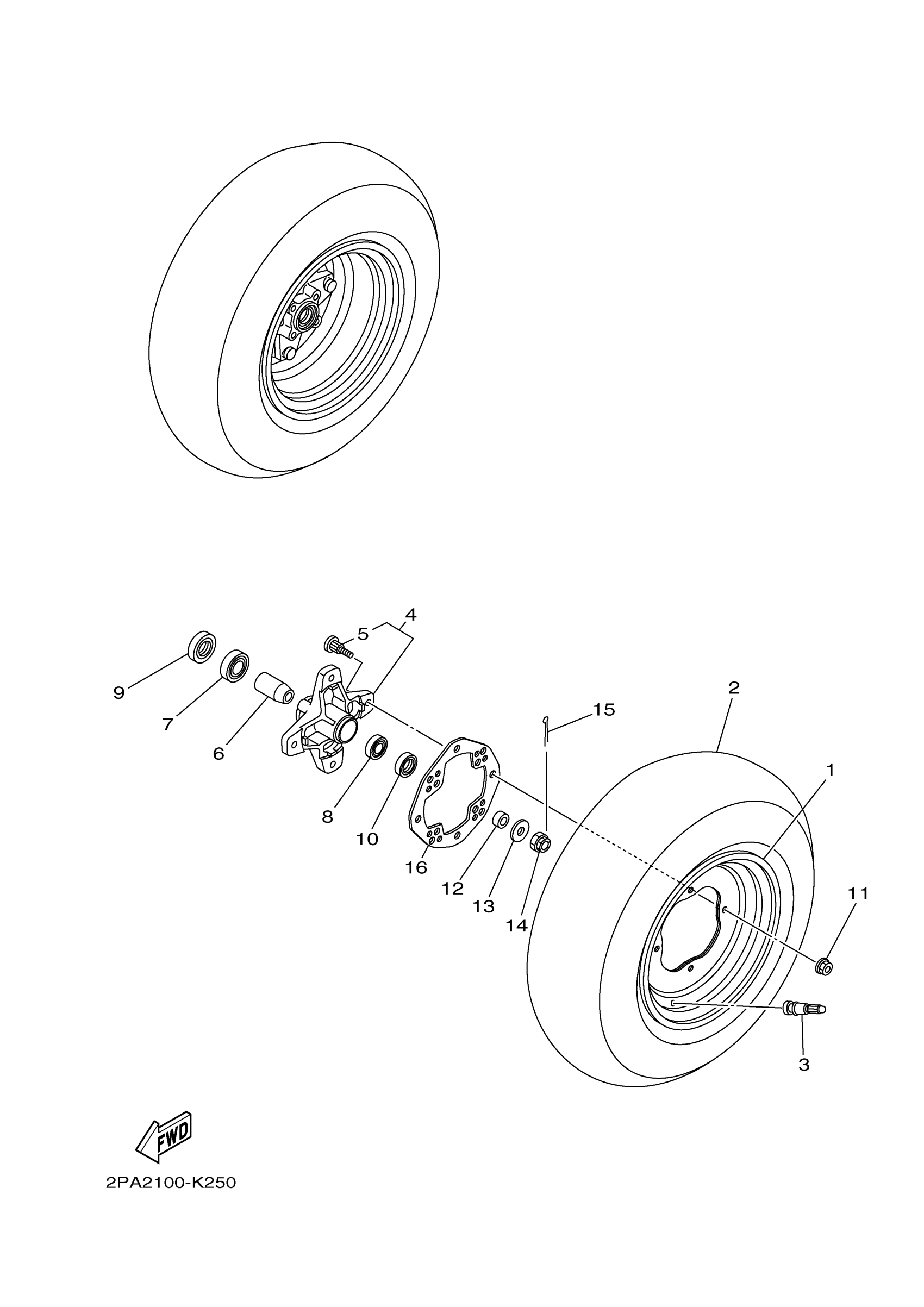

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

2PA-25180-00-00

Unavailable

2

AT 19 X 6 - 10 - M957Y

94106-10009-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

HUB, FRONT

3GD-25111-20-00

Unavailable

5

BOLT, SERRATION

90114-10006-00

$4.81

6

SPACER, BEARING

1UY-25117-00-00

$21.99

7

BEARING

93306-00446-00

$34.51

8

. BEARING

93306-20231-00

$18.41

9

OIL SEAL(1UY)

93105-26026-00

$9.99

10

OIL SEAL (7H5)

93102-22216-00

$9.25

11

NUT, FLANGE(3BM)

95704-10500-00

$1.68

12

COLLAR(1UY)

90387-150R1-00

$5.86

13

WASHER PLATE 248181370000

90201-14220-00

$5.75

14

NUT, CASTLE

90171-14002-00

$7.11

15

PIN, COTTER

91401-30025-00

$6.09

16

COVER, PLATE

1S3-25127-01-00

$6.68
