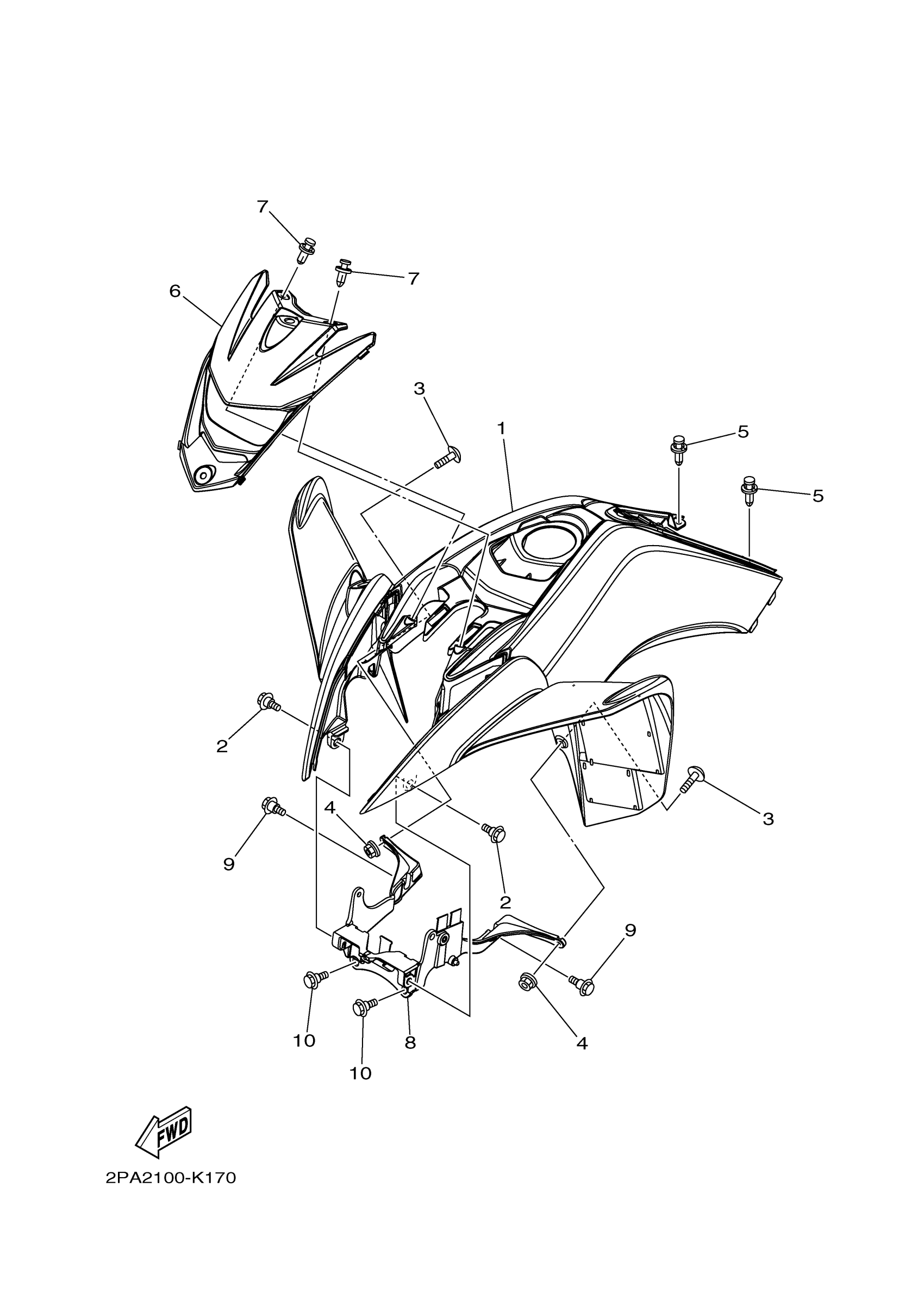

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

2PA-W2151-00-00

$232.33

2

BOLT

90109-06172-00

$2.53

3

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$4.46

4

NUT, U FLANGE

95604-06200-00

$2.19

5

RIVET(4PH)

90269-07077-00

$6.46

6

PANEL, FRONT

2PA-23391-00-00

$60.87

7

RIVET(4PH)

90269-07077-00

$6.46

8

STAY 2

2PA-2137G-00-00

$46.01

9

BOLT

90109-06214-00

$5.34

10

BOLT

90109-06172-00

$2.53
