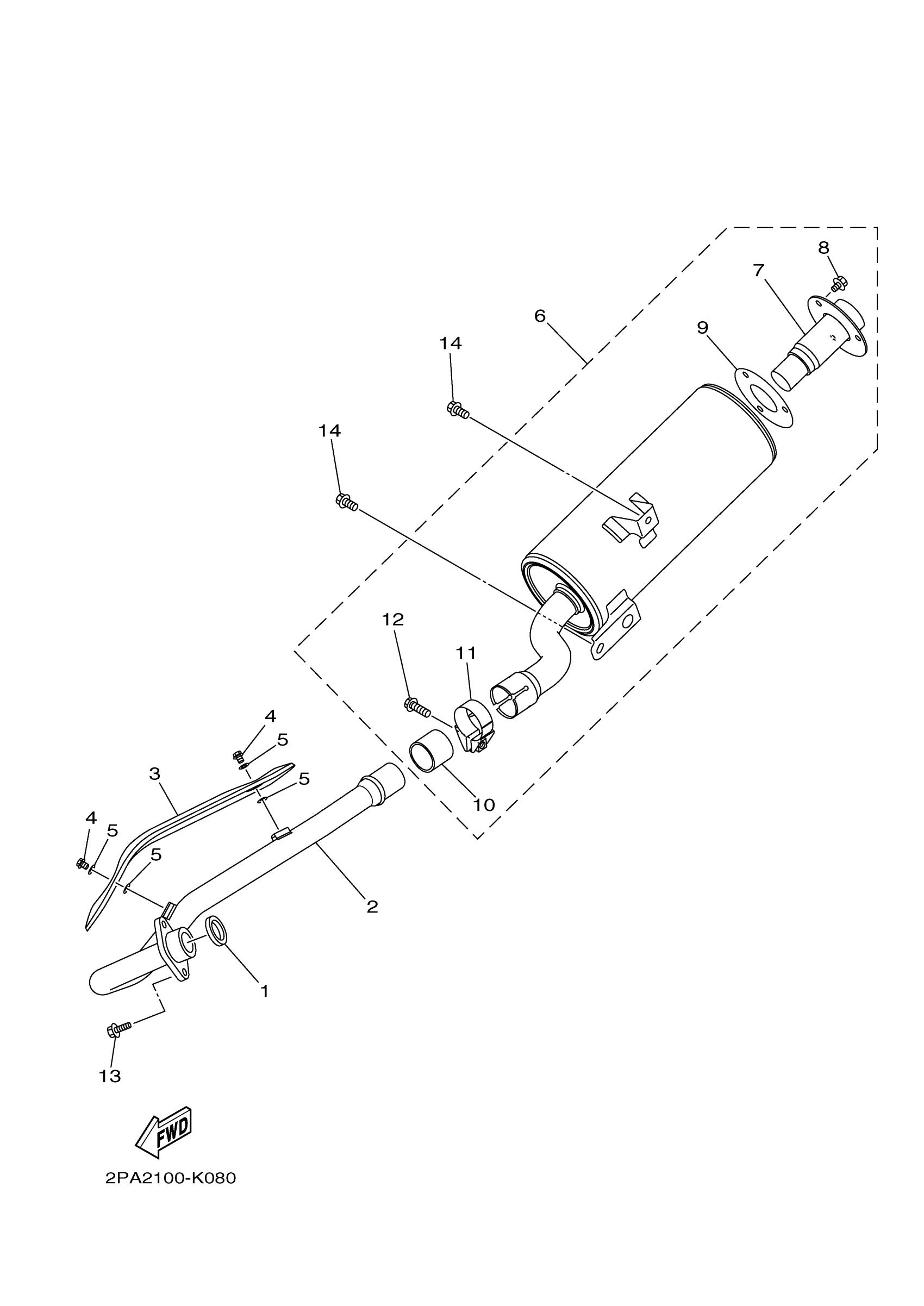

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 EXHAUST Diagram

GASKET, EXHAUST PIPE

2PA-14613-00-00

$9.99

PIPE, EXHAUST 1

2PA-14611-00-00

Unavailable

PROTECTOR, EXHAUST PIPE

4D3-14628-00-00

Unavailable

SCREW, BIND(1JK)

98980-06010-00

$9.49

WASHER, PLATE

90201-05017-00

$8.49

MUFFLER ASSY 1

2PA-14710-00-00

Unavailable

PIPE, OUTLET

2PA-14752-00-00

$56.99

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

GASKET, SILENCER

4D3-14755-00-00

$14.49

GASKET, MUFFLER

3YF-14714-00-00

$36.99

BAND, SILENCER

2PA-14788-00-00

Unavailable

BOLT, FLANGE(4GY)

95024-08025-00

$8.49

BOLT, FLANGE

95817-06020-00

$3.81

BOLT, FLANGE(JN5)

95817-08016-00

$5.49
