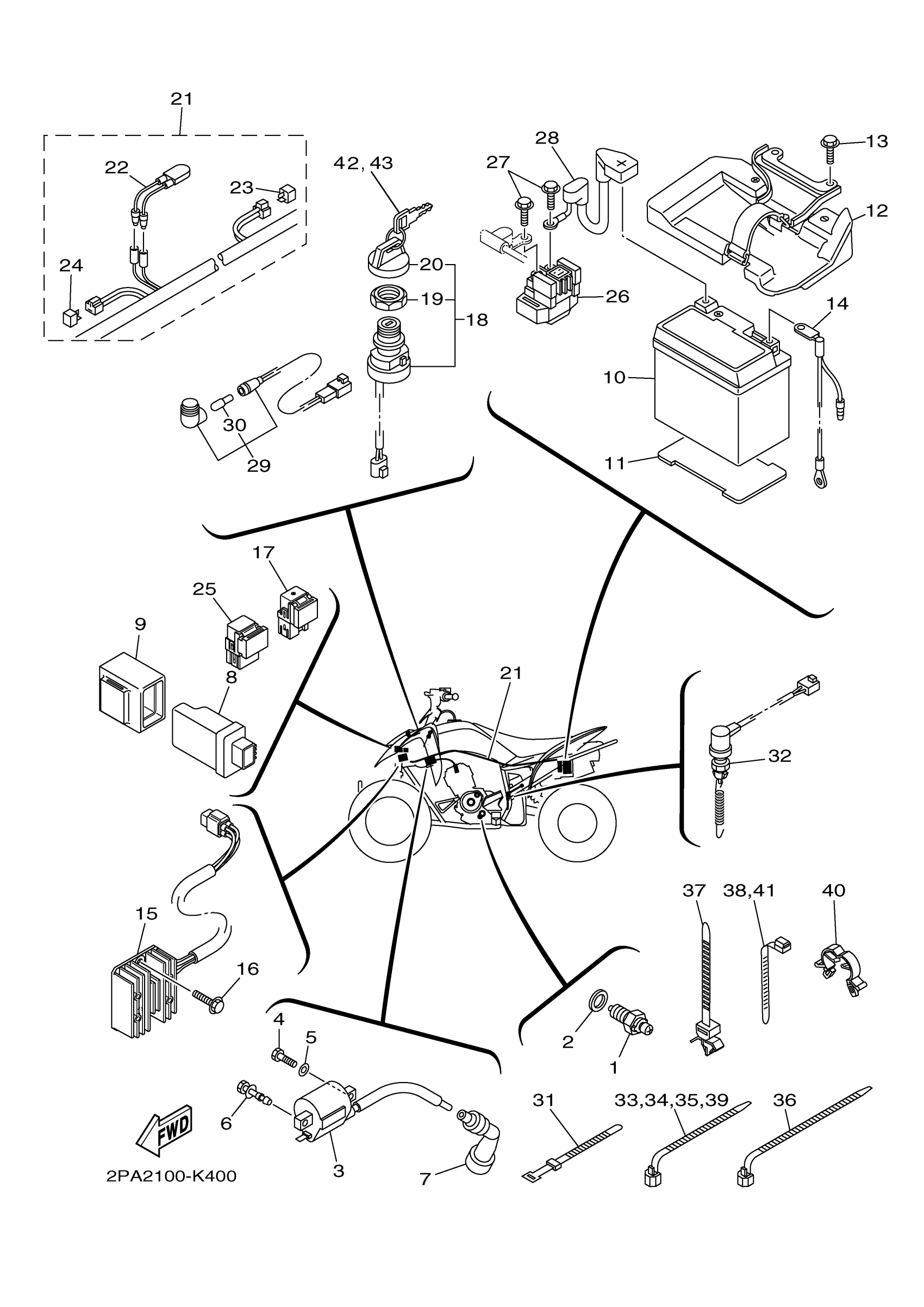

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 ELECTRICAL 1 Diagram
#
2
GASKET
90430-10819-00
Unavailable
7
PLUG CAP ASSY
2PA-82370-00-00
Unavailable
9
BAND
5VL-H5546-00-00
Unavailable
10
YTZ7S HE YUASA BATTERY - FA
YTZ-7SHE0-00-00
Unavailable
15
RECTIFIER & REGULATOR ASSY
2PA-81960-00-00
Unavailable
16
BOLT, FLANGE
95817-06014-00
Unavailable
17
RELAY ASSY (8FP-01)
8FP-81950-01-00
Unavailable
18
MAIN SWITCH ASSY
5LP-82510-01-00
Unavailable
19
NUT, MAIN SWITCH
3HN-82569-00-00
Unavailable
20
CAP, KEY
3HN-82579-00-00
Unavailable
21
WIRE HARNESS ASSY
2PA-82590-00-00
Unavailable
22
THERMO SWITCH ASSY
4D3-82560-00-00
Unavailable
23
DIODE ASSY
4WA-81980-00-00
Unavailable
24
DIODE ASSY
3WP-81980-00-00
Unavailable
25
RELAY ASSY
5DM-81950-01-00
Unavailable
26
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
Unavailable
27
BOLT, FLANGE
95022-06008-00
Unavailable
28
WIRE, PLUS LEAD
4D3-82115-00-00
Unavailable
29
PILOT LIGHT ASSY
4D3-83530-00-00
Unavailable
30
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
31
BAND, SWITCH CORD
437-83936-01-00
Unavailable
32
STOP SWITCH ASSY
4D3-82530-00-00
Unavailable
33
CLAMP(4FM)
90464-15195-00
Unavailable
34
CLAMP(4FM)
90464-15195-00
Unavailable
35
CLAMP(4FM)
90464-15195-00
Unavailable
36
CLAMP(4FM)
90464-15195-00
Unavailable
37
CLAMP(2TV)
90464-10112-00
Unavailable
38
CLAMP
90464-13077-00
Unavailable
39
CLAMP(4FM)
90464-15195-00
Unavailable
40
CLAMP(4NX)
90464-23239-00
Unavailable
41
CLAMP
90464-13077-00
Unavailable
42
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
43
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
