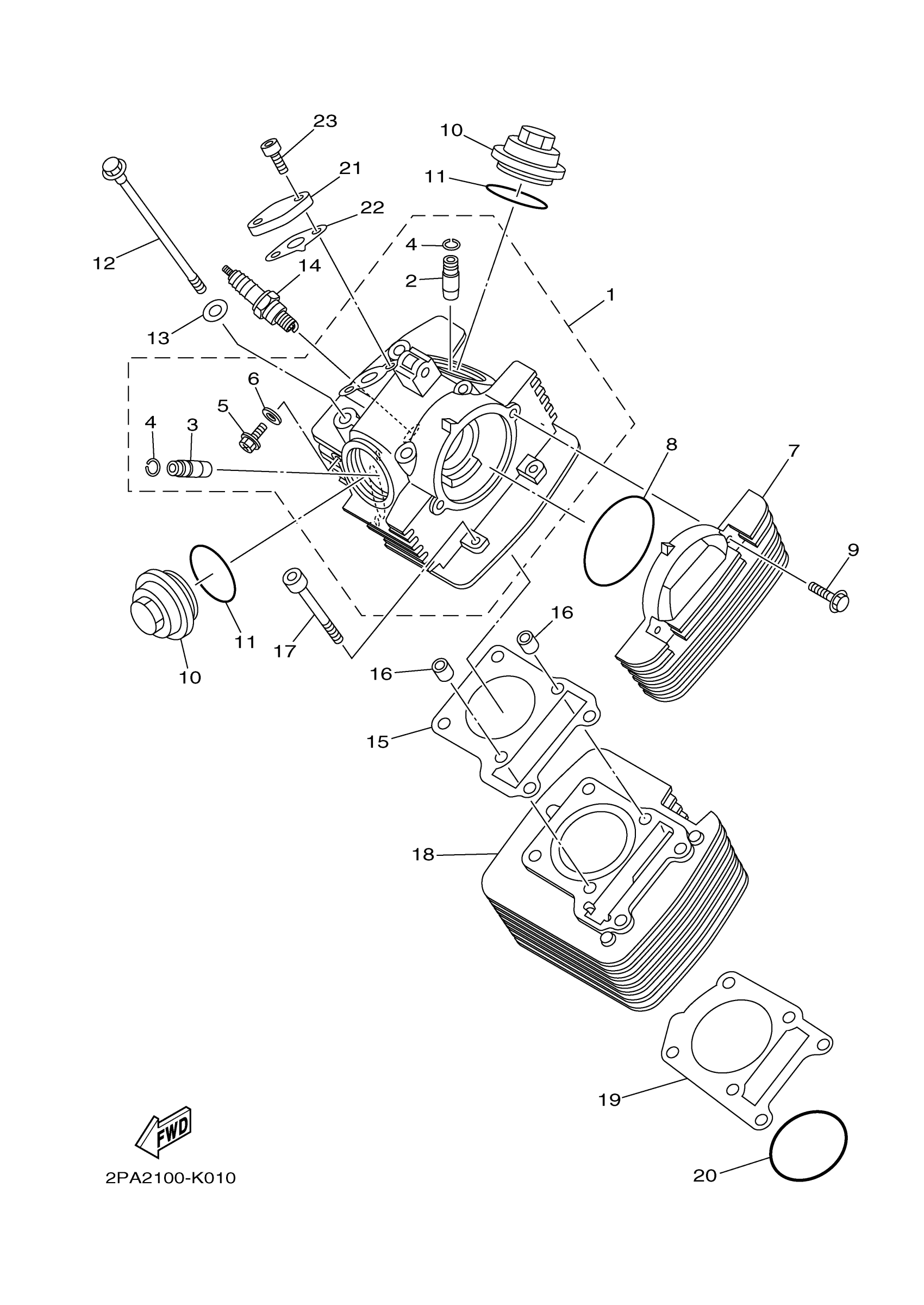

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5VL-E1111-11-00

Unavailable

2

GUIDE, INTAKE VALVE

2UJ-11133-10-00

$51.99

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$88.99

4

CIRCLIP (22F)

93440-10109-00

$8.49

5

SCREW, HEXAGON

90153-06803-00

$0.43

6

GASKET 256113960000

90430-06014-00

Unavailable

7

COVER, CYLINDER HE

5VL-E1185-40-00

$49.99

8

O-RING

93210-79802-00

$8.49

9

BOLT, FLANGE

95022-06020-00

$3.62

10

COVER, CYLINDER HE

5VL-E1186-10-00

Unavailable

11

O-RING(55X)

93210-44704-00

$7.49

12

BOLT, WASHER BASED

90105-08724-00

$11.49

13

WASHER, PLATE

90201-080L7-00

$4.82

14

CR6HS-A NGK SPLUG 4PK

CR6-HSA00-00-00

Unavailable

15

GASKET, CYLINDER HEAD 1

5VL-E1181-00-00

$17.49

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

BOLT, SOCKET

91314-06090-00

Unavailable

18

CYLINDER

5VL-E1310-10-00

Unavailable

19

GASKET, CYLINDER

5VL-E1351-10-00

Unavailable

20

O-RING

93210-57634-00

Unavailable

21

PLATE 3

3D9-E113F-00-00

Unavailable

22

GASKET

5VL-E4815-00-00

Unavailable

23

BOLT(3MA)

91312-06016-00

Unavailable
