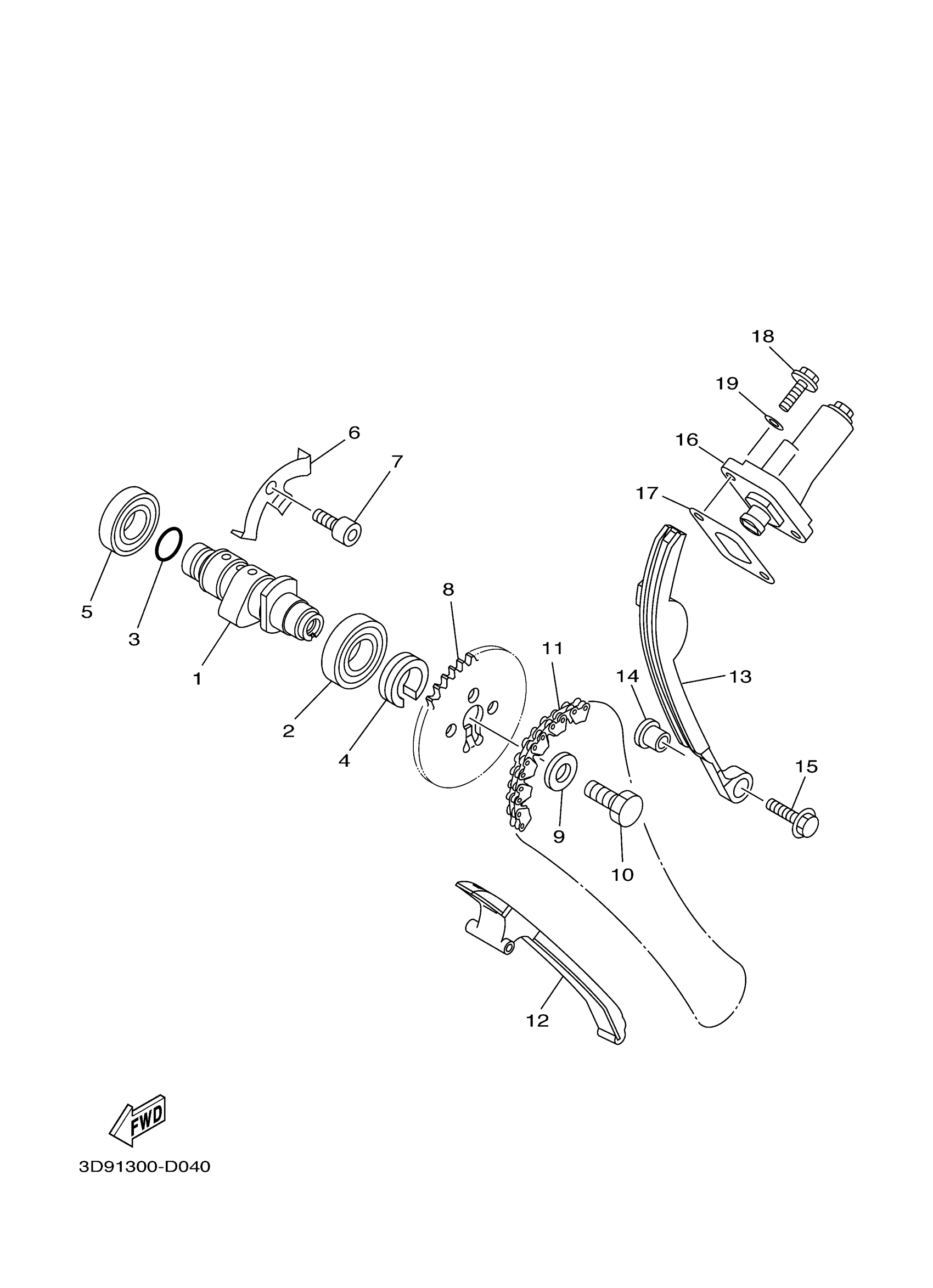

Yamaha YFM125RAW (RAPTOR 125) 2PA10 2011 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5VL-E2171-10-00

$116.99

2

BEARING

93306-003X6-00

$32.99

3

O-RING

93210-108B1-00

$1.38

4

COLLAR

90387-16804-00

$8.49

5

BEARING(4ES)

93306-00210-00

$29.99

6

PLATE

5VL-E111F-00-00

$2.18

7

BOLT,SOCKET

91317-06012-00

$8.49

8

SPROCKET

5VL-E2176-10-00

$46.99

9

WASHER (853)

90201-08326-00

$8.49

10

BOLT

90101-08055-00

$7.49

11

CHAIN

94568-A4090-00

$65.99

12

GUIDE STOPPER 1

5YY-E2231-00-00

$16.49

13

GUIDE STOPPER 2

5YY-E2241-00-00

$42.99

14

COLLAR

5VL-E5598-00-00

$2.18

15

BOLT, FLANGE

95817-06020-00

$3.81

16

TENSIONER ASSY, CAM CHAIN

5VL-12210-10-00

Unavailable

17

GASKET, TENSIONER C

5VL-E2213-10-00

Unavailable

18

BOLT, FLANGE

95022-06016-00

Unavailable

19

GASKET 256113960000

90430-06014-00

Unavailable
