Description

Price

1

JOINT, CARBURETOR 1

3FA-13586-00-00

$77.99

2

O-RING (30X)

93210-30611-00

$13.49

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

NUT, FLANGE

95702-06500-00

$2.39

5

CAP, CLEANER CASE 1

3FA-14412-02-00

Unavailable

6

SEAL

1VJ-14462-00-00

$18.49

7

PLATE, ELEMENT

3FA-14472-00-00

$28.99

8

CLIP, CAP FITTING

3FA-14424-00-00

$7.99

9

SEAL

59V-14457-00-00

$6.99

10

CLIP

90467-220A1-00

$5.60

11

SCREW, WITH WASHER

90159-05045-00

$7.49

12

HOSE CLAMP ASSY(10F)

90450-45075-00

$4.29

13

ELEMENT, AIR CLEANER

2XJ-14451-01-00

$33.99

14

GUIDE

2XJ-14458-00-00

$31.99

15

WASHER (4H7)

90209-06096-00

$9.49

16

SCREW, PAN

98507-06060-00

Unavailable

17

DUCT

3FA-14437-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-58002-00

Unavailable

19

JOINT, AIR CLEANER 1

3FA-14453-00-00

Unavailable

20

HOSE CLAMP ASSY(10F)

90450-45075-00

$4.29

21

PIPE

2NL-14419-00-00

Unavailable

22

PLATE, EPA OFFROAD ATV 1

1C5-2177C-20-00

Unavailable

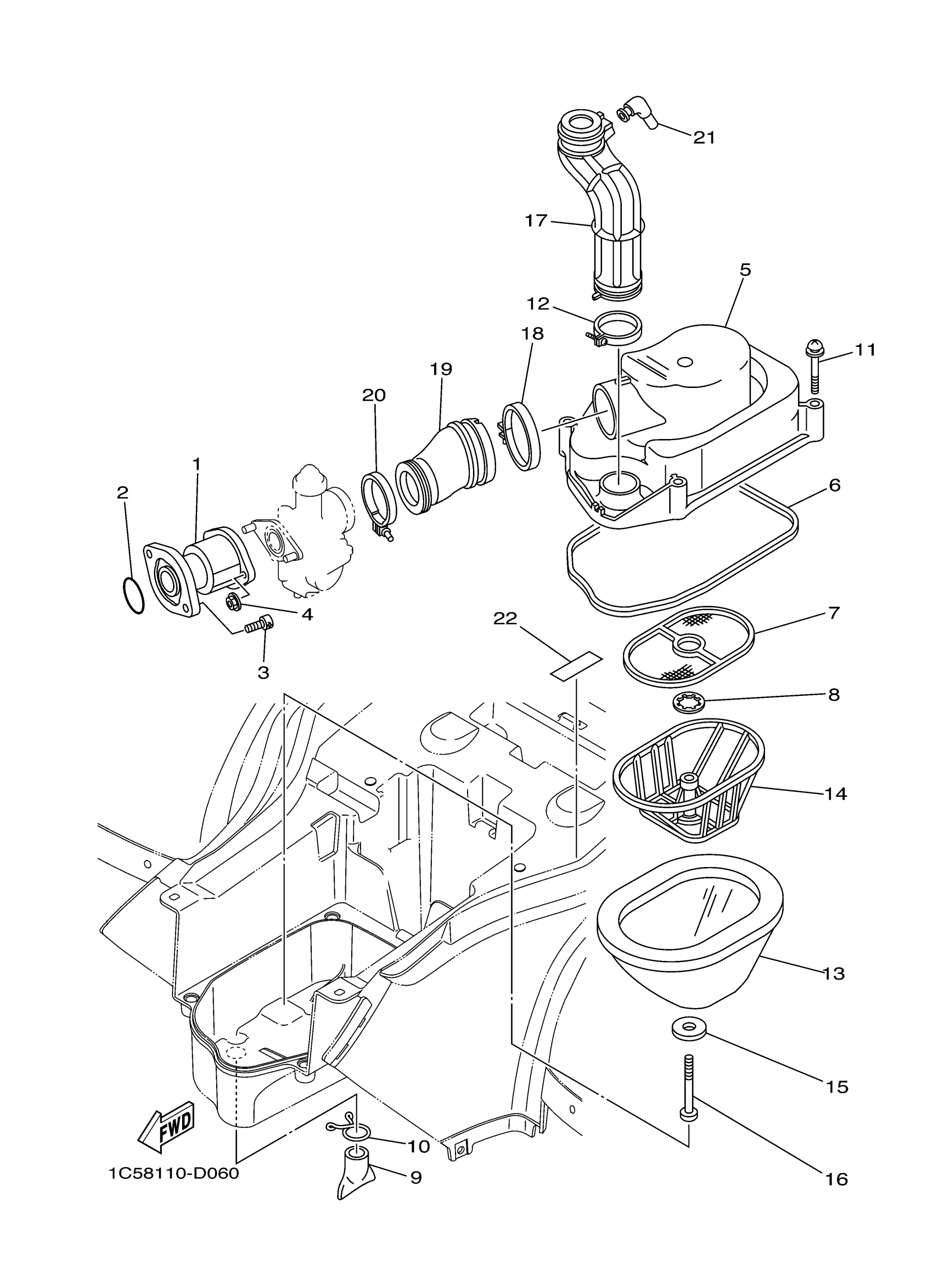

Yamaha YFM125GYGR (GRIZZLY 125) 1C5M0 2009 INTAKE Diagram

JOINT, CARBURETOR 1

O-RING (30X)

BOLT,SOCKET HEAD

NUT, FLANGE

CAP, CLEANER CASE 1

SEAL

PLATE, ELEMENT

CLIP, CAP FITTING

SEAL

CLIP

SCREW, WITH WASHER

HOSE CLAMP ASSY(10F)

ELEMENT, AIR CLEANER

GUIDE

WASHER (4H7)

SCREW, PAN

DUCT

HOSE CLAMP ASSY

JOINT, AIR CLEANER 1

HOSE CLAMP ASSY(10F)

PIPE

PLATE, EPA OFFROAD ATV 1
