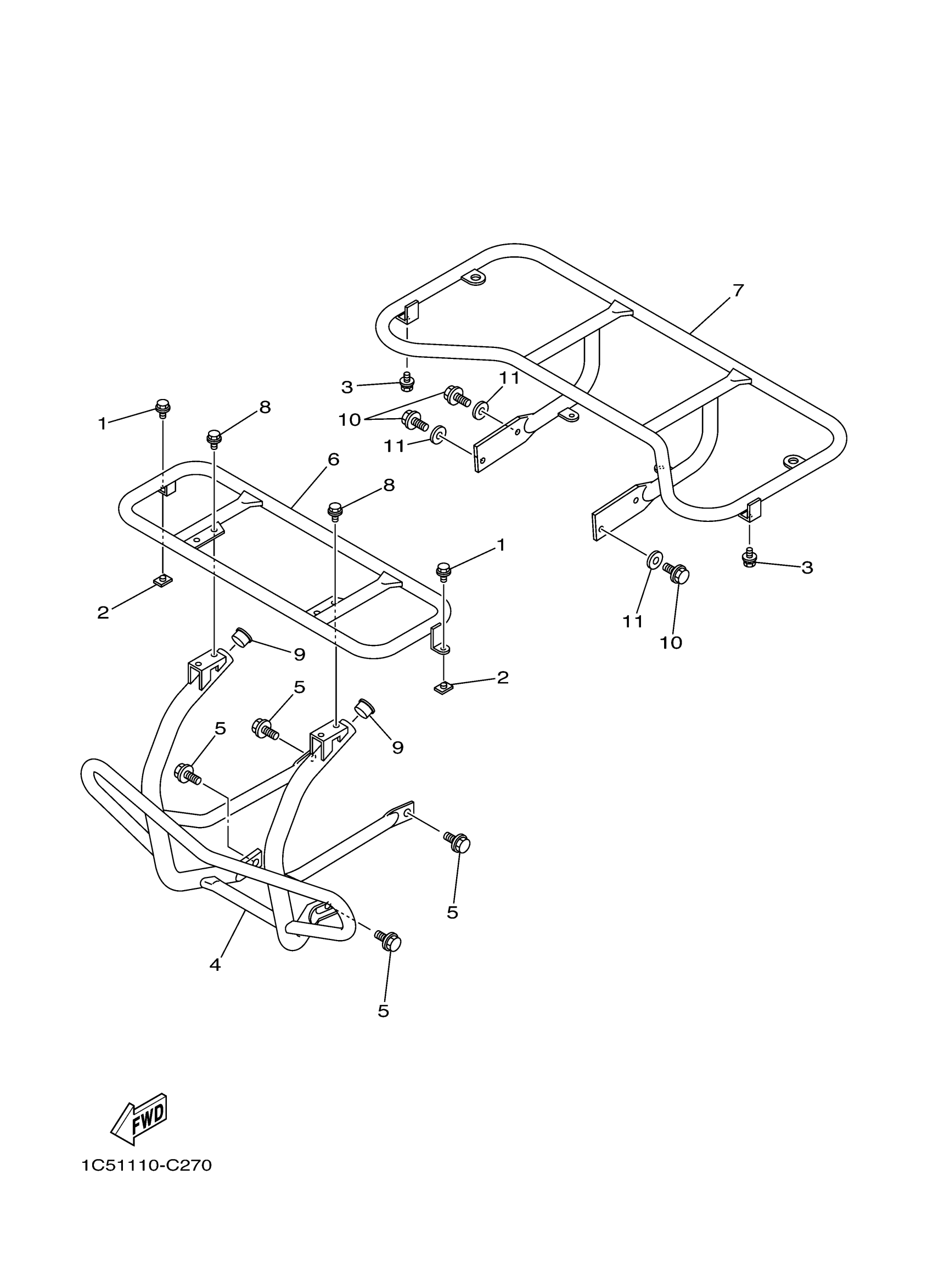

Yamaha YFM125GYGR (GRIZZLY 125) 1C5M0 2009 GUARD Diagram

#

Description
Price

1

BOLT, FLANGE

95812-06010-00

$2.71

2

NUT

90179-06055-00

$4.41

3

BOLT, WITH WASHER

90119-06152-00

$2.56

4

BAR, CARRY FRONT

1C5-2845N-00-00

Unavailable

5

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

6

CARRIER, FRONT

1C5-24841-00-00

$108.77

7

CARRIER, REAR

1C5-24842-00-00

Unavailable

8

BOLT, FLANGE

95812-06010-00

$2.71

9

PLUG(1FN)

90338-23172-00

$8.92

10

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

11

WASHER, PLATE

90201-08043-00

$5.39
