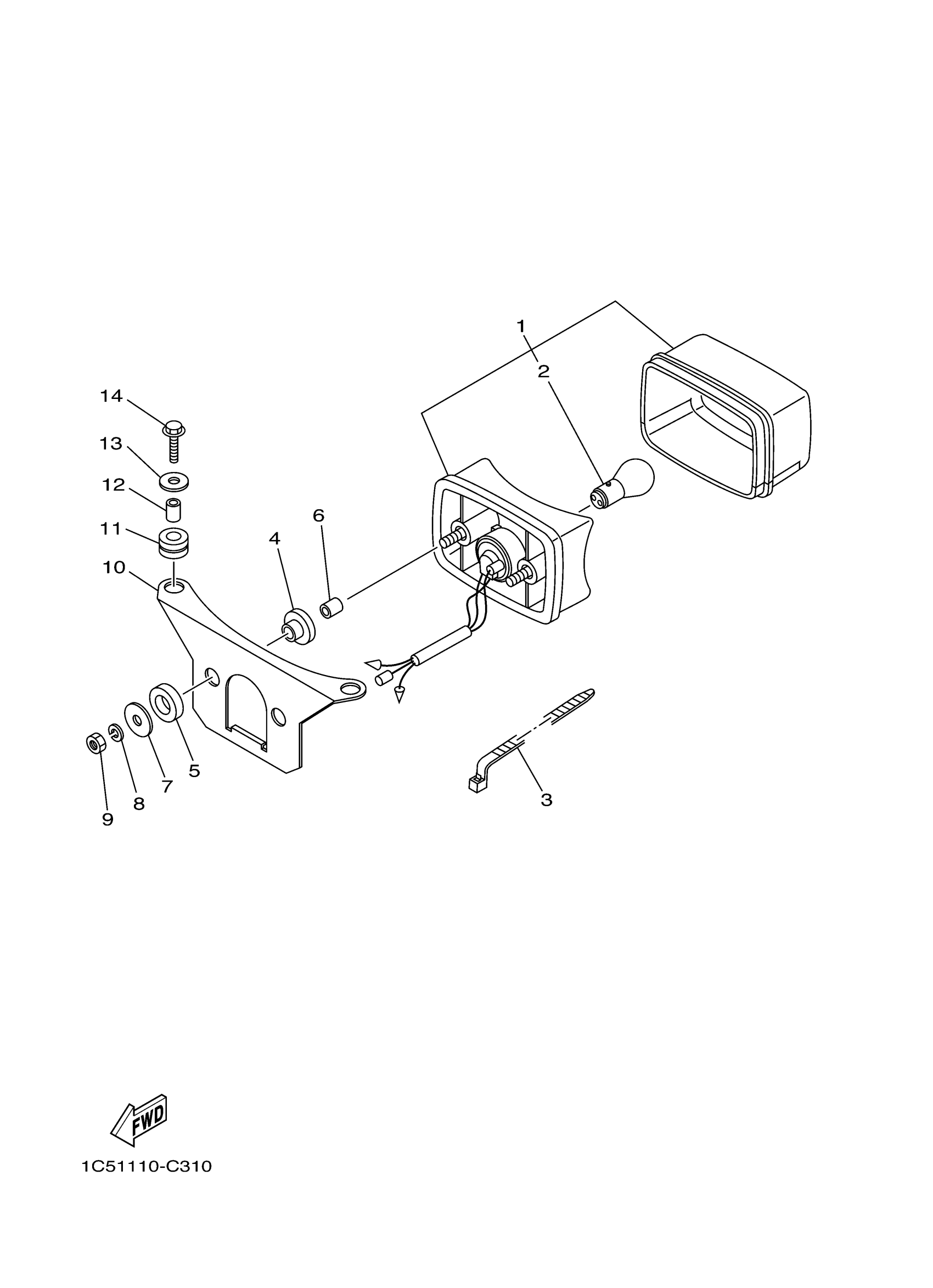

Yamaha YFM125GXL (GRIZZLY 125) 1C5H 2008 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

3FA-84710-01-00

$40.00

2

BULB

1A2-84714-50-00

$11.36

3

CLAMP(4FM)

90464-15195-00

$2.57

4

GROMMET (462)

90480-14088-00

$3.87

5

WASHER, PLATE (462)

90202-14077-00

$3.32

6

COLLAR

90387-06201-00

$3.21

7

WASHER, PLATE

90201-06097-00

$6.17

8

WASHER, SPRING

92995-06100-00

$2.95

9

NUT, HEXAGON

95380-06600-00

$4.11

10

BRACKET, TAILLIGHT

3FA-84702-10-00

$28.57

11

GROMET (3X3)

90480-14229-00

$5.75

12

COLLAR (J10)

90387-06026-00

$6.45

13

WASHER, PLATE

90201-06033-00

$2.56

14

BOLT, FLANGE

95822-06025-00

$1.37
